BNC7150DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BNC7150DC

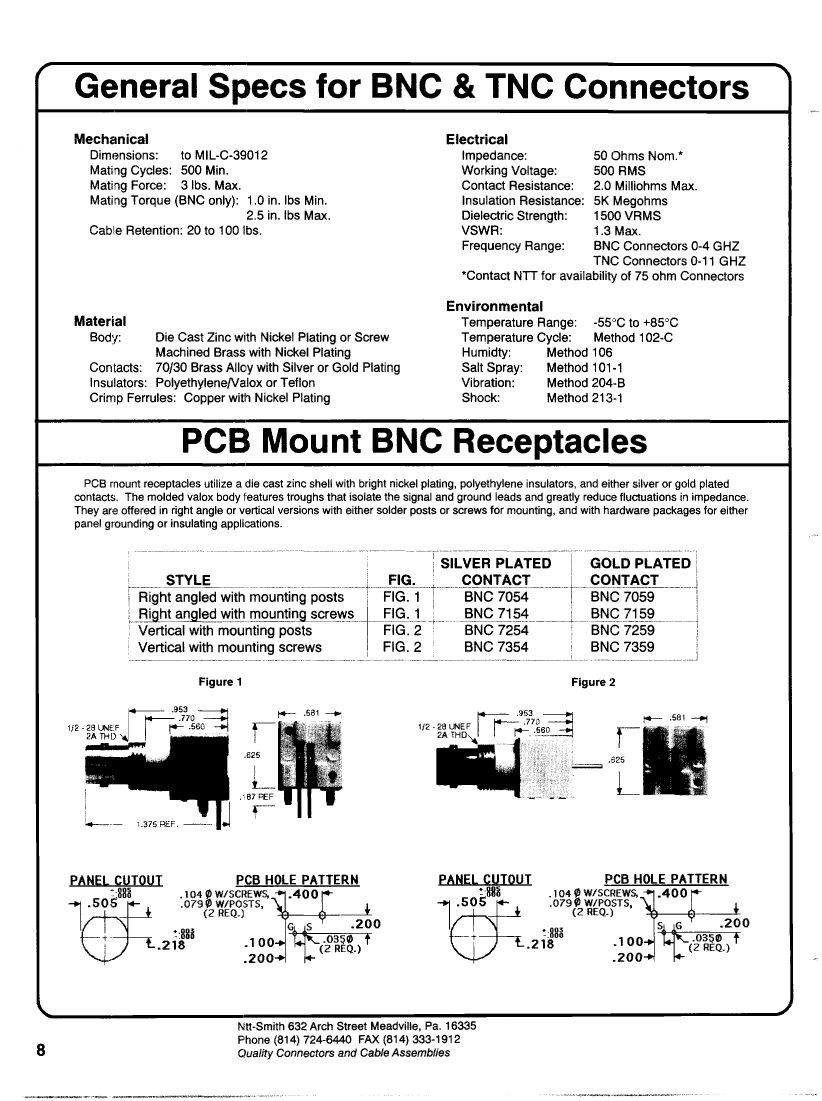

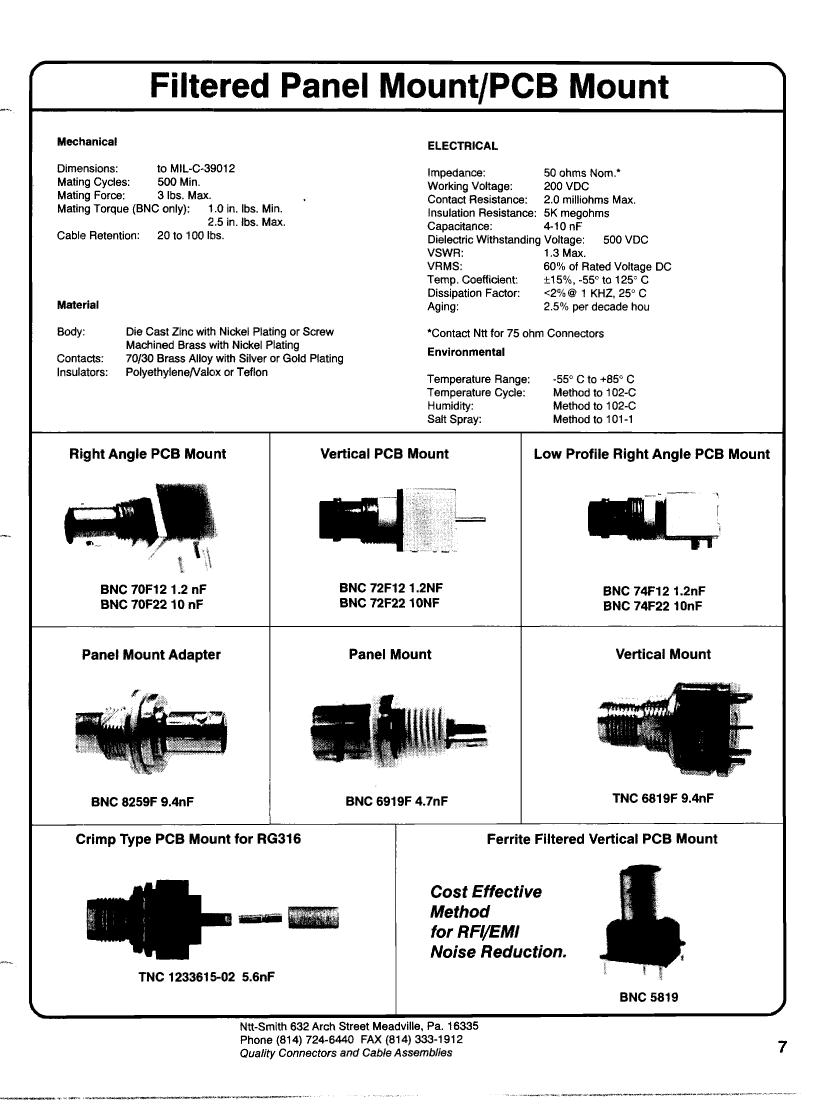

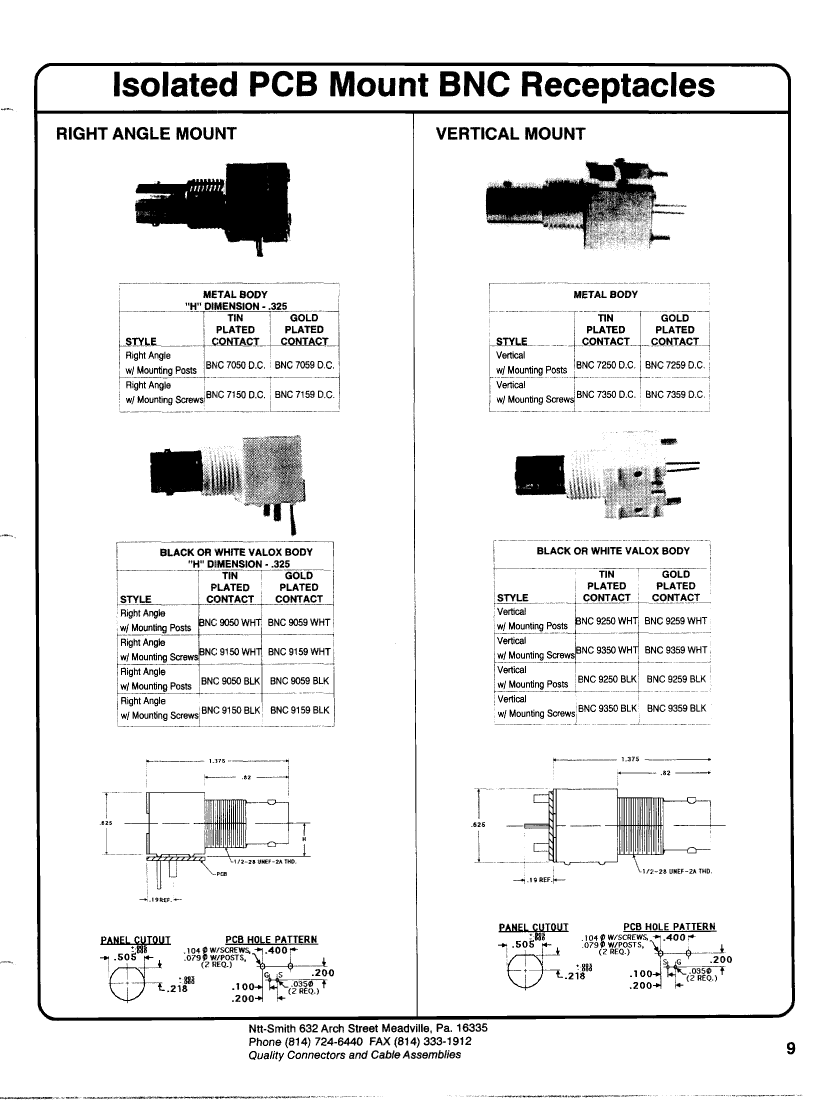

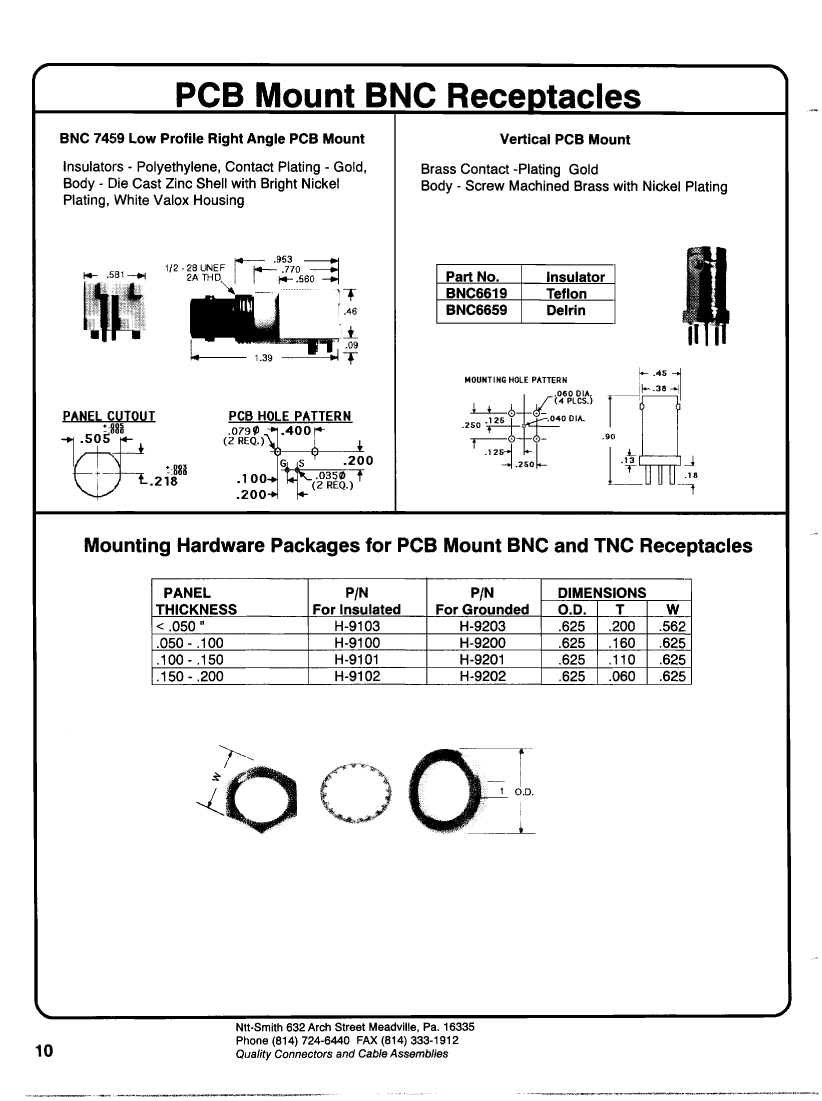

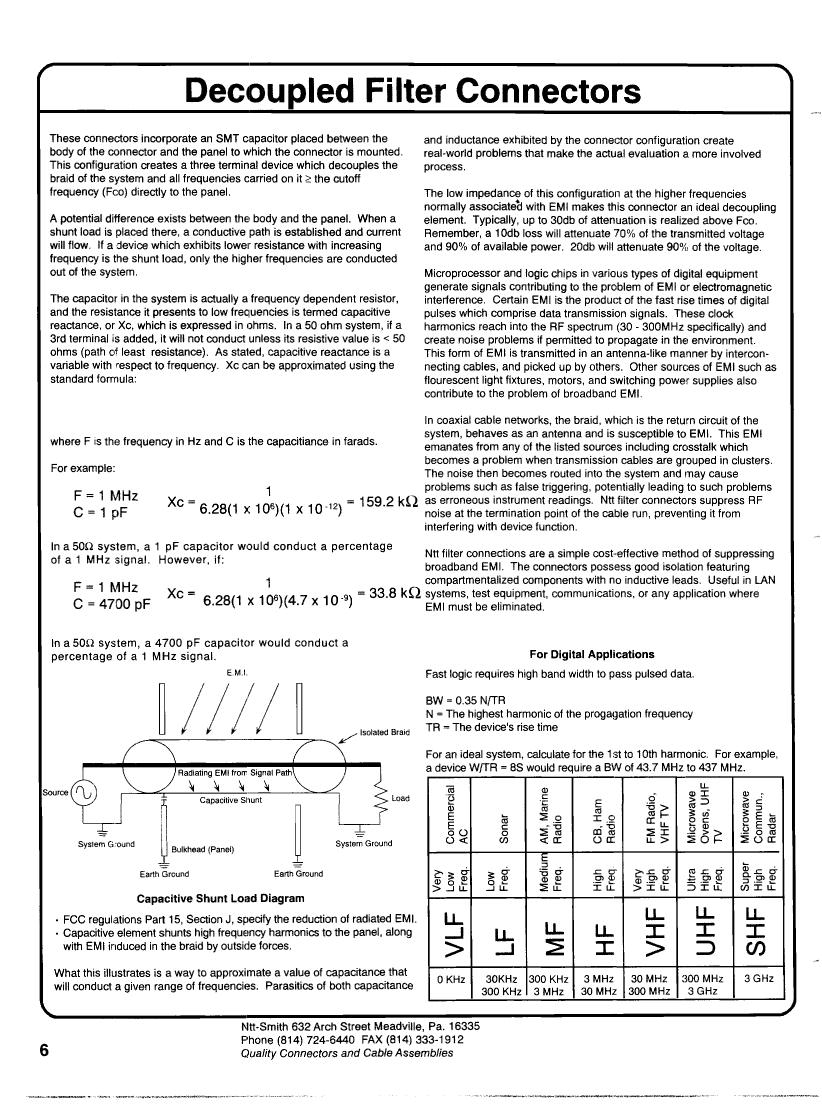

BNC7150DC: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size633KB，9 Pages; ManufacturerAbbatron

Download Datasheet Parametric Compare View All

BNC7150DC Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle

BNC7150DC Parametric

Parameter Name	Attribute value
Maker	Abbatron
Reach Compliance Code	unknown
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	BNC
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

BNC7150DC Related Products

	BNC7150DC	BNC7050DC	BNC7059DC	BNC7159DC	BNC7250DC	BNC7259DC	BNC7350DC	BNC7359DC
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle
Maker	Abbatron	Abbatron	Abbatron	Abbatron	Abbatron	Abbatron	Abbatron	Abbatron
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	BNC	BNC	BNC	BNC	BNC	BNC	BNC	BNC
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	YES	YES	YES	YES	YES
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
