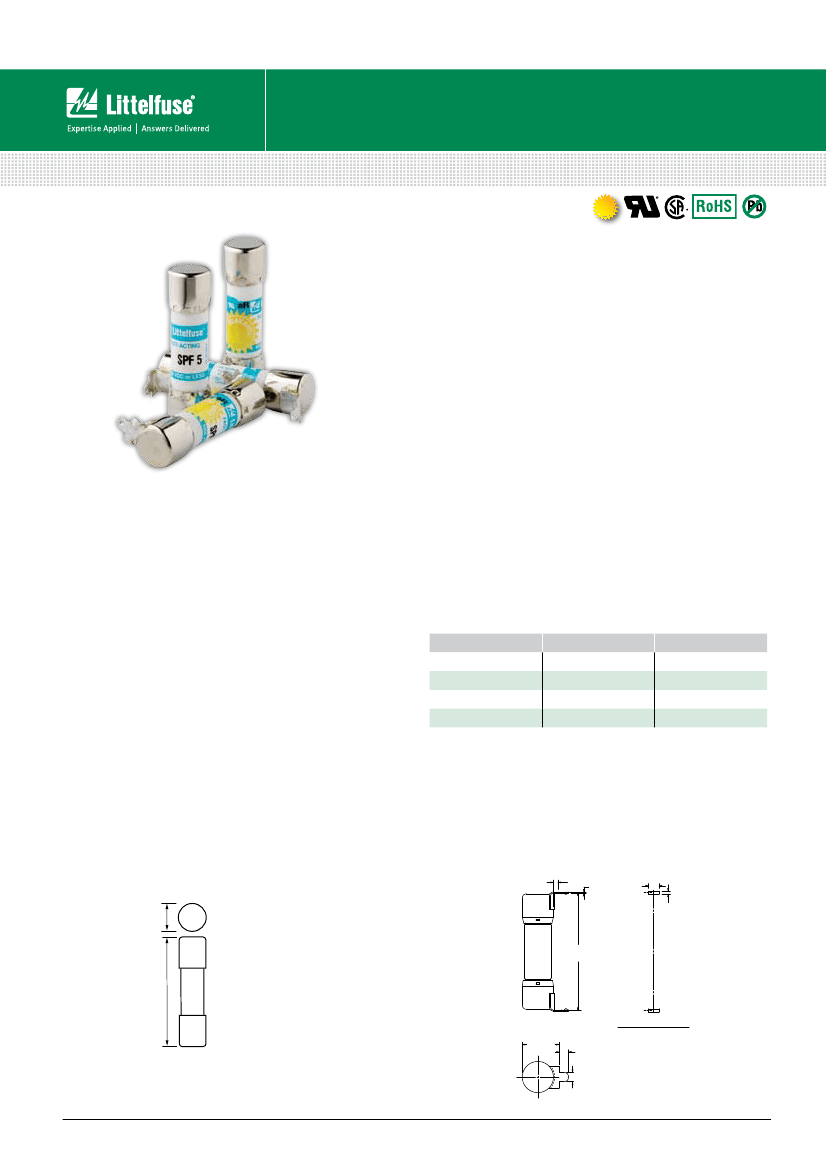

Solar-Rated 10x38 mm Midget Fuse
SPF SerieS 1000 Vdc Solar FuSe
Product Features
• UL Recognized 1000 Vdc maximum
• 13 ampere ratings for flexible design
• 20,000 A interrupting rating
• High performance in compact 10x38 mm midget size
• Touch safe DIN rail holder available
• PCB leaded version available
Specifications
Voltage Rating:
Amperage Ratings:
Max. Interrupt Rating:
Min. Interrupt Rating:
Approvals:
Environmental:
1000 Vdc
1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 30
20,000 A; Time Constant less than 2ms
1–12 amperes, 2x Current Rating
15–30 amperes, 1.35x Current Rating
UL Recognized (File No. E71611)
CSA Certified (File No. 29862)
RoHS Compliant
Lead (Pb) Free
Description
The SPF Solar Protection Fuse series was specifically designed for
photovoltaic (PV) systems. This family of Midget style fuses (10
x 38mm) can safely protect PV modules and conductors from
reverse overcurrent conditions despite the associated challenges
of DC power.
As PV systems have grown in size, so have the corresponding
voltage requirements. This increase in system voltage has typically
been intended to minimize power loss associated with long con-
ductor runs. Standard midget designs are not optimized for Solar
Protection requirements. However, the SPF series is UL Recog-
nized to safely interrupt circuits up to this demanding voltage level.
Littelfuse offers thirteen ampere ratings to match designers’ spe-
cific requirements in applications including combiner
boxes, inverters and battery charge controllers.
Ordering Example
caTaloG NuMBer
SPF002
SPF008
SPF030
SPF030R
SYSTeM NuMBer
SPF002.T
SPF008.T
SPF030.T
SPF030.HXR
aMPeraGe
2
8
30
30 (with PCB tabs)
Web Resources
Recommended Fuseholder
LPHV ................................................................................... pg. 6
Downloadable CAD drawings and other technical information:
www.littelfuse.com/Series/SPF.html
Dimensions in inches (mm)
0.406 ± .00
(10.31 ± .00)
Dimensions in inches - PCB Version (mm)
0.06 (1.52)
0.02 (.51)
0.14
(3.56)
0.04
(1.02)
1.50 ± .31 (38.1 ± .79)
1.53 ± 0.01)
(38.86 ± .25)
MOUNTING HOLE
DETAIL
0.50 (12.7)
0.12 (3.05)
0.12
(3.05)
www.littelfuse.com/green
6
© 2010 Littelfuse Solar Products
