MS27505E23F21PC-CO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> MS27505E23F21PC-CO

Preview

MS27505E23F21PC-CO: DescriptionMIL Series Connector, 21 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,; CategoryThe connector The connector; File Size186KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html

Download Datasheet Parametric View All

MS27505E23F21PC-CO Overview

MIL Series Connector, 21 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle,

MS27505E23F21PC-CO Parametric

Parameter Name	Attribute value
Maker	Aero-Electric Connector
Reach Compliance Code	unknown
Other features	STANDARD: MIL-DTL-38999; LOW PROFILE; EMI AND RFI SHIELDED; POLARIZED, COMPATIBLE CONTACT: M39029/58-364
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID/IMMERSION/VIBRATION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	23
Termination type	CRIMP
Total number of contacts	21

Preview

Download Datasheet

View All

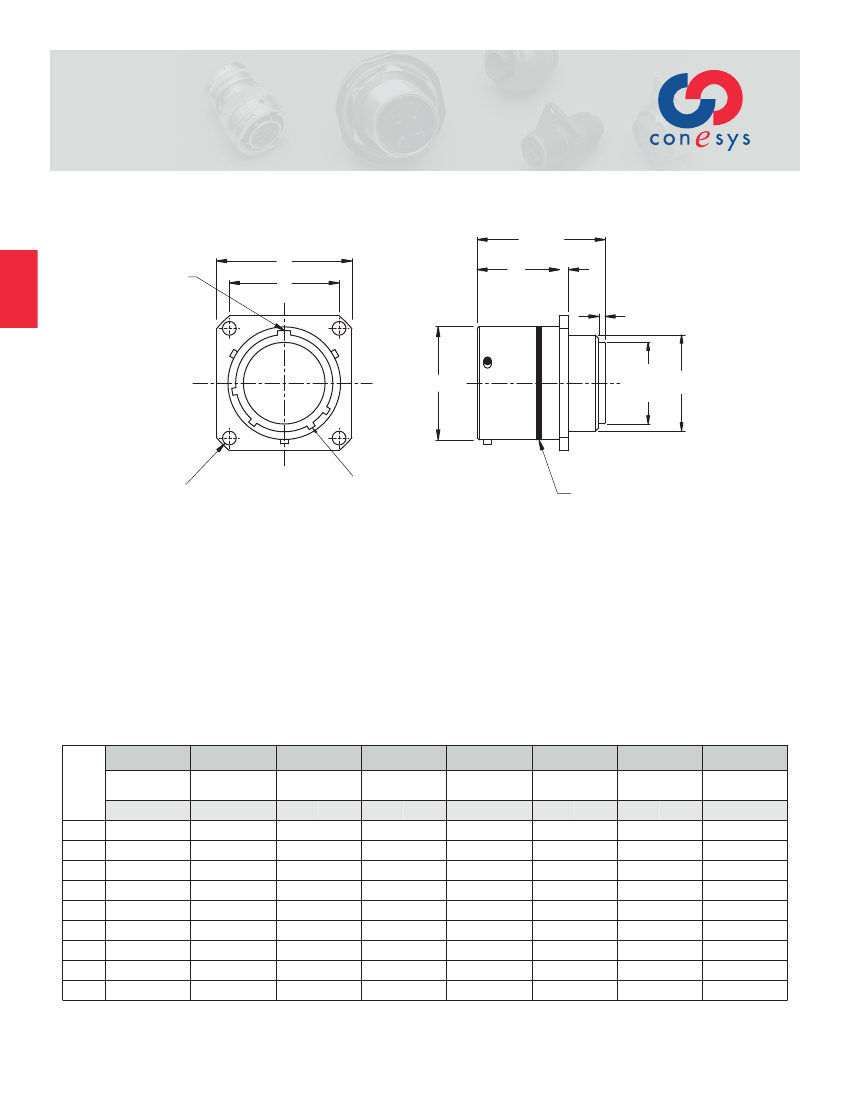

MS27505

Rear, Box Mounting Receptacle

AE105

MIL–DTL–

38999 S I

Shell

Size

9

11

13

15

17

19

21

23

25

Bayonet Coupling, Crimp Removable, Rear Release, Scoop-Proof

1.100(27.94)

MAX

A

MASTER KEYWAY

D

F

.060(1.52)

MAX GROMMET EXTENSION

B

E

H

MAX

GROMMET

G

4x C

4X MINOR KEYWAYS

BLUE COLOR BAND

Page 4

Page 13

Pages 17–19

Page 3

Pages 15, 16

Page 11

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

Note:

See page 12 for panel thickness.

A

±.020

inch

.938

1.031

1.125

1.219

1.312

1.438

1.562

1.688

1.812

±.51

mm

23.83

26.19

28.58

30.96

33.32

36.53

39.67

42.88

46.02

inch

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

B

(TP)

mm

18.26

20.62

23.01

24.61

26.97

29.36

31.75

34.93

38.10

+.010

-.005

inch

.128

.147

C

+.25

-.13

mm

3.25

3.73

+.000

-.005

inch

.820

.790

D

+.00

-.13

mm

20.83

20.07

+.001

-.005

inch

.572

.700

.850

.975

1.100

1.207

1.332

1.457

1.582

E

+.03

-.13

mm

14.53

17.78

21.59

24.77

27.94

30.66

33.83

37.01

40.18

+.015

-.000

inch

.085

.115

F

+.38

-.00

mm

2.16

2.92

G

Maximum

inch

.547

.656

.828

.953

1.078

1.203

1.328

1.453

1.578

mm

13.89

16.66

21.03

24.21

27.38

30.56

33.73

36.91

40.08

H

Maximum

inch

.299

.427

.541

.666

.791

.897

1.022

1.147

1.272

mm

7.59

10.85

13.74

16.92

20.09

22.78

25.96

29.13

32.31
