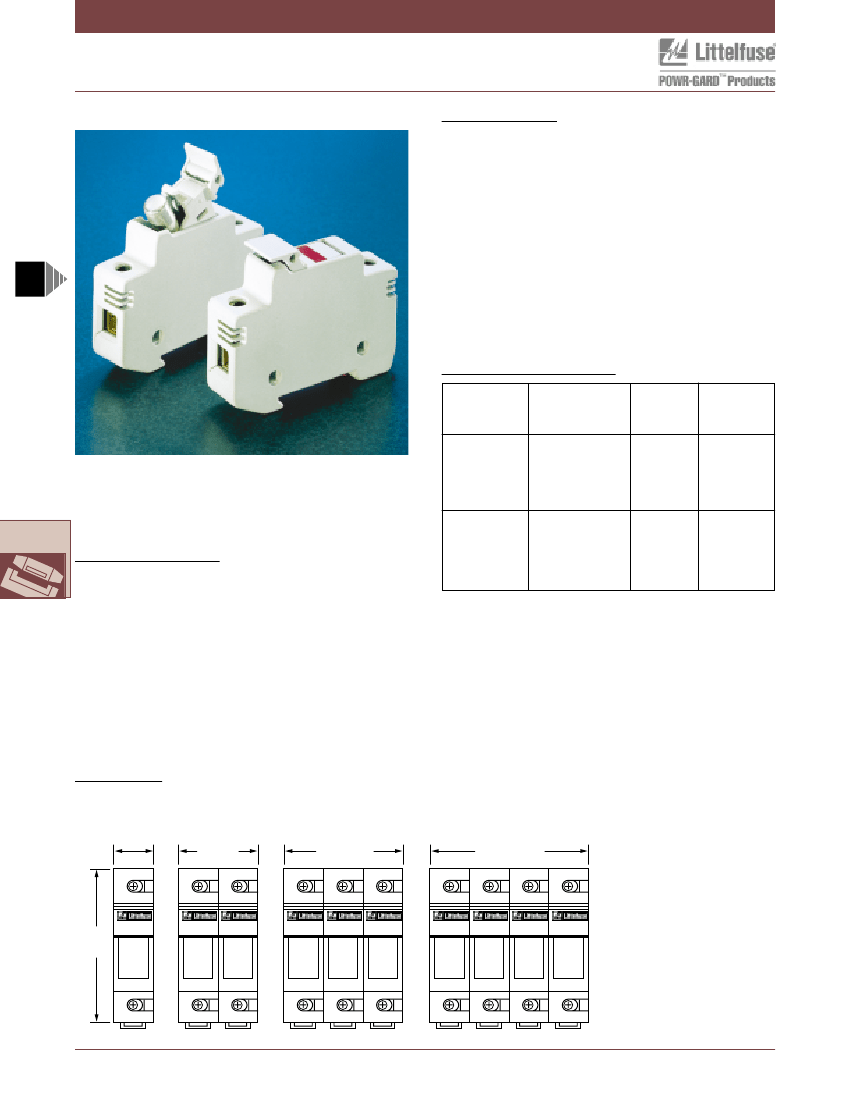

Fuse Blocks, Holders and Accessories
POWR-SAFE “Dead Front” Holders
SPECIFICATIONS
Voltage rating:
600 Volts
Ampere rating:
30 amperes
Interrupting rating:
200 kA (Class CC)
100 kA (Midget)
Terminal type:
Pressure plate
Suggested Torque:
15 lb.
Wire range:
#6—#14CU
Material:
Thermo-Plastic
Flammability Rating:
94VO
Approvals:
UL Listed
CSA Certified
IEC Type IP2 Protection
CE Certified
NEW
ORDERING INFORMATION
Indicating
Part
Number
LPSC001ID
Littelfuse POWR-SAFE “Dead Front” holders provide
optimum protection to personnel. Indicating and non-
indicating versions are available in 1, 2, 3, or 4 poles for Class
CC and Midget fuses.
BLOCKS
AND
HOLDERS
Non-Indicating
Part
Number
LPSC001
LPSC002
LPSC003
LPSC004
LPSM001
LPSM002
LPSM003
LPSM004
Fuse
Type
Class CC
Class CC
Class CC
Class CC
Midget
Midget
Midget
Midget
Number
of
Poles
1
2
3
4
1
2
3
4
LPSC002ID
LPSC003ID
LPSC004ID
LPSM001ID
LPSM002ID
LPSM003ID
LPSM004ID
FEATURES/BENEFITS
s
s
s
s
s
s
s
Meets “Dead Front” requirements and IEC Type IP2
Protection
Mountable on 35mm Din Rail
Blown fuse identification (Indicating versions only)
Easy installation and removal of fuses. No special fuse
pullers or tools required.
UL Listed for branch circuit protection (Class CC
versions only)
Compact design
Ventilated design for cooler operation
DIMENSIONS
in inches (mm in parentheses)
s
LPSM/LPSC
POWR-SAFE Holders
.689
(17.50)
1.38
(35.05)
2.07
(52.58)
2.76
(70.10)
3.032
(77.01)
98
Fuse Blocks, Holders and Accessories

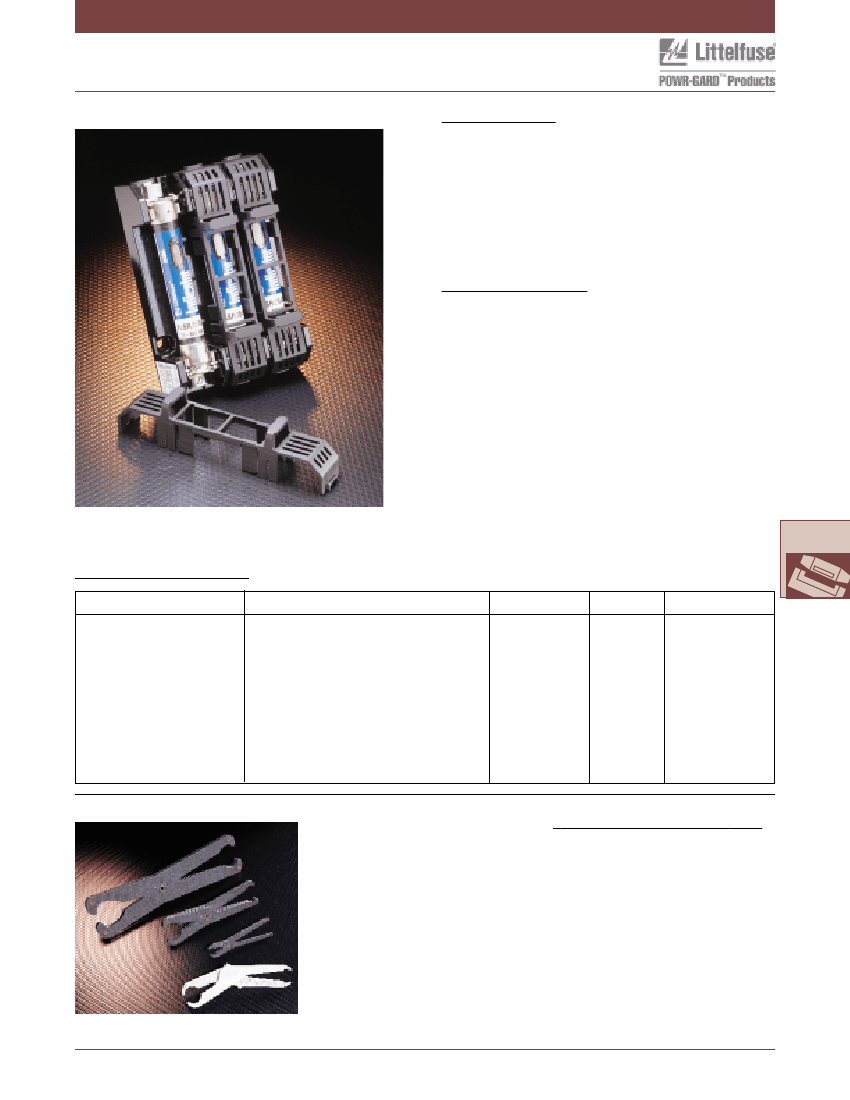

POWR-Covers - Fuse Block Covers
SPECIFICATIONS
Voltage rating:
600 Volts
Ampere rating:
Class H: 0-100 amps
Class R: 0-100 amps
Class J: 0-100 amps
Class CD: 60 amps
Material:
Thermoplastic
Approvals:
UL Listed
IEC Type IP2 Protection
FEATURES/BENEFITS
s
s
s
s
s
s
s
Meets “Dead Front” requirements and IEC Type IP2
Protection for most applications (see note)
Easily gangable with optional “gang-slide” adapters
Added safety to personnel
Unique design allows Littelfuse Indicator
TM
fuses to be
seen through covers
Ventilated to avoid fuse derating
Covers are reusable
Covers fit most competitor blocks
For “Gang Slide” Adapters order:
PCGS-2 for 2 poles
PCGS-3 for 3 poles
Littelfuse fuse block covers protect personnel from acciden-
tally contacting energized contacts. Covers are available for
Class H, R, J, and CD type fuses up to 100 amps.
NOTE: Contact Factory for specific applications.
BLOCKS
AND
HOLDERS
ORDERING INFORMATION
Littelfuse Part Number
LH25030-PC
LH25060-PC
LH25100-PC
LH60030-PC
LH60060-PC
LH60100-PC
LJ60030-PC
LJ60060-PC
LJ60100-PC
L60060C-PC
For Use With Fuse Block Number
LH25030/LR25030 series
LH25060/LR25060 series
LH25100/LR25100 series
LH60030/LR60030 series
LH60060/LR60060 series
LH60100/LR60100 series
LJ60030 series only
LJ60060 series only
LJ60100 series only
L60060C series only
Voltage
250
250
250
600
600
600
600
600
600
600
Amp
30
60
100
30
60
100
30
60
100
60
Fuse Class
H/R
H/R
H/R
H/R
H/R
H/R
J
J
J
CD
Fuse Pullers
Littelfuse fuse pullers are the safe way of
handling power fuses.
Littelfuse’s new ergonomically-designed
fuse puller offers greater ease in
removing fuses. This new molded design
is superior to standard pullers because it
offers a more comfortable and natural
grip when pulling fuses, improving
performance. Part No. LPFP
PART NUMBER & APPLICATION
Midget Fuse Puller
MFP: For 3/16" to 1/2" dia. fuses.
Pocket Fuse Puller
LPFP: For 0 – 200A 250V,
0 – 100A 600V
(9/16" – 1-19/32" dia. fuses)
Giant Fuse Puller
GFP: 61 – 600A 250V,
61 – 400A 600V
(1-1/16" – 2-19/32" dia. fuses)
Tri-Puller
097023: For ATO
®
and glass fuses.
99
Fuse Blocks, Holders and Accessories

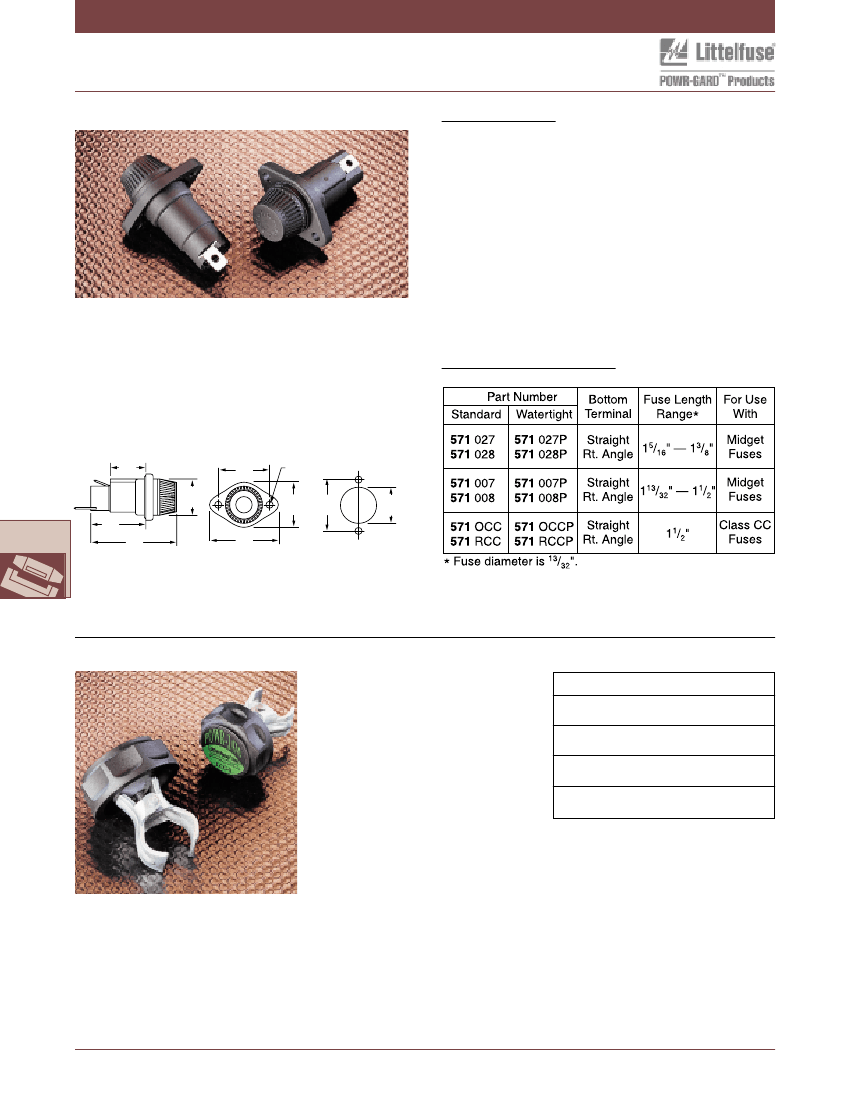

571 Series Panel Mounted Fuseholders
SPECIFICATIONS
Voltage rating:
600 Volts
Ampere rating:
30 amperes for Class CC and
Midget fuses
Dielectric strength:
4000 Volts
Terminals:Tin-plated
brass combination solder and
quick-connect
Molded parts:
Black thermoplastic
Approvals:
UL Recognized (File No. E14721) — 571 series
UL Recognized for branch circuit protection
— 571 OCC/RCC
CSA Certified (File No. LR7316)
Panel mount fuseholders are available for supplementary or
Class CC branch circuit protection. Class CC fuses have a
rejection feature on one end cap which mates with the
rejection feature of Littelfuse Class CC fuse blocks and
fuseholders to prevent the installation of fuses with lower
voltage ratings or interrupting ratings. Watertight version must
be front panel mounted.
ORDERING INFORMATION
.86"
[21.84]
1.312"
[33.33]
.172 DIA.
[4.37]
.92"
[23.37]
1.12" 1.310"
[28.45]
[33.3]
.890"
[22.6]
BLOCKS
AND
HOLDERS
1.34"
[34.04]
2.10"
[53.34]
1.74"
[44.20]
Mounting Hole
POWR-JAW Clip Clamps
POWR-JAW clamps improve the contact
between fuse and clip. The unnecessary
heat from poor contact due to the loss of
spring force in the clips can cause
nuisance fuse opening and premature
aging of surrounding components.
s
High temperature phenolic resin
knob designed for the most severe
environments.
s
7 sizes to provide effective coverage.
s
Simple design makes installation
easy.
Part Number Volts
LCC 1
LCC 2
LCC 2
LCC 4
LCC 5
LCC 6
LCC 7
LCC 8
250
250
600
600
250/600
250/600
250/600
250/600
Amperes
0-30
35-60
0-30
35-60
70-100
110-200
225-400
450-600
100
