2SC1969 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SC1969

Preview

2SC1969: DescriptionPower Bipolar Transistor, 6A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin,; CategoryDiscrete semiconductor The transistor; File Size142KB，1 Pages; ManufacturerAdvanced Semiconductor, Inc.

Download Datasheet Parametric View All

2SC1969 Overview

Power Bipolar Transistor, 6A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin,

2SC1969 Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	6 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	10
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

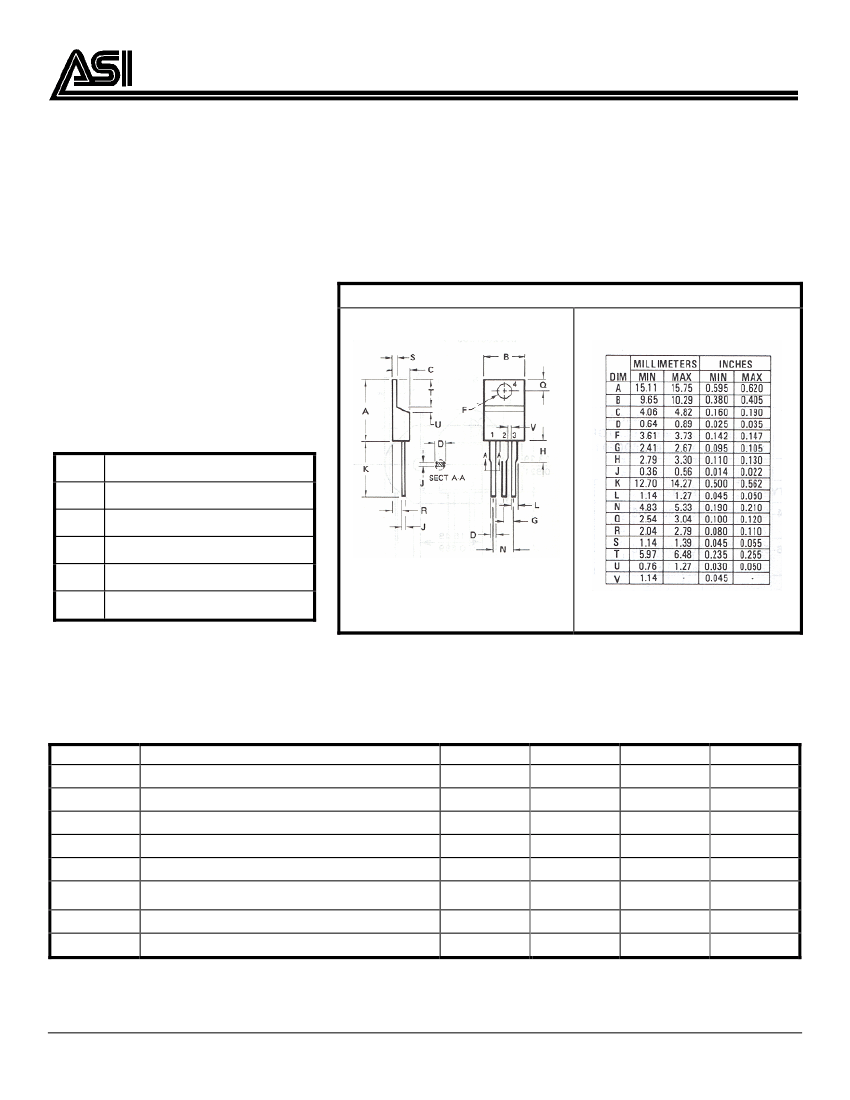

2SC1969

SILICON POWER NPN TRANSISTOR

DESCRIPTION:

The

ASI 2SC1969

is an epitaxial

planar type transistor designed for RF

power amplifiers on HF bland mobile

radio applications.

PACKAGE STYLE TO-220AB

MAXIMUM RATINGS

I

C

V

CEO

P

DISS

T

J

T

STG

θ

JC

6.0 A

25 V

20 W @ T

C

= 25 °C

-55 °C to +150 °C

6.25 °C/W

1 = Base 2 = Collector 3 = Emitter

4 = Collector

TRANS1.SYM

CHARACTERISTICS

SYMBOL

BV

CEO

BV

CBO

BV

EBO

I

CBO

I

EBO

h

FE

P

O

η

C

I

C

= 10 mA

T

C

= 25 °C

TEST CONDITIONS

I

C

= 1.0 mA

I

E

= 5.0 mA

V

CB

= 30 V

V

EB

= 4.0 V

V

CE

= 12 V

V

CC

= 12 V

V

CC

= 12 V

I

C

= 10 mA

P

IN

= 1.0 W

P

IN

= 1.0 W

f = 27 MHz

MINIMUM

25

60

5.0

TYPICAL

MAXIMUM

UNITS

V

100

10

16

60

50

18

70

180

µA

---

W

%

A D V A N C E D S E M I C O N D U C T O R, I N C.

7525 ETHEL AVENUE

•

NORTH HOLLYWOOD, CA 91605

•

(818) 982-1202

•

FAX (818) 765-3004

Specifications are subject to change without notice.

REV. A

1/1
