DHR14C4-1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DHR14C4-1A

DHR14C4-1A: DescriptionSmart/Normal 7 Seg Numeric LED Display, Red, 14.22mm; CategoryLED optoelectronic/LED photoelectric; File Size76KB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

DHR14C4-1A Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 14.22mm

DHR14C4-1A Parametric

Parameter Name	Attribute value
Maker	SUNLED
Reach Compliance Code	unknown
ECCN code	EAR99
color	RED
Configuration	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	14.22 mm
Number of functions	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

Four Digit Displays

Shape

Part Number

Emitting

Color

Emitting

Material

Wave

Length

(nm)

Luminous

Intensity

IF=10mA (ucd)

Min.

Max.

Common

Figure

No.

0.56"(14.22mm)

DHR14A4 / DHR14C4

DHR14A4-A / DHR14C4-A

DHR14A4-1A / DHR14C4-1A

DUR14A4 / DUR14C4

DUR14A4-A / DUR14C4-A

DUR14A4-1A / DUR14C4-1A

DMR14A4 / DMR14C4

DMR14A4-A / DMR14C4-A

DMR14A4-1A/ DMR14C4-1A

DUG14A4 / DUG14C4

DUG14A4-A / DUG14C4-A

DUG14A4-1A / DUG14C4-1A

DUY14A4 / DUY14C4

DUY14A4-A / DUY14C4-A

DUY14A4-1A / DUY14C4-1A

Red

GaP

700

560 - 1400

Anode / Cathode

Red

GaAsP/GaP

625

2200 - 5600

Anode / Cathode

Red

GaAlAs

660

5600 - 21000

Anode / Cathode

Green

GaP

565

2200 - 5600

Anode / Cathode

Yellow

GaAsP/GaP

590

2200 - 5600

Anode / Cathode

A : Dxx14A4 , Dxx14C4

B : Dxx14A4-1A , Dxx14C4-1A

C : Dxx14A4-A , Dxx14C4-A

Dxx14A4-A

Dxx14C4-A

A, B , C FRONT VIEW

A END VIEW

A, B ,C SIDE VIEW

B , C END VIEW

Dxx14A4-1A

Dxx14A4

Dxx14C4-1A

Dxx14C4

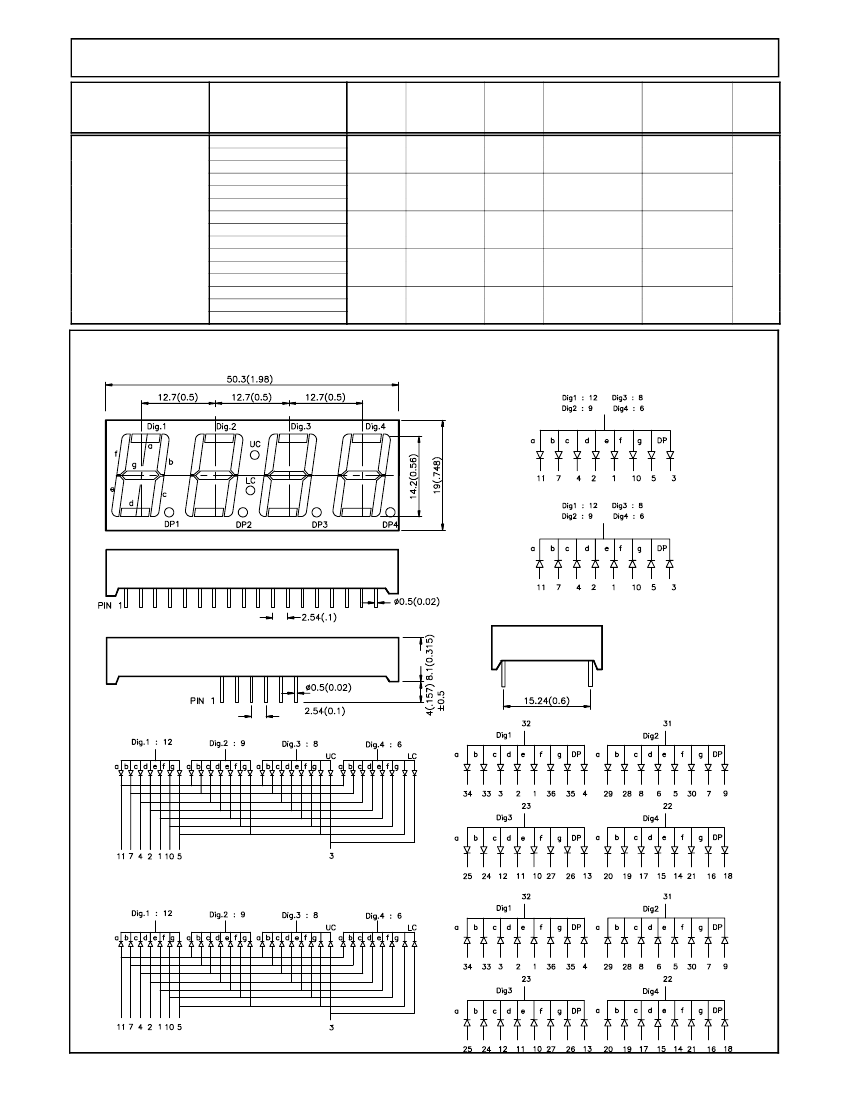

Package Dimensions Units : mm

Tolerance : .25mm (0.01")
