NM7050SA-90E9A

Description
Crystal Filter, 1 Function(s), 90MHz, 4kHz BW(delta f), ROHS COMPLIANT, CERAMIC PACKAGE-6
CategoryAnalog mixed-signal IC    filter
File Size88KB，3 Pages
ManufacturerNDK
Websitehttp://www.ndk.com/en/
Environmental Compliance
Download Datasheet Parametric Compare View All

NM7050SA-90E9A Overview

Crystal Filter, 1 Function(s), 90MHz, 4kHz BW(delta f), ROHS COMPLIANT, CERAMIC PACKAGE-6

NM7050SA-90E9A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNDK
Reach Compliance Codeunknown
Other featuresTAPE AND REEL
Bandwidth (+/- delta f)4 kHz
Center frequency or cutoff frequency (fo/fc)90 MHz
filter typeCRYSTAL FILTER
high1.35 mm
Input/output impedance200 OHM//8
Maximum insertion loss5 dB
length7 mm
Manufacturer's serial numberNM7050SA
Installation typeSURFACE MOUNT
Number of functions1
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL7.0XB5.0XH1.35 (mm)/L0.276XB0.197XH0.053 (inch)

Preview

Download Datasheet

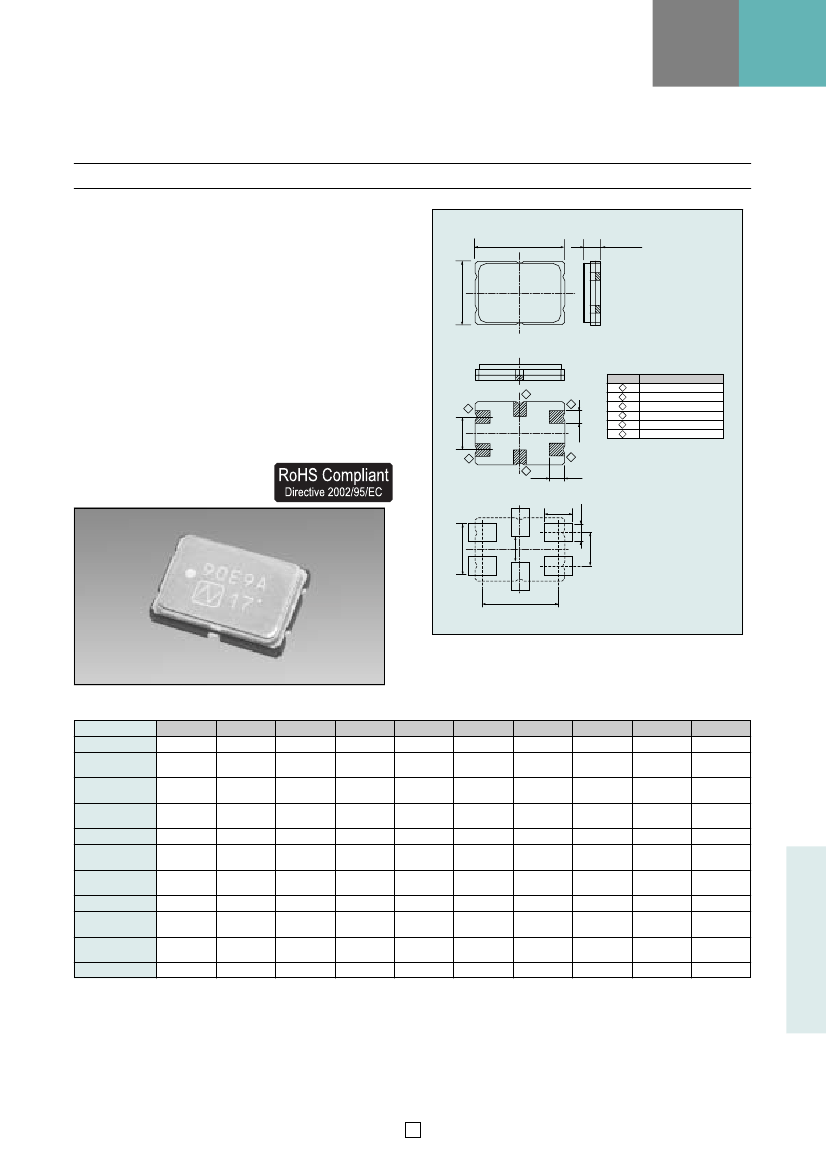

2 POLE MCF
Compact, thin and lightweight crystal filter for surface
mounting.
The compact size (7.0×5.0×1.35mm) is made possible
with a ceramic container.
Applicable to wide frequency range.
■
Features
NM7050SA
7.0±0.2
(mm)
1.35±0.15
8
IR reflow, VPS are applicable.
(please contact us for the temperature profile)
8
For surface mount (Emboss carrier taping applicable)
8
Excellent shock resistance
8
Excellent heat resistance
8
Good Guaranteed attenuation
8
Frequency range Fundamental: 20~100 MHz
Over tone: 45~150 MHz
8
Applicable to 3 pole MCF
5.0±0.2
2
1
3
2.54
6
5
4
6-
Reference land pattern
6-
2.2
4.0
2.0
6-
1.4
6-
PAD No PAD CONNECTION
1
GND
2
GND
3
OUT PUT
4
GND
5
GND
6
IN PUT
1.0
1.2
6.0
■
Fundamental
Model
90E9A
21E7.5AD 21E15AB 21E30AD 21E7.5A 21E15AA 21E30AF 45E7.5AB 45E15A
45E30AN
Pole
2
2
2
2
2
2
2
2
2
2
Nominal
45MHz
90MHz
21.4MHz 21.4MHz 21.4MHz 21.7MHz 21.7MHz 21.7MHz
45MHz
45MHz
Frequency
3dB Pass
±3.75kHz min ±7.5kHz min ±15kHz min ±3.75kHz min ±7.5kHz min ±15kHz min ±3.75kHz min ±7.5kHz min ±15kHz min ±4kHz min
Bandwidth
±12.5kHz max ±25kHz max ±50kHz max ±12.5kHz max ±25kHz max ±50kHz max ±25kHz max ±25kHz max ±60kHz max ±50kHz max
Attenuation
Bandwidth
at 15dB
at 15dB
at 15dB
at 15dB
at 15dB
at 15dB
at 20dB
at 13dB
at 20dB
at 25dB
Ripple
1dB max 1dB max 1.5dB max 1dB max 1dB max 1.5dB max 1dB max 1dB max 1dB max 0.5dB max
Insertion Attenuation
2dB max 1.5dB max 1.5dB max 2dB max 1.5dB max 1.5dB max 2dB max 3dB max 2dB max 5dB max
(Insertion Loss)
Guaranteed
60dB min 60dB min 50dB min 60dB min 60dB min 50dB min 60dB min 70dB min 60dB min 70dB min
Attenuation
at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz at -910kHz
Spurious
15dB min 15dB min 5dB min 15dB min 15dB min 5dB min 10dB min 10dB min 5dB min 20dB min
Terminating
1500Ω//5pF 1500Ω//1pF 2500Ω//1.2pF 850Ω//6pF 1500Ω//1pF 2000Ω//1.2pF 200Ω//4pF 1000Ω//4pF 650Ω//1.5pF 200Ω//8pF
Impedance
Operating
Temp. Range
–20~+70°C –20~+70°C –20~+70°C –20~+70°C –20~+70°C –20~+70°C –20~+70°C –30~+70°C –20~+70°C –20~+70°C
Type
NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA NM7050SA
2.54
CRYSTAL FILTERS
143
Please access NDK web site (http://www.ndk.com/) for the latest information.
