PCS-XED50RFAU2+: DescriptionTelecom and Datacom Connector, 50 Contact(s), Female, IDC Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size70KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PCS-XED50RFAU2+ Overview

Telecom and Datacom Connector, 50 Contact(s), Female, IDC Terminal, ROHS COMPLIANT

PCS-XED50RFAU2+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honda Tsushin Kogyo Co., Ltd.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (8)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL; NICKEL
Shell material	STEEL; ZINC ALLOY
Termination type	IDC
Total number of contacts	50
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

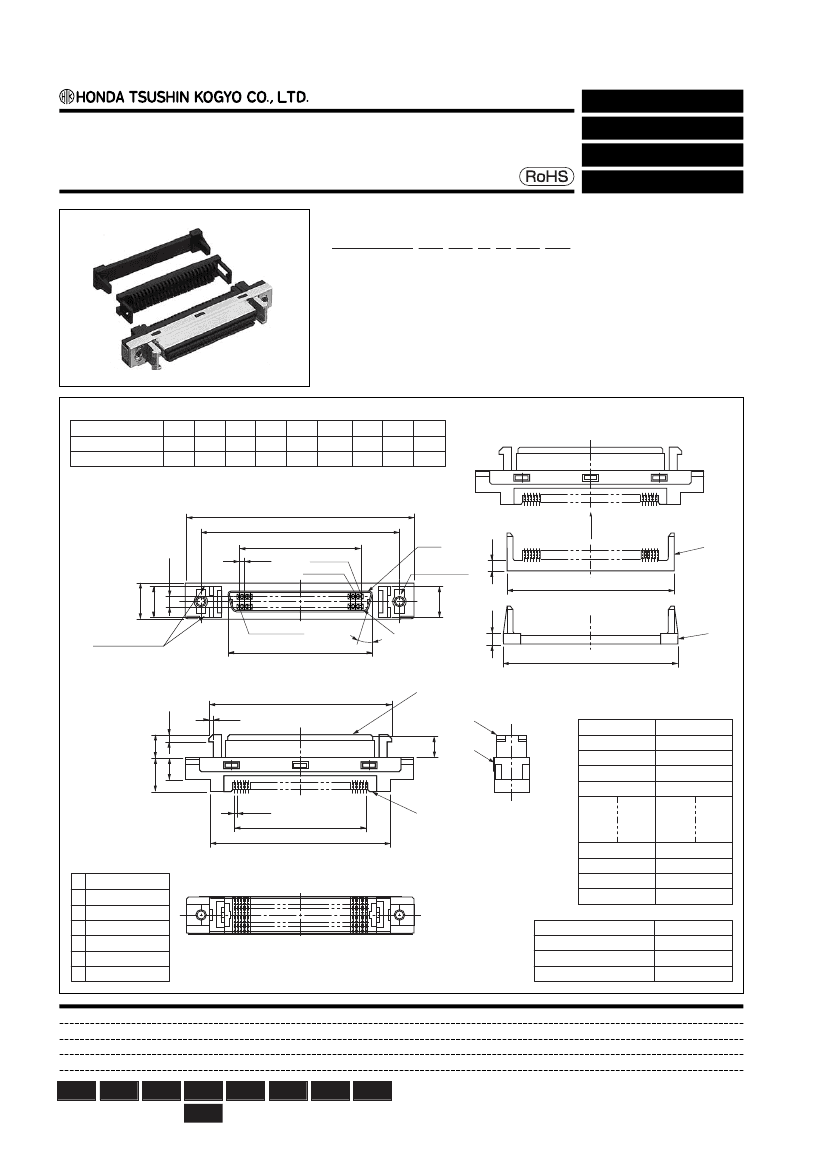

1.27 mm pitch connector

IDC type female connector for panel

PCS-XED( )( )FA( )( )+

●

Configuration of product Part No.

For cable

IDC (0.635 mm)

SCSI-II

PCS-XED ( ) ( ) F A ( ) ( )+

➀

➁

➂

➃ ➄

➅

➆

➅

Screw size

Blank: M2.5≈0.54 (standard)

U

: #4-40UNC

U2 : #2-56UNC

➆

Contact plating

Blank: Min. 0.2

μm

Gold plating

G1 : Min. 0.76

μm

Gold plating

➀

Series name

➁

No. of contacts: 50 or 68

➂

Strain relief

Blank: Not provided

R

: Provided

➃

Type of contact

F: Female

➄

Cable size

A: AWG#30(7 / 0.1) For flat cable

●

Dimmensions

Part No.

PCS-XED50( )FA( )( )

PCS-XED68( )FA( )( )

A

52.5

63.9

B

C

D

E

F

G

H

J

46.5 30.48 34.7 42.29 31.115 42.1 37.79 39.49

57.9 41.91 46.13 53.72 42.545 53.47 49.22 50.92

A

B

C

2.54

1.27

POS.#1

POS.#2

2.0

4-R1

Screw size

H

8.2

5.54

7.0

2.5

IDC direction

➅

LAST POS.

POS.# Marking

(4 PLCS)

D

15˚

➀

J

➆

E

1.5

0.85

➁

➂

5.4

●

Terminal-to-conductor

connection (In case of the

50-contact connector)

Terminal No.

1

26

2

27

Conductor No.

1

2

3

4

7.85 5.5

4.99

➃

0.635

F

G

➄

24

47

48

49

50

Screws size

M2.5≈0.45

#4-40UNC

#2-56UNC

●

Components

➀

Contacts

➁

Insulator

➂

Shell A

➃

Shell B

➄

Cable housing A

➅

Cable housing B

➆

Strain relief

49

25

50

Part No.

PCS-XED( )( )FA( )+

Because some combinations of “Configurations of Product Part No.”, are under

consideration for development, please contact us for availability details.

PCS-XED( )( )FAU( )+

PCS-XED( )( )FAU2( )+

Mating connectors:

PCS-XE series IDC type male connector for cable

Required tools:

Locator tool, MLPT-0004A for 68 contacts or MLPT-0004B for 50 contacts

Through

hole

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others
