PMX6GPFREQ1

Description
Parallel - Fundamental Quartz Crystal, 9.8MHz Min, 12MHz Max, ROHS COMPLIANT PACKAGE-2
CategoryPassive components    Crystal/resonator
File Size270KB,2 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Environmental Compliance
Download Datasheet Parametric View All

PMX6GPFREQ1 Overview

Parallel - Fundamental Quartz Crystal, 9.8MHz Min, 12MHz Max, ROHS COMPLIANT PACKAGE-2

PMX6GPFREQ1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMtronPTI
package instructionROHS COMPLIANT PACKAGE-2
Reach Compliance Codeunknown
Other featuresAT CUT CRYSTAL
Ageing5 PPM/YEAR
Crystal/Resonator TypePARALLEL - FUNDAMENTAL
Drive level100 µW
frequency stability0.01%
frequency tolerance20 ppm
JESD-609 codee4
load capacitance18 pF
Manufacturer's serial numberPMX
Installation featuresSURFACE MOUNT
Maximum operating frequency12 MHz
Minimum operating frequency9.8 MHz
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
physical sizeL7.0XB5.0XH1.2 (mm)/L0.276XB0.197XH0.047 (inch)
Series resistance80 Ω
surface mountYES
Terminal surfaceNickel/Gold (Ni/Au)

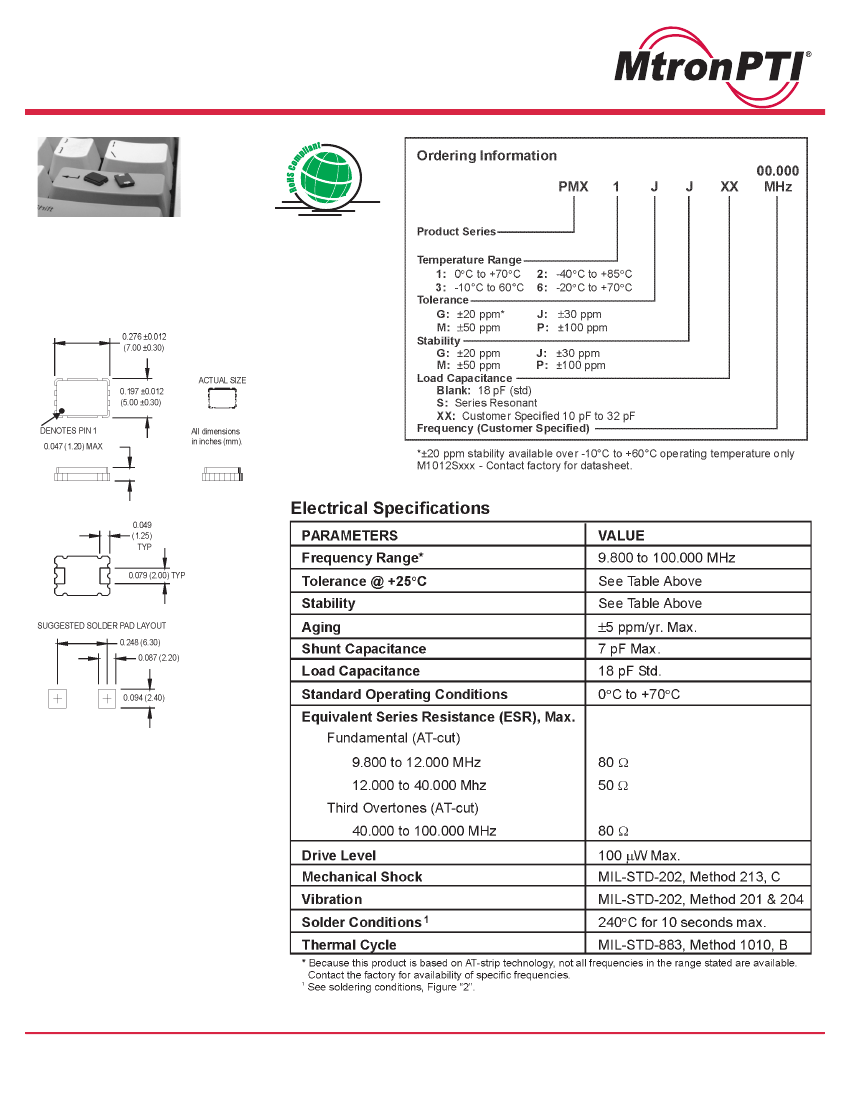

PMX Surface Mount Crystals
5.0 x 7.0 x 1.2 mm
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.
Please see
www.mtronpti.com
for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI
1-800-762-8800.
Revision: 8-10-07
