AM25LS2538LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> AM25LS2538LC

AM25LS2538LC: DescriptionDecoder/Driver, TTL/H/L Series, Configurable Output, TTL, CQCC20, LCC-20; Categorylogic logic; File Size175KB，7 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

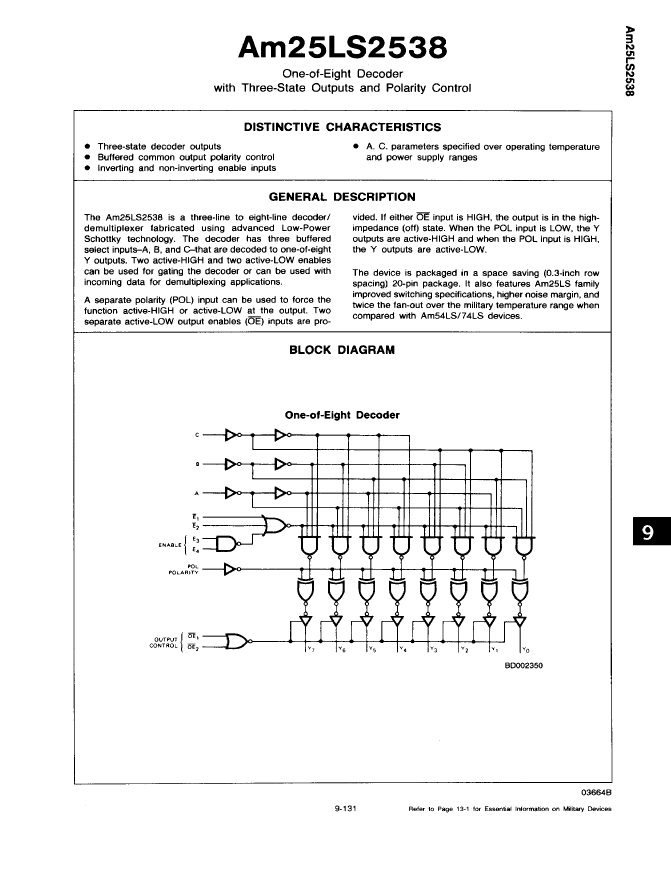

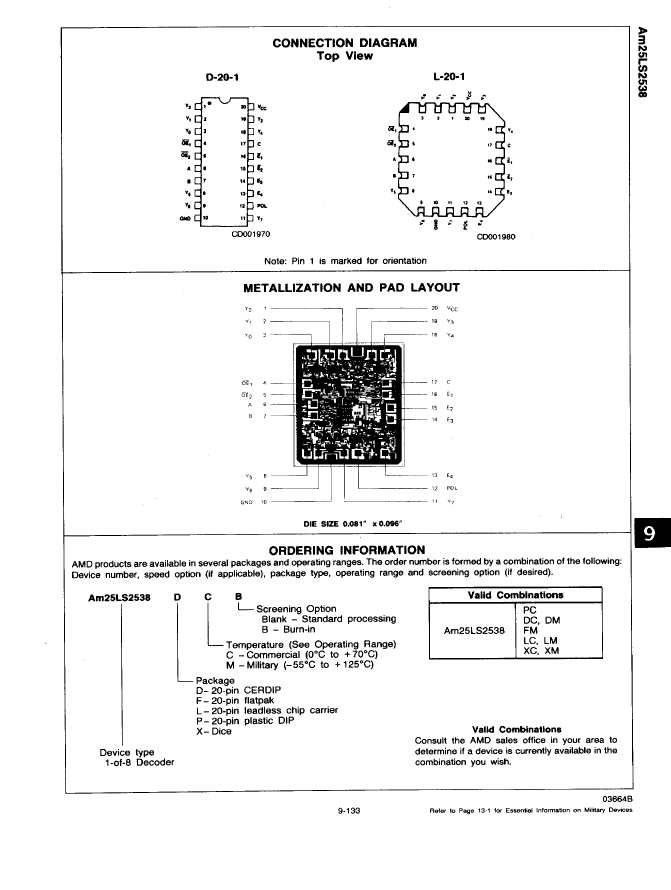

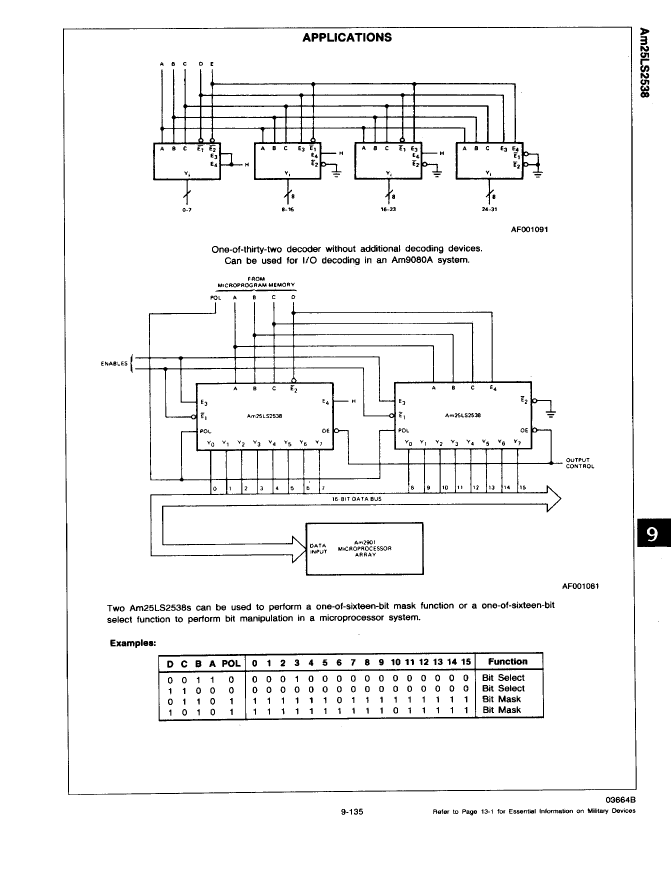

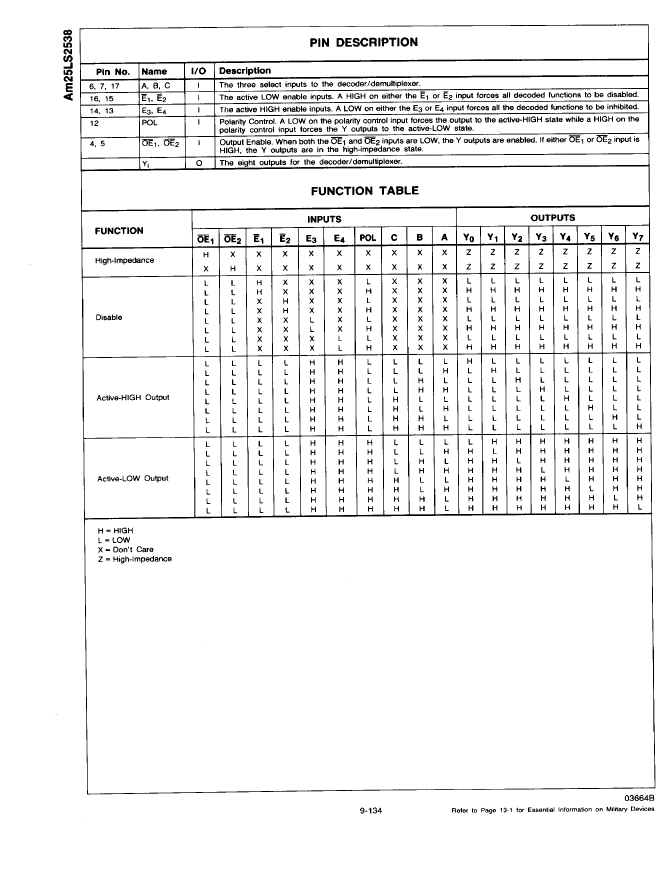

AM25LS2538LC Overview

Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CQCC20, LCC-20

AM25LS2538LC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
series	TTL/H/L
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	CONFIGURABLE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	34 mA
propagation delay (tpd)	29 ns
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm

Preview

Download Datasheet

View All

AM25LS2538LC Related Products

	AM25LS2538LC	AM25LS2538PC	AM25LS2538DC	AM25LS2538LM	AM25LS2538XM	AM25LS2538XC	AM25LS2538DM	AM25LS2538FM
Description	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CQCC20, LCC-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, PDIP20, PLASTIC, DIP-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CQCC20, LCC-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, 0.081 X 0.096 INCH, DIE-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, 0.081 X 0.096 INCH, DIE-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CDIP20, HERMETIC SEALED, CERDIP-20	Decoder/Driver, TTL/H/L Series, Configurable Output, TTL, CDFP20, FP-20
Parts packaging code	QLCC	DIP	DIP	QLCC	DIE	DIE	DIP	DFP
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DIP, DIP20,.3	QCCN,	DIE,	DIE,	DIP, DIP20,.3	DFP, FL20,.3
Contacts	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
JESD-30 code	S-CQCC-N20	R-PDIP-T20	R-GDIP-T20	S-CQCC-N20	R-XUUC-N20	R-XUUC-N20	R-GDIP-T20	R-CDFP-F20
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C	125 °C	70 °C	125 °C	125 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE	CONFIGURABLE
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	QCCN	DIE	DIE	DIP	DFP
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	UNCASED CHIP	UNCASED CHIP	IN-LINE	FLATPACK
Maximum supply current (ICC)	34 mA	34 mA	34 mA	34 mA	34 mA	34 mA	34 mA	34 mA
propagation delay (tpd)	29 ns	29 ns	29 ns	37 ns	37 ns	29 ns	37 ns	37 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.5 V	4.5 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	QUAD	DUAL	DUAL	QUAD	UPPER	UPPER	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	-	conform to	-	incompatible	incompatible
JESD-609 code	e0	e0	e0	-	-	-	e0	e0
length	8.89 mm	26.289 mm	24.4602 mm	8.89 mm	-	-	24.4602 mm	12.827 mm
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3	DIP20,.3	-	-	-	DIP20,.3	FL20,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	2.54 mm	5.08 mm	5.08 mm	2.54 mm	-	-	5.08 mm	2.159 mm
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	-	-	2.54 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
width	8.89 mm	7.62 mm	7.62 mm	8.89 mm	-	-	7.62 mm	6.731 mm
Base Number Matches	-	1	1	1	1	1	-	-
