Ordering number : EN2262C
2SA1552 / 2SC4027
PNP / NPN Epitaxial Planar Silicon Transistors
2SA1552 / 2SC4027
Applications
•
High-Voltage Switching
Applications
Converters, inverters, color TV audio output.
Features
•
•
•
•
Adoption of FBET, MBIT processes.
High voltage and large current capacity.
Fast switching time.
Small and slim package permitting 2SA1552 / 2SC4027-applied sets to be made more compact.
Specifications
( ) : 2SA1552
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Tj
Tstg
Tc=25°C
Conditions
Ratings
(-
-)180
(-
-)160
(-
-)6
(--)1.5
(--)2.5
1
15
150
--55 to +150
Unit
V
V
V
A
A
W
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Symbol
ICBO
IEBO
hFE1
hFE2
fT
Cob
Conditions
VCB=(--)120V, IE=0A
VEB=(--)4V, IC=0A
VCE=(--)5V, IC=(-
-)100mA
VCE=(--)5V, IC=(--)10mA
VCE=(--)10V, IC=(--)50mA
VCB=(--)10V, f=1MHz
100*
80
120
(22)12
MHz
pF
Ratings
min
typ
max
(--)1.0
(--)1.0
400*
Unit
µA
µA
*
; The 2SA1552 / 2SC4027 are classified by 100mA hFE as follws:
Rank
hFE
R
100 to 200
S
140 to 280
T
200 to 400
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
D0505CB MS IM X-0448 / 53002RM (KT) / 72098HA (KT) / 8109MO / 5137TA, TS No.2262-1/5
2SA1552 / 2SC4027
Continued from preceding page.
Parameter
Collector-to-Emitter Saturation Voltage
Base-to-Emitterr Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Turn-On Time
Storage Time
Fall Time
Symbol
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
ton
tstg
tf
Conditions
IC=(--)500mA, IB=(--)50mA
IC=(--)500mA, IB=(--)50mA
IC=(--)10µA, IE=0A
IC=(--)1mA, RBE=∞
IE=(-
-)10µA, IC=0A
See specified Test Circuit.
See specified Test Circuit.
See specified Test Circuit.
(--)180
(--)160
(--)6
60
(0.7)1.2
(50)80
Ratings
min
typ
(--0.2)0.13
(--)0.85
max
(--0.5)0.45
(--)1.2
Unit
V
V
V
V
V
ns
µs
ns

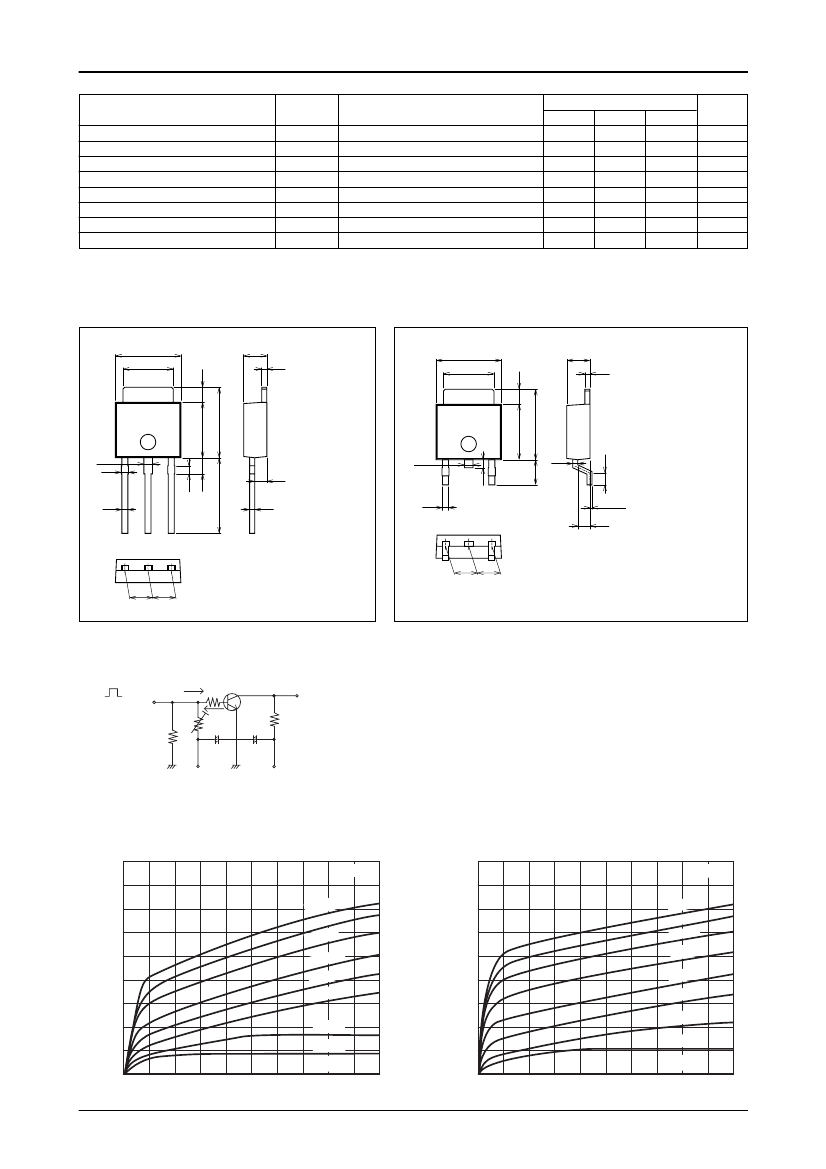

Package Dimensions
unit : mm
7518-003
6.5
5.0
2.3
1.5
Package Dimensions
unit : mm
7003-003
6.5
5.0
2.3
0.5
4
4
7.0
1.5
0.5
5.5
5.5
7.0
0.8
1.6
7.5
1
0.5
0.6
2
0.8
1.2
3
0 to 0.2
1.2
0.6
2.5
0.85
0.7
0.85
0.5
1.2
1
2
3
1 : Base
2 : Collector
3 : Emitter
4 : Collector
SANYO : TP
2.3
2.3
1 : Base
2 : Collector
3 : Emitter
4 : Collector
SANYO : TP-FA
2.3
2.3
Switching Time Test Circuit
IB1
PW=20µs
D.C.≤1%
INPUT
VR
50Ω
RB
IB2
+
+
OUTPUT
RL
14kΩ
470µF
100V
100µF
--5V
10IB1= --10IB2=IC=0.7A
For PNP, the polarity is reversed.
--1.8
--1.6

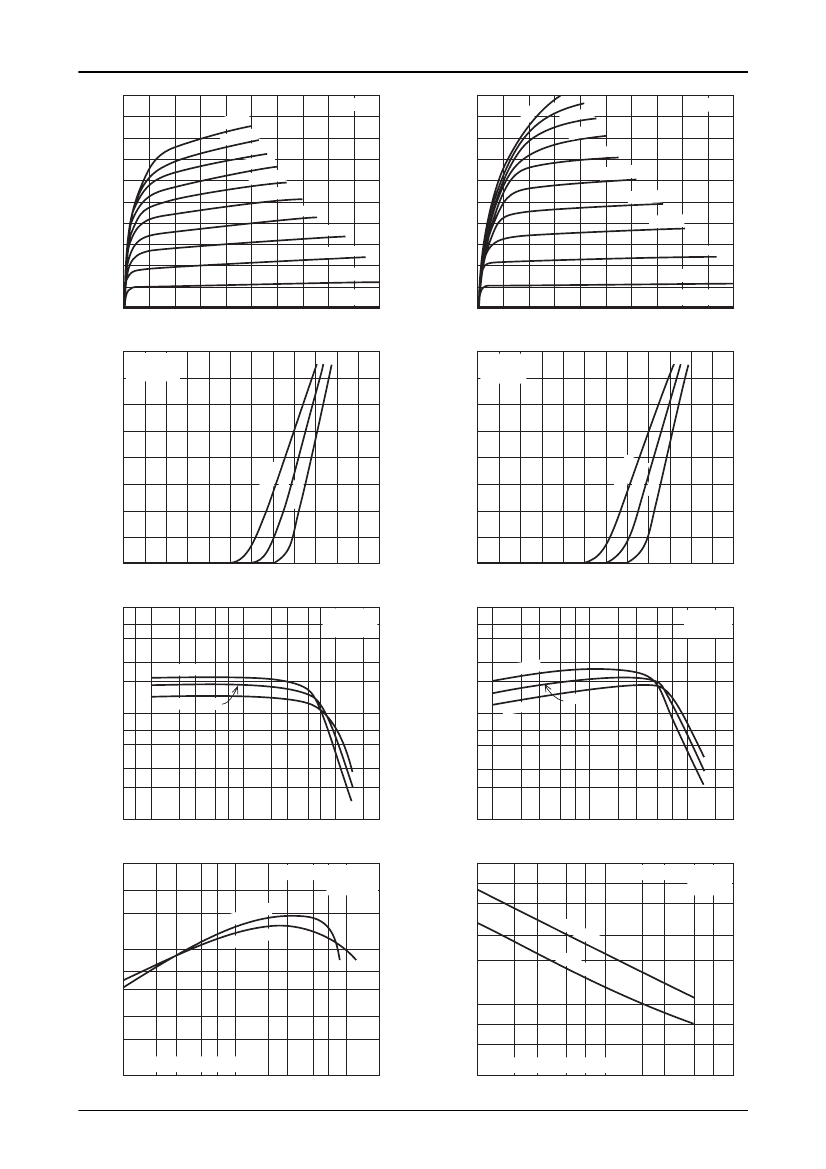

IC -- VCE
2SA1552
1.8
1.6
IC -- VCE
2SC4027
50mA
40mA
30mA
Collector Current, IC -- A
Collector Current, IC -- A
--1.4
--1.2
--1.0
--0.8
--0.6
--0.4
--0.2
0
0
--1
--2
--3
A
--80m
A
--60m
A
--40m
A
--20m
A
--10m
--5mA
--2mA
--1mA
IB=0mA
--4
--5
ITR03969
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
0
20mA
10mA
5mA
2mA
1mA
IB=0mA
1
2
3
4
5
ITR03970
Collector-to-Emitter Voltage, VCE -- V
Collector-to-Emitter Voltage, VCE -- V
No.2262-2/5
2SA1552 / 2SC4027

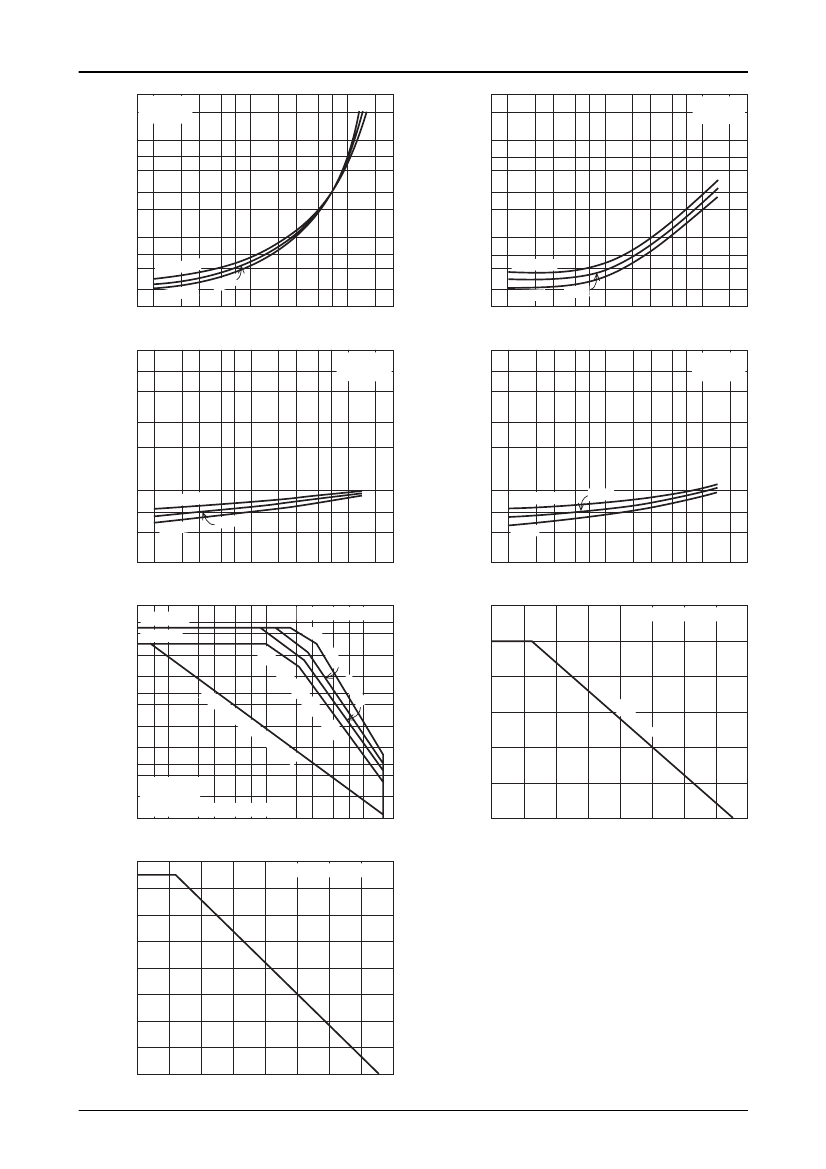

--1.0
IC -- VCE
2SA1552
1.0
IC -- VCE
A
4.5m
mA
4.0
3.5mA
3.0mA
Collector Current, IC -- A
Collector Current, IC -- A
--0.8
--0.6
A
--5.0m
--4.5mA
A
--4.0m
--3.5mA
--3.0mA
--2.5mA
--2.0mA
0.8
5.0
m
A
2SC4027
0.6
2.5mA
2.0mA
--0.4
--1.5mA
--1.0mA
0.4
1.5mA
1.0mA
--0.2
0.2
--0.5mA
0
0
--10
--20
--30
0.5mA
0
0
10
20
30
IB=0mA
--40
--50
ITR03971
IB=0mA
40
50
ITR03972
Collector-to-Emitter Voltage, VCE -- V
--1.6
IC -- VBE
Collector-to-Emitter Voltage, VCE -- V
1.6
IC -- VBE
2SA1552
VCE= --5V
2SC4027
VCE=5V
Collector Current, IC -- A
Collector Current, IC -- A
--1.2
1.2
5
°
C
0
0.2
0.4
0.6
--0.8
0.8
5
°
C
25
°
C
--25
°
C
Ta=
7
--0.4
0.4
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
--1.2
0
0.8
1.0
1.2
ITR03974
Base-to-Emitter Voltage, VBE -- V
1000
7
5
ITR03973
1000
Base-to-Emitter Voltage, VBE -- V
hFE -- IC
2SA1552
VCE= --5V
hFE -- IC
2SC4027
VCE=5V
7
5
DC Current Gain, hFE
Ta=75°C
--25
°
C
DC Current Gain, hFE
3
2
3
2
Ta=75
°
C
--25
°
C
25
°
C
100
7
5
3
2
25°C
100
7
5
3
2
10
5 7 --0.01
2
3
5 7 --0.1
2
3
5 7 --1.0
2
3
10
7 0.01
2
3
5
7 0.1
2
3
5
7 1.0
2
3
Collector Current, IC -- A
5
ITR03975
100
f T -- IC
Collector Current, IC -- A
Ta=
7
25
°
C
--25
°
C
ITR03976
Cob -- VCB
Gain-Bandwidth Product, f T -- MHz
3
2
2SA1552 / 2SC4027
VCE=10V
7
2SA1552 / 2SC4027
f=1MHz
Output Capacitance, Cob -- pF
100
7
5
3
2
027
2SC4
52
2SA15
5
3
2
2SA
155
2
2SC
402
7
10
7
5
10
0.01
For PNP minus sign is omitted.
2
3
5
7
0.1
2
3
5
7
Collector Current, IC -- A
2
1.0
ITR03977
3
1.0
For PNP minus sign is omitted.
2
3
5
7
10
2
3
5
7
100
Collector-to-Base Voltage, VCB -- V
ITR03978
No.2262-3/5
2SA1552 / 2SC4027
3
2
VCE(sat) -- IC
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
2SA1552
IC / IB=10
3
2
1000
7
5
3
2
100
7
5
3
2
VCE(sat) -- IC
2SC4027
IC / IB=10
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
--1000
7
5
3
2
--100
7
5
3
2
7 --0.01
Ta=75
°
C
--25
°
C
2
3
Ta=75°C
--25°C
7 0.01
2
3
25
°
C
5
7 --0.1
2
3
5
7 --1.0
2
3
25
°C
5
7 0.1
2
3
5
7 1.0
2
3
Collector Current, IC -- A
--10
7
ITR03979
10
VBE(sat) -- IC
Collector Current, IC -- A
ITR03980
VBE(sat) -- IC
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
5
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
2SA1552
IC / IB=10
7
5
2SC4027
IC / IB=10
3
2
3
2
--1.0
1.0
7
5
3
Ta=--25°C
7
5
3
7 --0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
Ta= --25°C
75
°C
7 0.01
2
3
5
25
°C
75
°
C
25
°
C
7
0.1
2
3
5
7
1.0
2
3
Collector Current, IC -- A
5
3
2
ITR03981
1.2
ASO
Collector Current, IC -- A
ITR03982
PC -- Ta
ICP=2.5A
IC=1.5A
2SA1552 / 2SC4027
1m
s
Collector Dissipation, PC -- W
2SA1552 / 2SC4027
1.0
10
Collector Current, IC -- A
1.0
5
3
2
0.1
5
3
2
0.01
5
5
DC
op
er
ati
ms
10
0.8
DC
s
0m
on
op
era
No
0.6
c=
(T
tio
n(
he
at
25
)
°
C
Ta
=
sin
k
25
°
C
)
0.4
Tc=25°C
Single Pulse
For PNP minus sign is omitted.
7 1.0
2
3
5
7
10
2
3
5
0.2
0
7 100
2
V
ITR03983
0
20
40
60
80
100
120
140
160
Collector-to-Emitter Voltage, VCE --
16
15
14
Ambient Temperature, Ta --
°C
IT10480
PC -- Tc
2SA1552 / 2SC4027
Collector Dissipation, PC -- W
12
10
8
6
4
2
0
0
20
40
60
80
100
120
140
160
Case Temperature, Tc --
°C
IT10479
No.2262-4/5
2SA1552 / 2SC4027
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer’s
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer’s products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be exported without obtaining the export license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co., Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of December, 2005. Specifications and information herein are subject
to change without notice.
PS No.2262-5/5
