NON-ISOLATED DC/DC CONVERTERS
9.0 Vdc - 18 Vdc Input
5 Vdc - 12 Vdc/1A Output
xRAH-01K Series
•
Non-Isolated
•
High Efficiency
•
Fixed Frequency (450kHz)
RoHS Compliant
Rev.A
•
Low Profile Package
•
Remote On/Off
•
Active Low/High
•
UL60950-1 Recognized (UL/cUL)
Description
The Bel xRAH-01Kxxx is a part of the low cost non-isolated dc/dc converter Power Module series. The modules
use a SMD or SIP package for ease of layout and space savings. The output is closely regulated and the
efficiency of 9 Vdc output module is typically 86% at full load.
Output
Voltage
5V
9V
12 V
Input Voltage
9 V - 18 V
9 V - 18 V
9 V - 18 V
Max. Output
Current
1A
1A
1A
Max. Output
Power
5W
9W
12 W
DE
Typical
Efficiency
81%
86%
87%
Max
24 V
24 V
85
°C
125
°C
Max
18 V
25 mA
45 mA
0.8 A
1.3 A
1.8 A
80 mA
110 mA
130 mA
25 mA
30 mA
40 mA
0.01 A s
8.8 V
8.2 V
2
2
Part Selection
SIG
NS
Part Number
Surface Mount
SRAH-01K50x
SRAH-01K90x
SRAH-01KX2x
Notes
Notes
Part Number
Vertical Mount
VRAH-01K50x
VRAH-01K90x
VRAH-01KX2x
2. Use "0" to replace "x" in the above part number to indicate Active High, and "L" to indicate Active Low.
3. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Remote On/Off
Ambient Temperature
Storage Temperature
Min
-0.3 V
-0.3 V
-40
°C
-40
°C
Input Specifications
Parameter
Input Voltage
Remote Off Input Current
Input Current (no load)
Input Current (full load)
OR
Min
9V
-
-
-
-
-
-
-
-
-
-
-
-
Vo=5 V
Vo=9 V
Vo=12 V
8.0 V
7.2 V
Input Reflected Ripple Current (pk-pk)
Vo=5 V
Vo=9 V
Vo=12 V
Input Reflected Ripple Current (rms)
Vo=5 V
Vo=9 V
Vo=12 V
I t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
2
NO
TF
NE
W
Typ
-
-
-
-
Typ
-
18 mA
30 mA
-
-
-
55 mA
75 mA
95 mA
15 mA
20 mA
30 mA
0.003 A s
8.5 V
7.6 V
Notes:
1. Add “0” suffix at the end of the model number to indicate “Tube Packaging”, and “R” for “Reel
Packaging”, and “G” for “Tray Packaging”.
With simulated source impedance of
500 nH, 5 Hz to 20 MHz; Use one 100
uF/25 V tantalum capacitor at the input.
Note:
All specifications are typical at 25°C unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
9.0 Vdc - 18 Vdc Input
5 Vdc - 12 Vdc/1A Output
Parameter
Output Voltage Set Point
Vo=5 V
Vo=9 V
Vo=12 V
Line Regulation
Vo=5 V
Vo=9 V
Vo=12 V
Load Regulation
Vo=5 V
Vo=9 V
Vo=12 V
Regulation Over Temperature
(-40°C to +85
°C)
Vo=5 V
Vo=9 V
Vo=12 V
Output Current
Output DC Current Limit
Ripple and Noise (rms)
Vo=5 V
Vo=9 V
Vo=12 V
Ripple and Noise (pk-pk)
Vo=5 V
Vo=9 V
Vo=12 V
Ripple and Noise (rms)
Vo=5 V
Vo=9 V
Vo=12 V
Ripple and Noise (pk-pk)
Vo=5 V
Vo=9 V
Vo=12 V
Vo=5 V
Vo=9 V
Vo=12 V
Min
4.90 V
8.82 V
11.76 V
-
-
-
-
-
-
Typ
5V
9V
12 V
8 mV
15 mV
20 mV
15 mV
25 mV
35 mV
-
-
-
0.005 A
1.1 A
-
-
-
-
-
-
-
-
-
-
-
-
DE
50 mV
70 mV
90 mV
-
-
3 mV
3 mV
4 mV
10 mV
15 mV
20 mV
15 mV
25 mV
35 mV
40 mV
70 mV
110 mV
20 mS
30 mS
30 mS
0%
-
200mV
100uS
200mV
100uS
300mV
150uS
300mV
150uS
350mV
150uS
350mV
150uS
NE
W
-
-
-
-
0 uF
-
-
-
-
-
-
-
-
-
-
-
-
Turn On Time
OR
Overshoot at Turn on
Output Capacitance
Transient Response
Overshoot
50% ~ 75%
Max Load
Settling Time
Overshoot
75% ~ 50%
Max Load
Settling Time
Overshoot
50% ~ 75%
Max Load
Settling Time
Overshoot
75% ~ 50%
Max Load
Settling Time
Overshoot
50% ~ 75%
Max Load
Settling Time
Overshoot
75% ~ 50%
Max Load
Settling Time
NO
TF
5.0 V
9.0 V
12.0 V
Note:
All specifications are typical at nominal input, full load at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
SIG
NS
Max
5.10 V
9.18 V
12.24 V
15 mV
25 mV
35 mV
25 mV
45 mV
60 mV
80 mV
100 mV
140 mV
1A
1.8 A
5 mV
5 mV
6 mV
15 mV
20 mV
30 mV
25 mV
35 mV
50 mV
70 mV
100mV
160mV
30 mS
45 mS
45 mS
5%
47 uF
300mV
150uS
300mV
150uS
400mV
200uS
400mV
200uS
500mV
200uS
500mV
200uS
Output Specifications
Notes
Test condition:
Vin=12 V, lout=full load
Test conditions:
BW = 0-20 MHz; with
π
filter (Co1=10 uF, L=0.47
uH, Co2=10 uF) at the
output
Test conditions:
BW = 0-20 MHz; with two
10 uF ceramic capacitors at
the output.
di/dt = 0.5 A/uS; Vin = 12
V; and with two 10 uF
ceramic capacitors at the
output
NON-ISOLATED DC/DC CONVERTERS
9.0 Vdc - 18 Vdc Input
5 Vdc - 12 Vdc/1A Output
General Specifications
Parameter
Efficiency
Vo=5 V
Vo=9 V
Vo=12 V
Switching Frequency
MTBF
Dimensions (surface mount)
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Dimensions (vertical)
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Weight
-
77%
82%
83%
400 kHz
81%
86%
87%
450 kHz
14,760,000 hours
Min
Typ
Max
-
-
-
480 kHz
0.7 x 0.308 x 0.65
17.78 x 7.82 x 16.51
5g
Note:
All specifications are typical at 25°C unless otherwise stated.
Control Specifications
Parameter
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
-0.3 V
2.5 V
Min
NE
W
Typ
Max
-
0.4 V
Vin
0.4 V
Vin
-
-
-
DE
-
Notes
xRAH-01KxxL, Remote On/Off pin open, unit
off.
xRAH-01Kxx0, Remote On/Off pin open, unit
on.
0.78 x 0.7 x 0.32
19.81 x 17.78 x 8.13
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NO
TF
OR
-0.3 V
2.5 V
SIG
NS
Notes
Measured at Vin=12 V, full load
Calculated Per Bell Core TR-332 (I
O
=
Nominal; T
a
= 25°C)
NON-ISOLATED DC/DC CONVERTERS
9.0 Vdc - 18 Vdc Input
5 Vdc - 12 Vdc/1A Output
100.0%
80.0%
Efficiency
60.0%
40.0%
20.0%
0.0%
0.100
0.250
Output current (A)
x7AH-01K500
OR
100.0%
90.0%
80.0%
70.0%
60.0%
50.0%
40.0%
30.0%
20.0%
10.0%
0.0%
NE
0.100
0.250
0.500
0.750
1.000
W
9V
12V
18V
x7AH-01K900
NO
100.0%
90.0%
80.0%
70.0%
60.0%
50.0%
40.0%
30.0%
20.0%
10.0%
0.0%
TF
0.100
0.250
x7AH-01KX20
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
DE
SIG
NS
9V
Efficiency Data
12V
18V
0.500
0.750
1.000
9V
12V
18V
0.500
0.750
1.000
NON-ISOLATED DC/DC CONVERTERS
9.0 Vdc - 18 Vdc Input
5 Vdc - 12 Vdc/1A Output
Vin=12 V, Vo=5 V
NO
TF
Vin=12 V, Vo=12 V
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
OR
NE
W
Vin=12 V, Vo=9 V
DE
SIG
NS

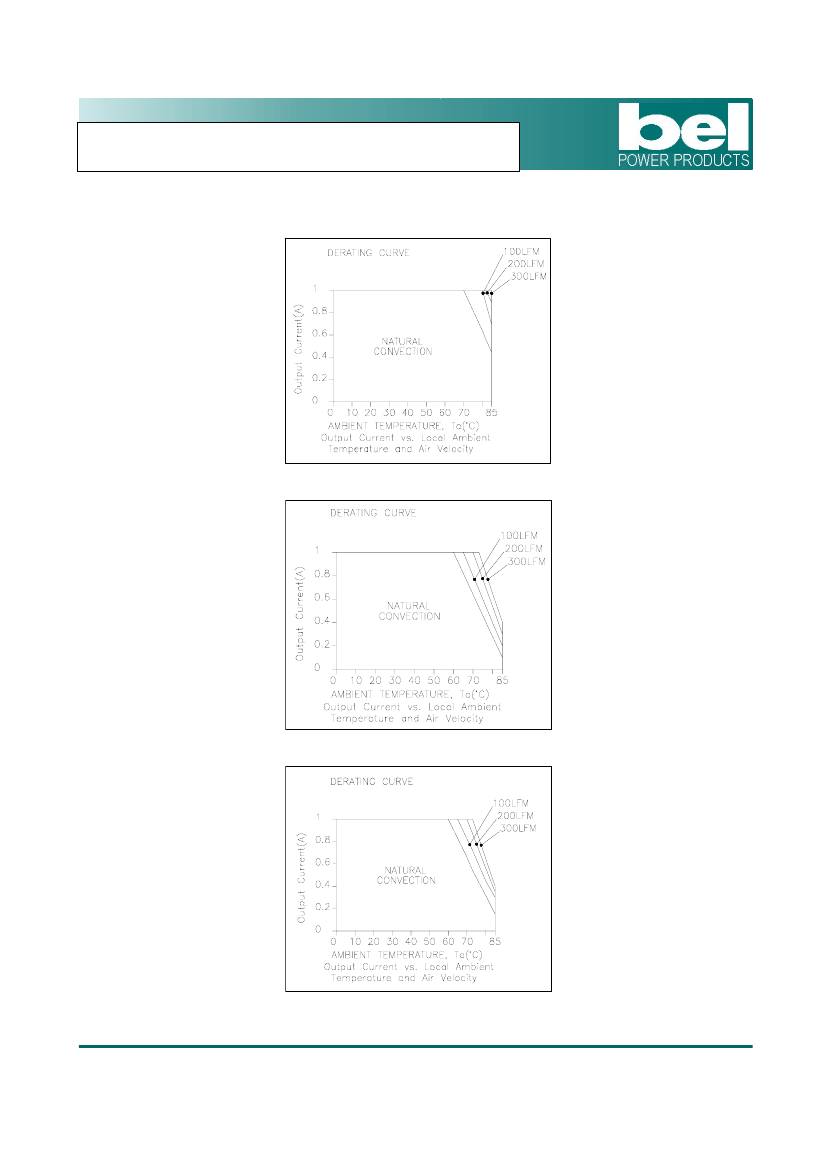

Thermal Derating Curves
