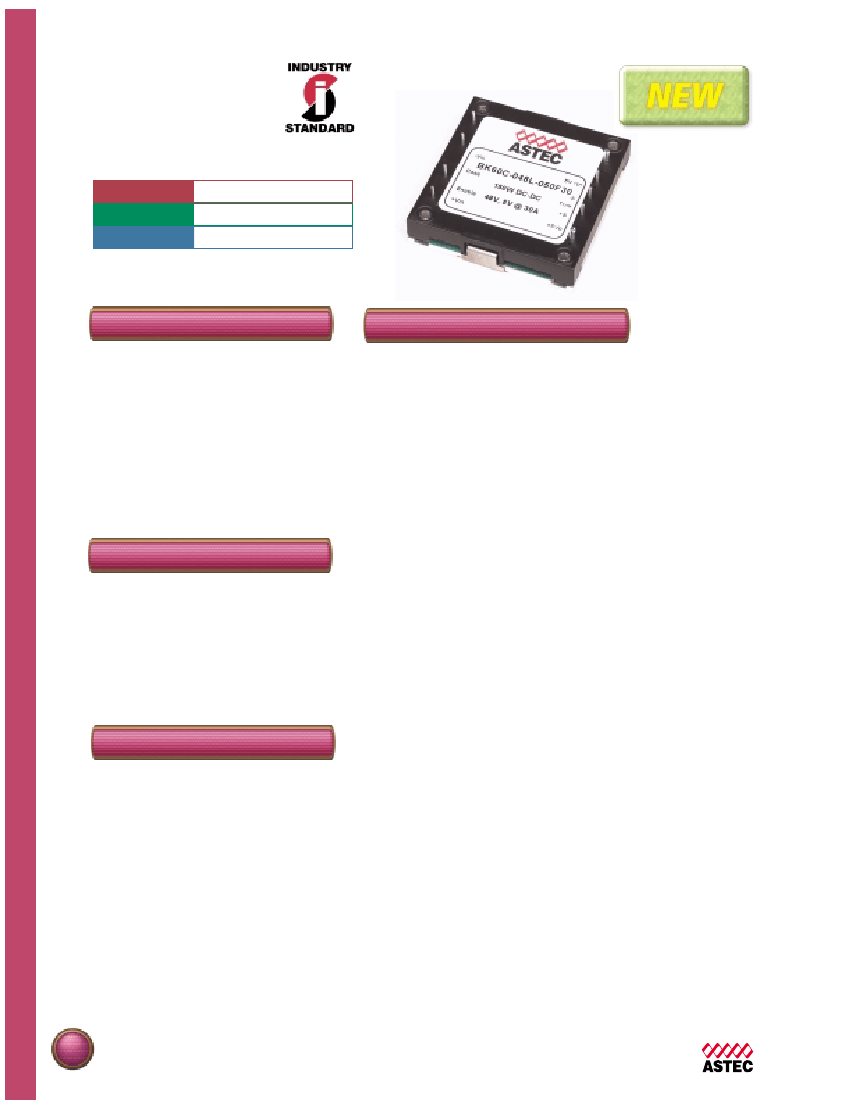

BK60C
150 Watts
BK60C Industry Standard Series
Total Power
Input Voltages
# of Outputs
150 Watts
48V
Single
S P E C I A L F E AT U R E S
•
•
•
•
•
•
•
•
•
Industry standard pin-out
and performance
100°C baseplate temperature
(no derating)
Positive and negative enable function
Low output ripple and noise
High capacitive load limit on start-up
Remote sense compensation
Basic insulation
Regulation to zero load
Fixed frequency switching
E L E C T R I C A L S P E C I F I C AT I O N S
Input
Input range ............................ 36-75 VDC
Input Surge ............................ 100V / 100ms
Efficiency ............................... 84%@5V
Control
Voltage Adjust ....................... 80 to 110%
Enable ................................... TTL compatible
(positive & negative enable options)
E N V I R O N M E N TA L
Operating temperature (baseplate):
-40°C to +100°C
Storage temperature: -55°C to +125°C
Overtemperature protection: 110°C typical
MTBF: >1 million hours
Output
Load regulation ..................... 0.2% max down to no load
..............................................
(5Vo or greater)
..............................................
10mV 3.3Vo and less
Line regulation ....................... 0.1% max (10mV 3.3Vo or less)
Ripple and noise ................... 150mV
Remote sense ....................... Up to 0.5% V
Transient Response .............. 5% max deviation with
..............................................
25% to 75% full load
..............................................
(output 5V and above)
..............................................
200mV (output below 5V)
..............................................
500
µS
(max) recovery
Overvoltage Protection .......... 130% nominal output
..............................................
(output 5V and above)
..............................................
160% nominal outpt
..............................................
(2.2V output)
..............................................
140% nominal output
..............................................
(3.3V output)
Current Limit .......................... 130% maximum output
Switching Frequency ............. 400kHz
SAFETY
UL
CSA
TUV
ETSI
UL1950, UL 1459
CSA22.2-234
CSA22.2-950
EN60950
300 132-2 para 4
BELLCORE
NEBs
NOTES:
Nominal values apply with sense pins connected
and other control pins unconnected.
Specifications subject to change without notice.
180
USA: 1-888-41-ASTEC
Europe (UK): +44(0)1384-842211
Asia (HK): 852-2437-9662
ASIA
6F., CDW Building
382-392 Castle Peak Road
Tsuen Wan, N.T., Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone:+44(0)1384-842211
Facsimile:+44(0)1384-843355
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
O R D E R I N G I N F O R M AT I O N
Input
Voltage
48V
48V
Output
Voltage
3.3V @ 30A
5.0V @ 30A
Model Number
D
C
D
C
P
BK60C-048L-033F30
BK60C-048L-050F30
O
W
E
R
NOTES:
Enable Function
"1" = negative logic enable (std, without "1 or 4" = no enable)
"4" = positive logic enable (std, without "1 or 4" = no enable)

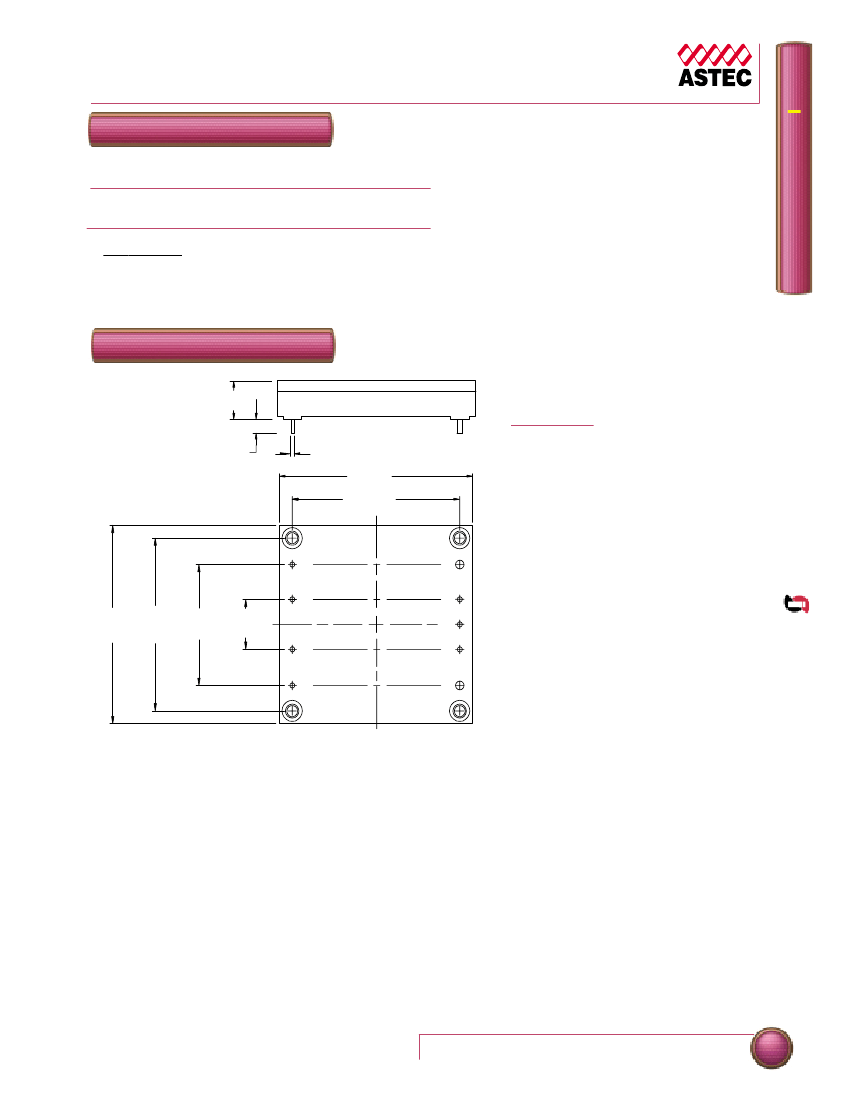

DIMENSIONS
.50
[12.7 ]
PIN ASSIGNMENTS
Single Output
.20 MIN.
[5.0]
NOTE
1
2.30
[58.4]
1.900
[48.26]
1.
2.
3.
4.
5.
6.
7.
8.
9.
5
-Vin
Case
Enable (on/off)
+Vin
-5V Rtn
- Sense
Trim
+ Sense
+5V Out
BK60C
1
2
2.40
[61.0]
2.000
[50.80]
1.400
[35.56]
.600
[15.24]
3
6
7
8
4
9
Mounting Inserts
M3 X .5 (4 places)
BOTTOM VIEW
NOTES
1. 20 mHz bandwidth. An external 2.2
µf
ceramic
capacitor is recommended to be placed from +V out
to -V out.
2. Requires a 2.2
µf,
100V film capacitor connected
between +V in and -V in to meet FCC class A and
ETS300-386-1 requirements for conducted noise.
Consult Factory for filtering information to meet FCC
class B, VDE or EIC specifications.
3. All specifications are typical at nominal line, full load,
and 25°C unless otherwise noted.
4. All specifications subject to change without notice.
Mechanical drawings are for reference only.
5. Please refer to the Technical Reference Notes for
more information.
Case Material: Metal base, plastic cover
Weight: 2.75 Oz / 78 Grms
Rev 01.04.00
www.astec.com
