This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0022282223
Active
2.54mm (.100") Pitch KK® Header, Breakaway, Right Angle, with Plastic Polarizing
Peg, 22 Circuits, 0.76µm (30µ") Gold (Au) Selective Plating
Documents:
3D Model
Packaging Specification (PDF)
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
42226
Wire-to-Board
KK®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
22
22
Black
100
94V-0
No
None
Brass
Gold
Tin
Nylon
1
Right Angle
0.120 In
3.05 mm
No
None
0.062 In
1.60 mm
Bag
0.100 In
2.54 mm
30
0.75
100
2.5
No
No
No
No
0°C to +75°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
42226S
Mates
2695 ,
Electrical
Current - Maximum per Contact
Voltage - Maximum
4A
250V
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-free Process Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
5
Wave Capable (TH only)
1
235
Material Info
Old Part Number
42226-0092
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-10-07
SD-42226-001
This document was generated on 04/12/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
A-42226-0002/0036
HEADER NUMBER:
41410
PIN NUMBER:
42663-CCA154
PIN LENGTH: L
.670/17.02
MATING LENGTH: M
.295/7.49
GOLD POINT: G
N/A
PC TAIL LENGTH: P
.120/3.05
TIN: T
OVERALL
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
NO
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-2020 A-42226-0002 20 22-28-2200 A-42226-0020
03 22-28-2030 A-42226-0003 21 22-28-2210 A-42226-0021
04 22-28-2040 A-42226-0004 22 22-28-2220 A-42226-0022
05 22-28-2050 A-42226-0005 23 22-28-2230 A-42226-0023
06 22-28-2060 A-42226-0006 24 22-28-2240 A-42226-0024
07 22-28-2070 A-42226-0007 25 22-28-2250 A-42226-0025
08 22-28-2080 A-42226-0008 26 22-28-2260 A-42226-0026
09 22-28-2090 A-42226-0009 27 22-28-2270 A-42226-0027
10 22-28-2100 A-42226-0010 28 22-28-2280 A-42226-0028
11 22-28-2110 A-42226-0011 29 22-28-2290 A-42226-0029
12 22-28-2120 A-42226-0012 30 22-28-2300 A-42226-0030
13 22-28-2130 A-42226-0013 31 22-28-2310 A-42226-0031
14 22-28-2140 A-42226-0014 32 22-28-2320 A-42226-0032
15 22-28-2150 A-42226-0015 33 22-28-2330 A-42226-0033
16 22-28-2160 A-42226-0016 34 22-28-2340 A-42226-0034
17 22-28-2170 A-42226-0017 35 22-28-2350 A-42226-0035
18 22-28-2180 A-42226-0018 36 22-28-2360 A-42226-0036
19 22-28-2190 A-42226-0019
REV:
TITLE:
A-42
HEADER NUMBER:
PIN NUMBER:
PIN LENGTH: L
MATING LENGTH: M
GOLD POINT: G
PC TAIL LENGTH: P
TIN: T
DIMENSION Y
CKTS:
KINKS:
REMOVED BACKWALLS:
VOIDED CKTS:
PACKAGING:
MATERIAL
ENG
CKTS
NUMBER
NUMB
02
22-28-2022 A-42226
03
22-28-2032 A-42226
04
22-28-2042 A-42226
05
22-28-2052 A-42226
06
22-28-2062 A-42226
07
22-28-2072 A-42226
08
22-28-2082 A-42226
09
22-28-2092 A-42226
10
22-28-2102 A-42226
11
22-28-2112 A-42226
12
22-28-2122 A-42226
13
22-28-2132 A-42226
14
22-28-2142 A-42226
15
22-28-2152 A-42226
16
22-28-2162 A-42226-
17
22-28-2172 A-42226
18
22-28-2182 A-42226
19
22-28-2192 A-42226
J

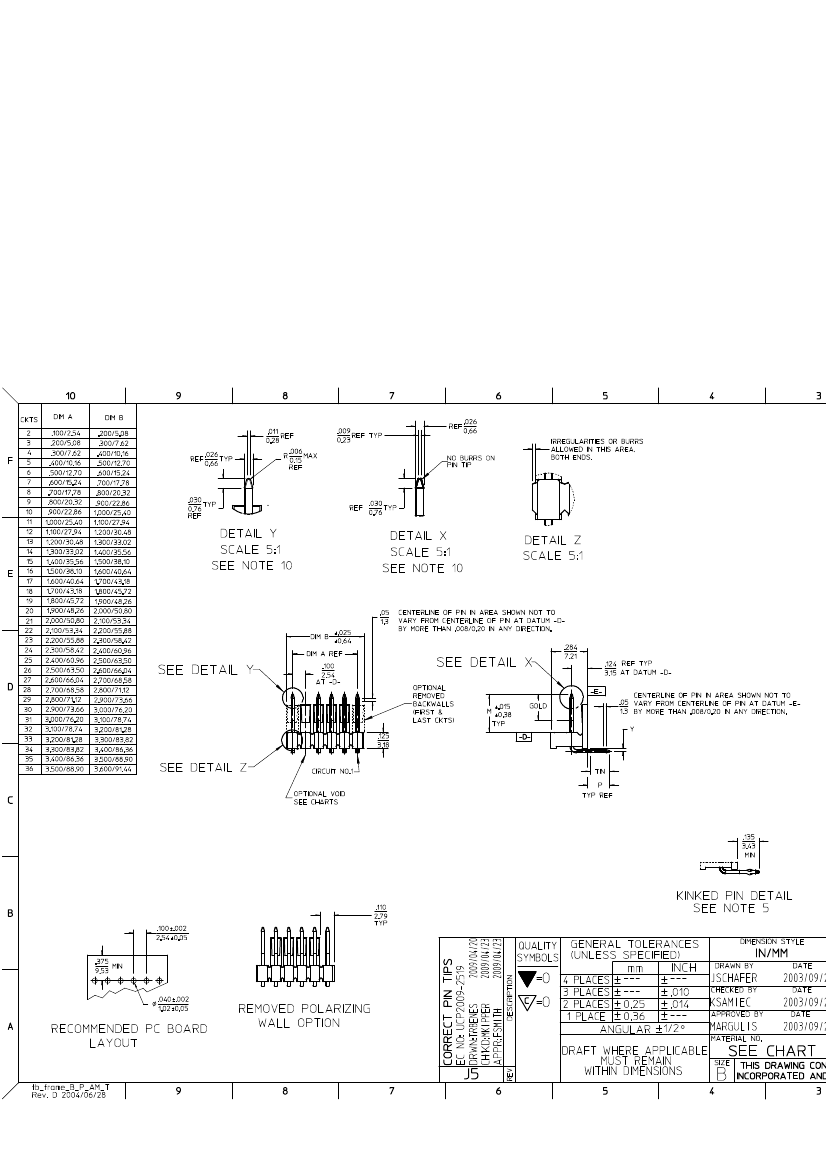

DOCUMENT NUMBER:
.100 POLARIZING
BREAKAWAY HEADER ASS
CREATED / REVISED BY:
CHECKED BY:
SD- 42226 -001
S. LINEHAN 03/04/2004
K.SAMIEC 03/04/2003
TE
A-42226-0072/0106
HEADER NUMBER:
41410
PIN NUMBER:
42663-CCB228
PIN LENGTH: L
.670/17.02
MATING LENGTH: M
.295/7.49
GOLD POINT: G
.140/3.56
PC TAIL LENGTH: P
.120/3.05
TIN: T
.135/3.43
DIMENSION Y
.022/0.56
CKTS:
2-36
KINKS:
NO
REMOVED BACKWALLS:
NO
VOIDED CKTS:
NONE
PACKAGING:
BULK 40873-0056
MATERIAL
ENG
MATERIAL
ENG
CKTS
CKTS
NUMBER
NUMBER
NUMBER
NUMBER
02 22-28-2023 A-42226-0072 20 22-28-2203 A-42226-0090
03 22-28-2033 A-42226-0073 21 22-28-2213 A-42226-0091
04 22-28-2043 A-42226-0074 22 22-28-2223 A-42226-0092
05 22-28-2053 A-42226-0075 23 22-28-2233 A-42226-0093
06 22-28-2063 A-42226-0076 24 22-28-2243 A-42226-0094
07 22-28-2073 A-42226-0077 25 22-28-2253 A-42226-0095
08 22-28-2083 A-42226-0078 26 22-28-2263 A-42226-0096
09 22-28-2093 A-42226-0079 27 22-28-2273 A-42226-0097
10 22-28-2103 A-42226-0080 28 22-28-2283 A-42226-0098
11 22-28-2113 A-42226-0081 29 22-28-2293 A-42226-0099
12 22-28-2123 A-42226-0082 30 22-28-2303 A-42226-0100
13 22-28-2133 A-42226-0083 31 22-28-2313 A-42226-0101
14 22-28-2143 A-42226-0084 32 22-28-2323 A-42226-0102
15 22-28-2153 A-42226-0085 33 22-28-2333 A-42226-0103
16 22-28-2163 A-42226-0086 34 22-28-2343 A-42226-0104
17 22-28-2173 A-42226-0087 35 22-28-2353 A-42226-0105
18 22-28-2183 A-42226-0088 36 22-28-2363 A-42226-0106
19 22-28-2193 A-42226-0089
REV:
TITLE:
A-42
HEADER NUMBER:
PIN NUMBER:
PIN LENGTH: L
MATING LENGTH: M
GOLD POINT: G
PC TAIL LENGTH: P
TIN: T
DIMENSION Y
CKTS:
KINKS:
REMOVED BACKWALLS:
VOIDED CKTS:
PACKAGING:
MATERIAL
ENG
CKTS
NUMBER
NUMB
02
22-28-2024 A-42226
03
22-28-2034 A-42226
04
22-28-2044 A-42226
05
22-28-2054 A-42226
06
22-28-2064 A-42226
07
22-28-2074 A-42226
08
22-28-2084 A-42226
09
22-28-2094 A-42226
10
22-28-2104 A-42226
11
22-28-2114 A-42226
12
22-28-2124 A-42226
13
22-28-2134 A-42226
14
22-28-2144 A-42226
15
22-28-2154 A-42226
16
22-28-2164 A-42226-
17
22-28-2174 A-42226
18
22-28-2184 A-42226
19
22-28-2194 A-42226
J
DOCUMENT NUMBER:
.100 POLARIZING
BREAKAWAY HEADER ASS
CREATED / REVISED BY:
CHECKED BY:
SD- 42226 -001
S. LINEHAN 03/04/2004
K.SAMIEC 03/04/2003
TE
