MV22V2CD155.520MHZ datasheet, PDF

MV22V2CD155.520MHZ: DescriptionOscillator, 1.5MHz Min, 155.52MHz Max, 155.52MHz Nom; CategoryPassive components oscillator; File Size82KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MV22V2CD155.520MHZ Overview

Oscillator, 1.5MHz Min, 155.52MHz Max, 155.52MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
Installation features	THROUGH HOLE MOUNT
Number of terminals	4
Maximum operating frequency	155.52 MHz
Minimum operating frequency	1.5 MHz
Nominal operating frequency	155.52 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	METAL
Encapsulate equivalent code	DIP4/14,.3
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	90 mA
Nominal supply voltage	5 V
surface mount	NO

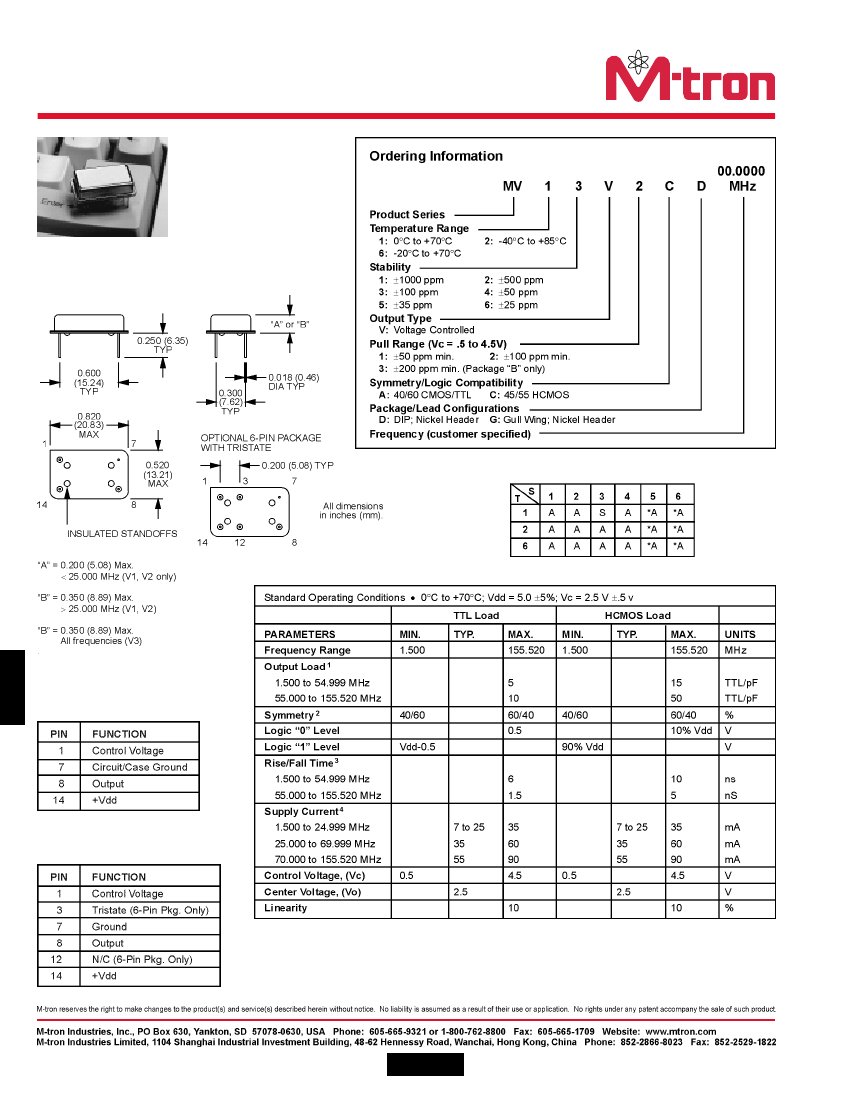

MV Series HCMOS/TTL Compatible Voltage

Controlled Crystal Oscillators (VCXO)

MV Series Voltage Controlled HCMOS/TTL

Compatible Clock Oscillator

Available Stabilities vs. Temperature

A = Available

S = Standard

Electrical Specifications

* Contact factory for availability above 25.000 MHz.

* See page 135 for gull wing configuration.

Pin Connections

TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

This parameter is frequency dependent and measured between 0.5 V and 2.4 V with TTL load, and at 50% Vdd with HCMOS load.

This parameter is frequency and load dependent.

See page 135, Figure 2 for typical phase noise graph.

See page 135, Figure 3 for pull range graph.

See page 136 for suggested soldering conditions.
