RB1A-48HSF: DescriptionPower/Signal Relay, SPST, Momentary, 0.008A (Coil), 48VDC (Coil), 360mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size631KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

RB1A-48HSF Overview

Power/Signal Relay, SPST, Momentary, 0.008A (Coil), 48VDC (Coil), 360mW (Coil), DC Input, AC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RB1A-48HSF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	16.6 mm
body height	20.6 mm
Body length or diameter	20.3 mm
Maximum coil current (DC)	0.008 A
Coil operating voltage (DC)	36 V
Coil power	360 mW
Coil release voltage (DC)	2.4 V
Coil resistance	6400 Ω
Maximum coil voltage (DC)	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	15A@250VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	250 V
Contact/Output Power Type	AC
Electrical life	100000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	15 ms
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	20.3mm x 16.6mm x 20.6mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	5 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

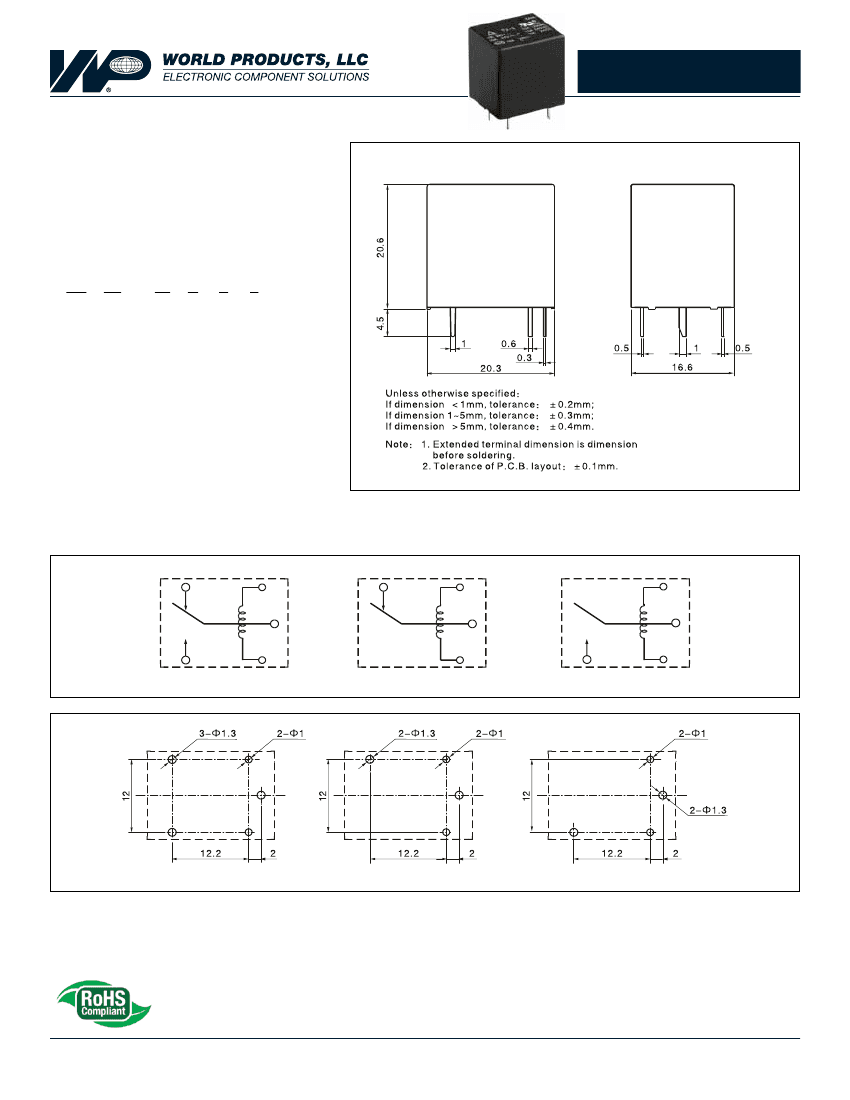

RB SERIES

INDUSTRIAL RELAYS

UL & CUL File# E256619

FEATURES

15A high switching capability.

Sealed type available.

Low coil power consumption.

TV rating certified.

DIMENSIONS

Unit: mm

ORDERING INFORMATION

(1)

(2)

1A -

(2)

(3)

(4)

(5)

(6)

Basic Designation

= RB Series

Coil Arrangement

= 1 Form A

= 1 Form B

= 1 Form C

Coil Voltage

3~48V

Coil Sensitivity

Nil

= 0.45W

= 0.36W

Enclosure

Nil

= Unsealed type

= Sealed type

Insulation System

Nil

= Standard

= Class F

(5)

(3)

(6)

SCHEMATICS

Bottom view

Unit: mm

PCB LAYOUT

Bottom view

Unit: mm

World Products, LLC

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 17.9 (10.20.10)
