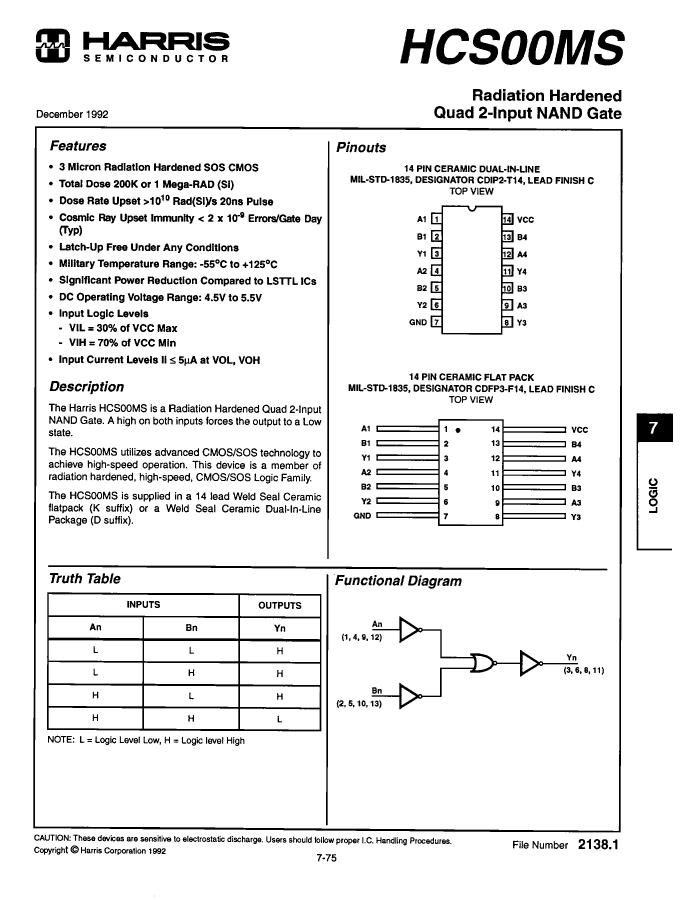

HCS00KMSH datasheet, PDF - EEWORLD Datasheet

HCS00KMSH: DescriptionNAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14; Categorylogic logic; File Size207KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

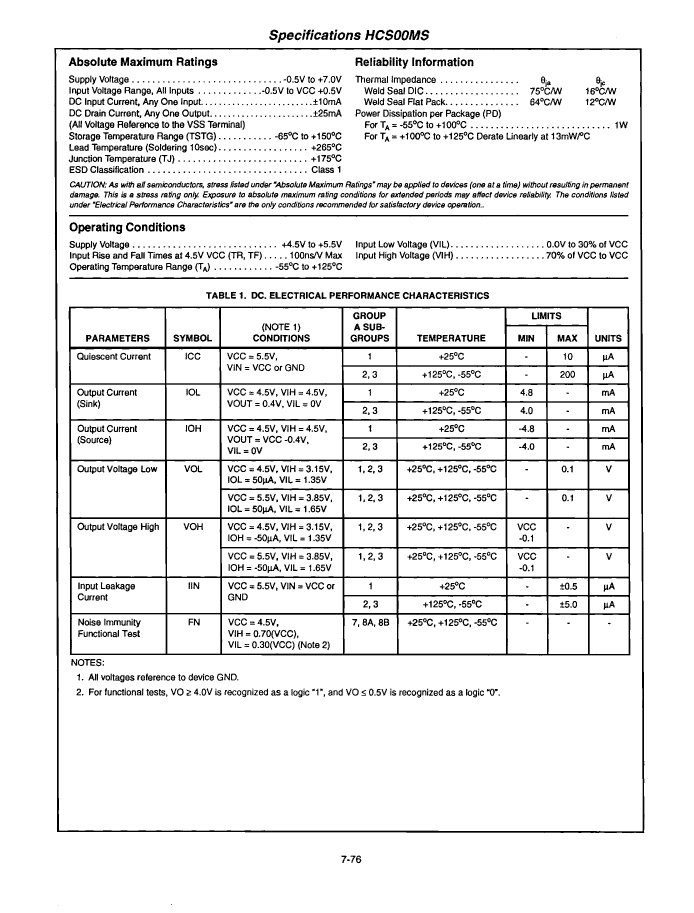

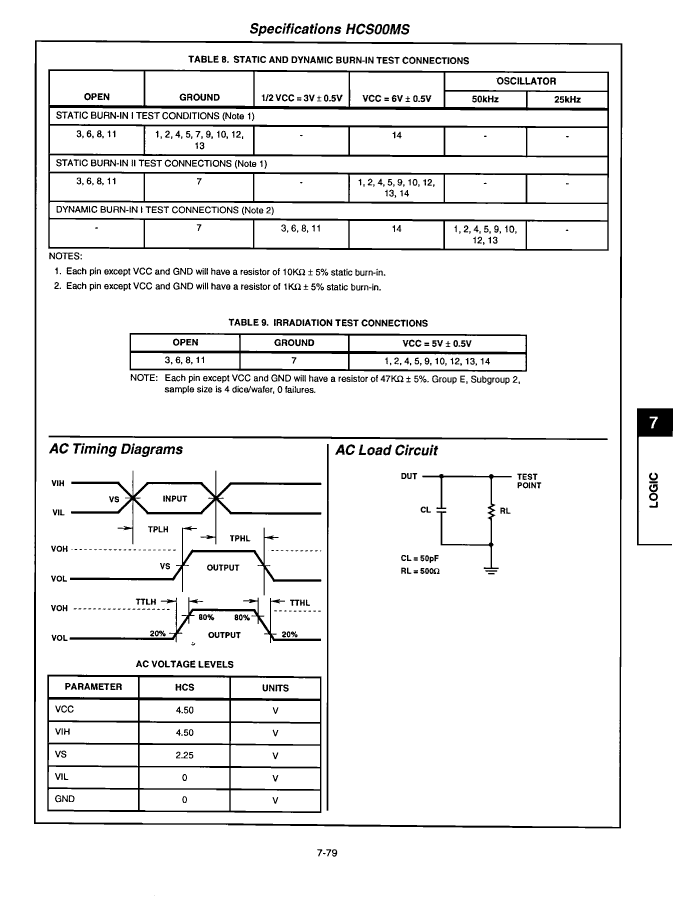

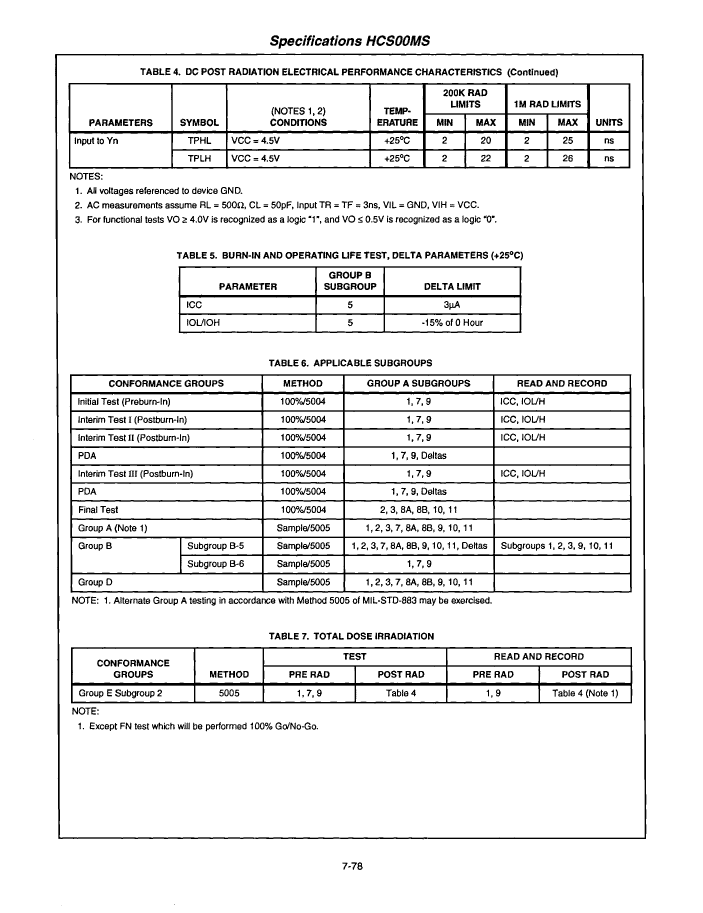

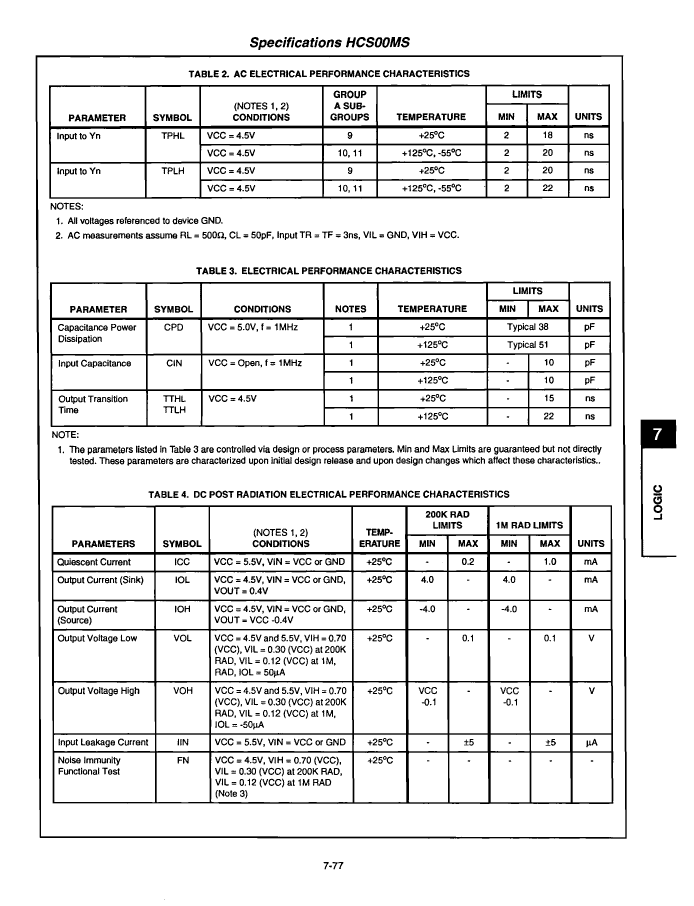

HCS00KMSH Overview

NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DFP, FL14,.3
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH
JESD-30 code	R-CDFP-F14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Prop。Delay @ Nom-Sup	26 ns
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	200k Rad(Si) V

	HCS00KMSH	HCS00DMSH
Description	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDFP14	NAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DFP, FL14,.3	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHONOLOGY
series	HC/UH	HC/UH
JESD-30 code	R-CDFP-F14	R-CDIP-T14
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE
MaximumI(ol)	0.004 A	0.004 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	SOP
Encapsulate equivalent code	FL14,.3	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	26 ns	26 ns
propagation delay (tpd)	25 ns	25 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Filter level	38535V;38534K;883S	MIL-STD-883 Class S (Modified)
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	200k Rad(Si) V	1M Rad(Si) V
