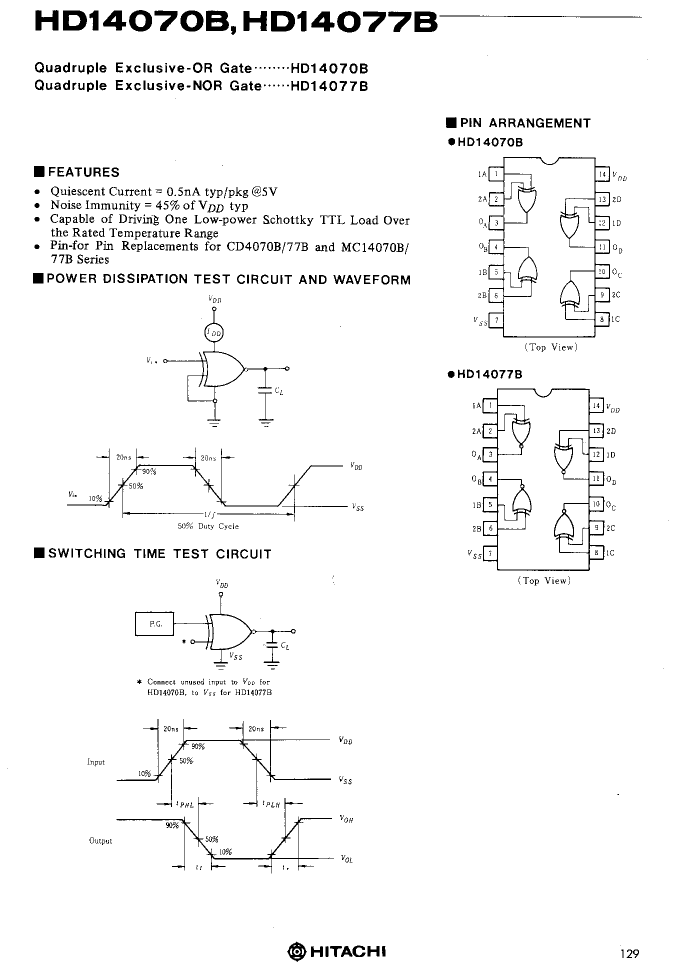

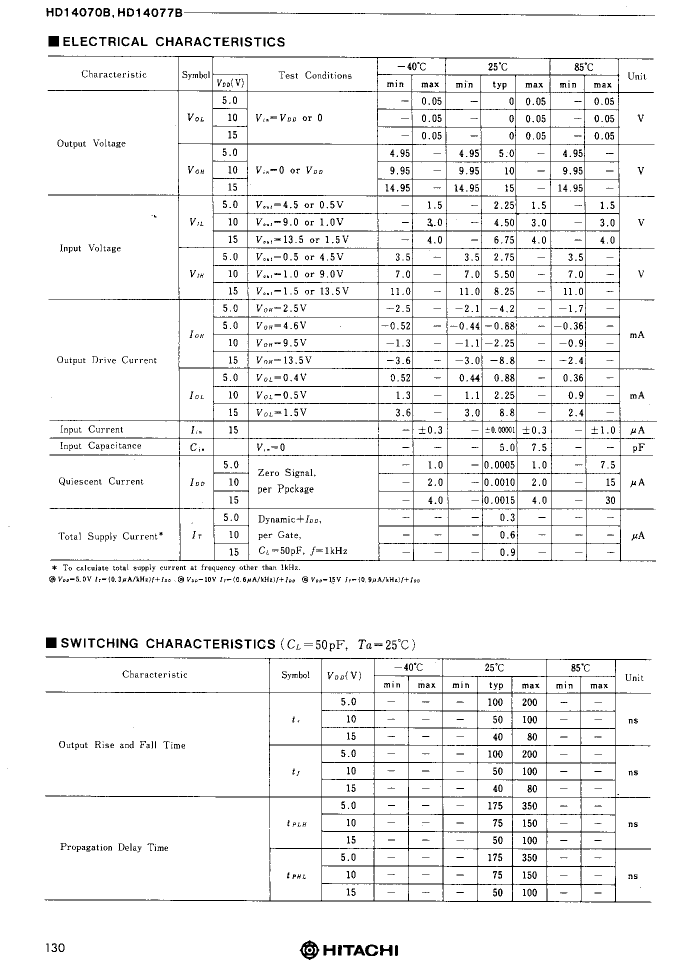

HD14070BRP datasheet, PDF - EEWORLD Datasheet

HD14070BRP: DescriptionXOR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, PDSO14, FP-14DN; Categorylogic logic; File Size65KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric View All

HD14070BRP Overview

XOR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, PDSO14, FP-14DN

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	XOR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	350 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
