M24308/4-14 datasheet, PDF - EEWORLD Datasheet

M24308/4-14: DescriptionD SUBMINIATURE CONNECTOR; CategoryThe connector The connector; File Size189KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

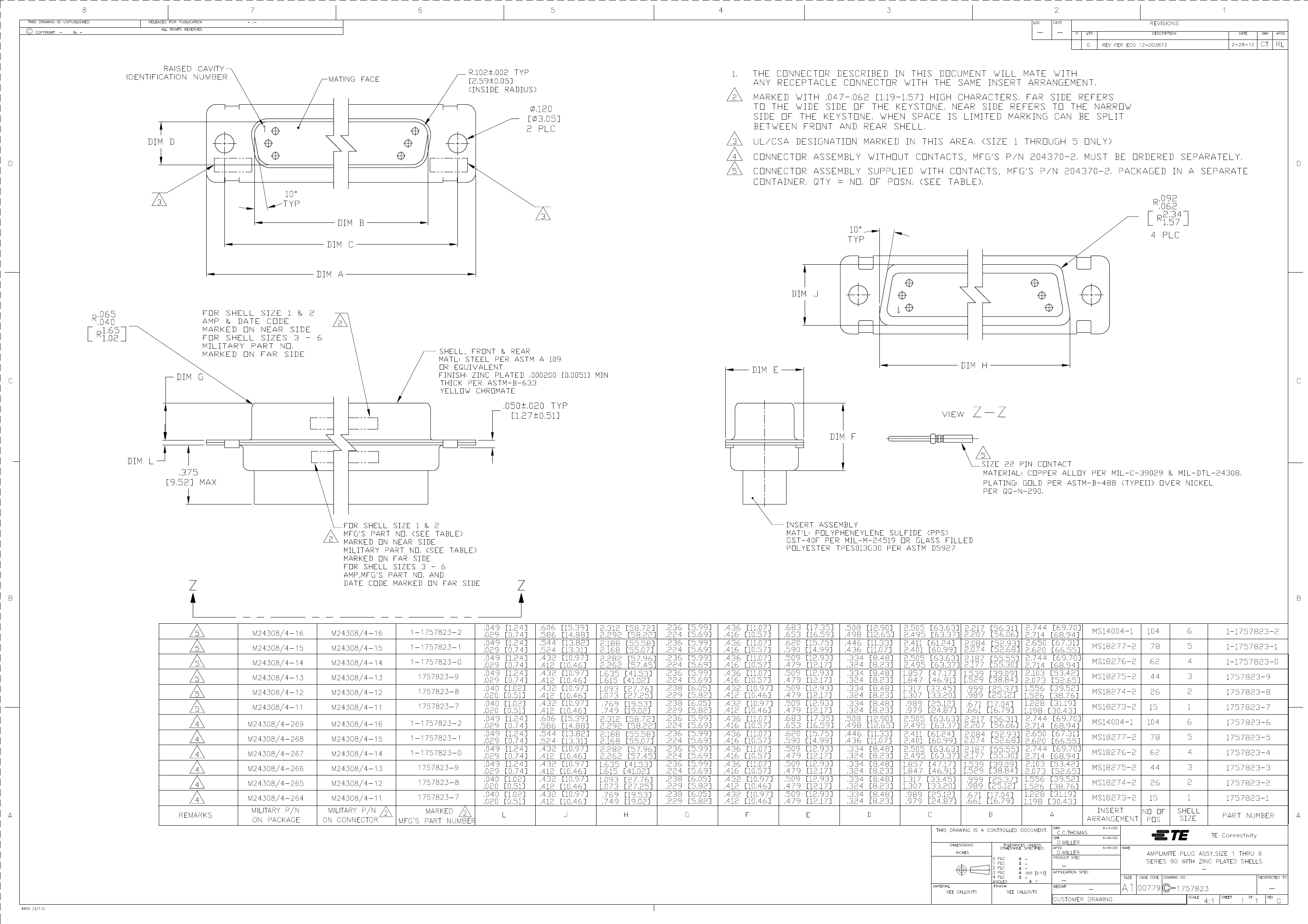

M24308/4-14 Overview

D SUBMINIATURE CONNECTOR

Parameter Name	Attribute value
Objectid	1550437621
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Conn High Density D-Sub PIN 62 POS Crimp ST Cable Mount 62 Terminal 1 Port
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-24 14:18:42
body width	0.509 inch
subject depth	0.2 inch
body length	2.744 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact style	RND PIN-SKT
MIL compliance	YES
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL, CSA
Shell surface	ZINC
Shell material	STEEL
Housing size	4/C
Termination type	CRIMP
Total number of contacts	62

	M24308/4-14	M24308/4-269	M24308/4-11
Description	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PLUG
Reach Compliance Code	unknown	unknown	unknown
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Body/casing type	PLUG	-	PLUG
Contact to complete cooperation	AU ON NI	-	NOT SPECIFIED
Contact point gender	MALE	-	MALE
Contact material	COPPER ALLOY	-	NOT SPECIFIED
MIL compliance	YES	-	YES
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
Shell surface	ZINC	-	ZINC YELLOW CHROMATE
Shell material	STEEL	-	STEEL
Housing size	4/C	-	1/E
Total number of contacts	62	-	15
Maker	-	TE Connectivity	TE Connectivity
Manufacturer's serial number	-	M24308/4	M24308/4
