FP5131: Description5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4; CategoryWireless rf/communication Radio frequency and microwave; File Size630KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

FP5131 Overview

5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	17 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	1300 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

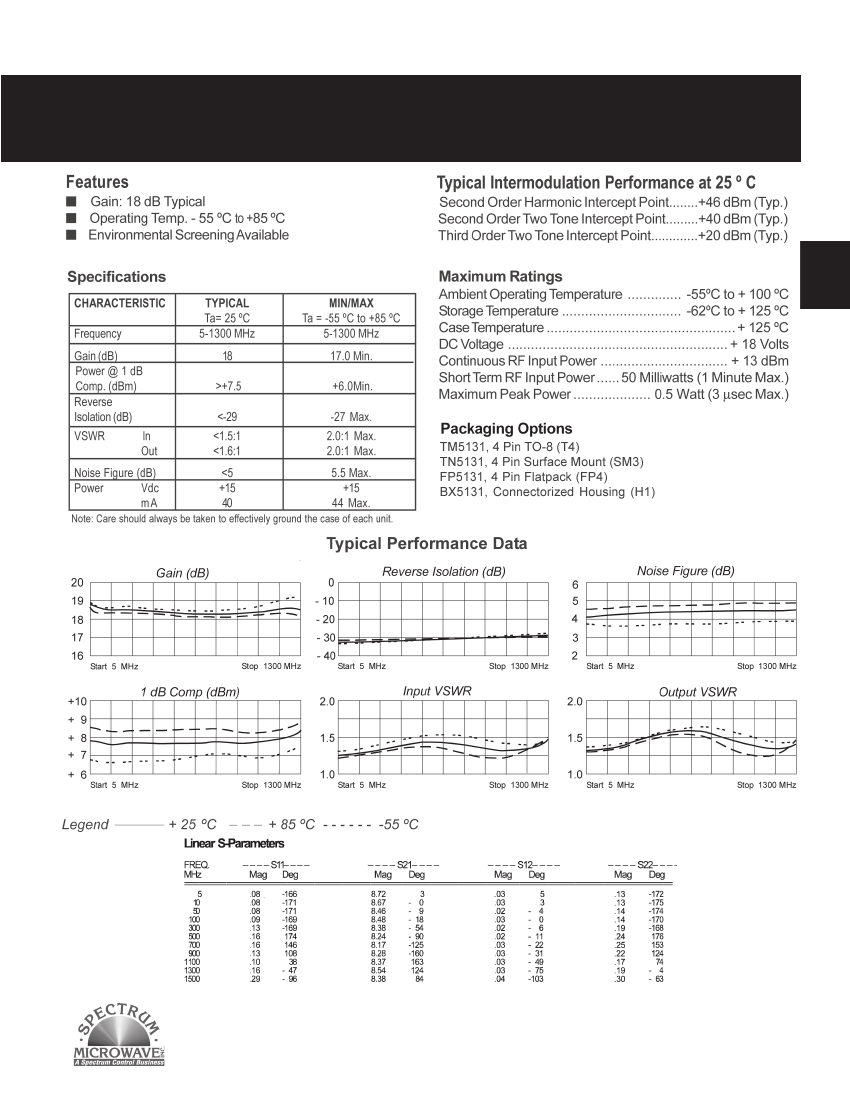

RF Amplifier

Gain: 18 dB

Model TM5131

5 to 1300 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

199

Amplifiers

	FP5131	BX5131	TM5131	TN5131
Description	5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, FP-4	5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1	5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	5 MHz - 1300 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM3, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT
Gain	17 dB	17 dB	17 dB	17 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	1300 MHz	1300 MHz	1300 MHz	1300 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2
