EURO
QUARTZ
SMD 11.4 x 9.6mm package
Frequency range 1MHz to 133MHz
Factory programmable for quick delivery
Supply voltage 5.0 Volts or 3.3 Volts
XOPL71 Series Oscillators
11.4 x 9.6mm Programmable LVPECL Oscillator
DESCRIPTION

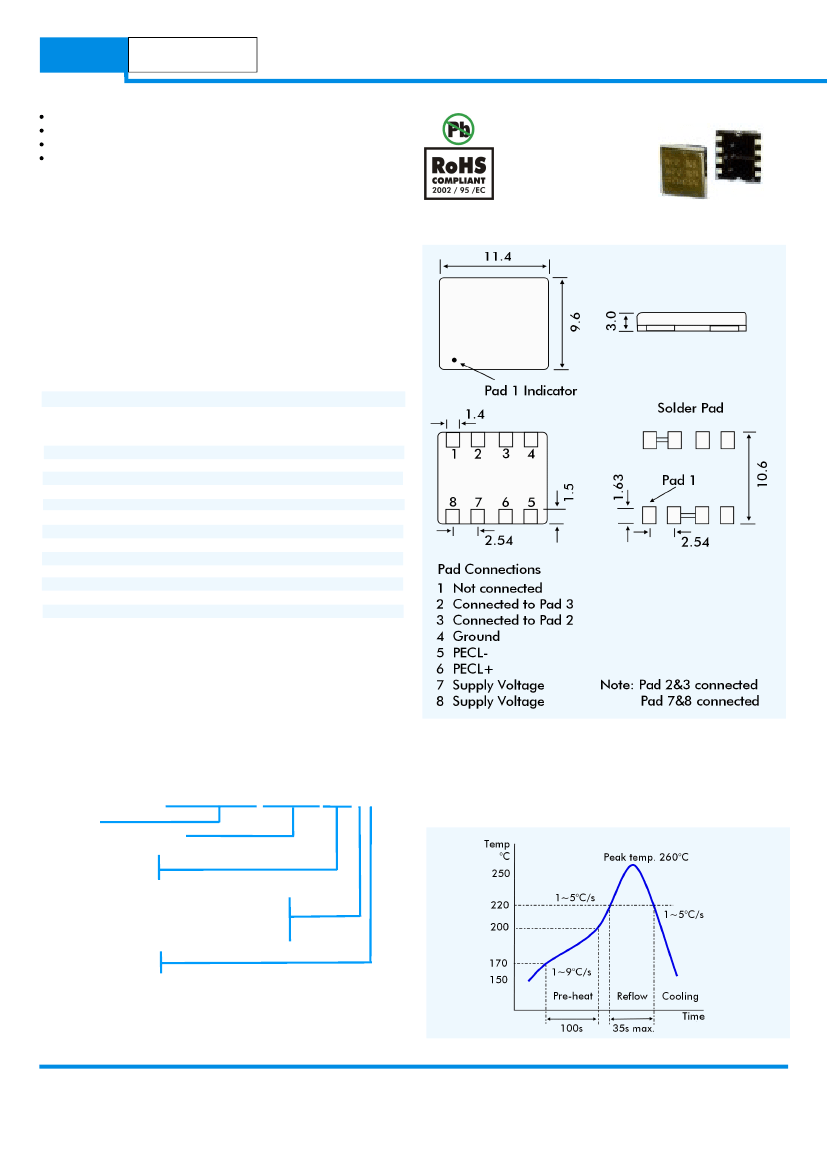

OUTLINE & DIMENSIONS
XOPL71 programmable oscillators provide differential output LVPECL
signals in a miniature, low-profile 11.4 x 9.6mm package. As such the
parts are ideal for applications including serial communications,
routers, switches, WAN interfaces and test equipment. The factory
programmable parts ensure quick delivery to customer's
requirements.
SPECIFICATION
Frequency Range:
Frequency Stability
Commercial:
Industrial:
Supply Voltage:
Operating Temperature
Commercial:
Extended Commercial:
Industrial:
Storage Temperature:
Symmetry:
Start-up Time:
Ageing:
Static Discharge Voltage:
Supply Current:
Output Voltage:
Rise/Fall Time:
1.0MHz to 133.0MHz
±50ppm or ±100ppm 0° to +70°C
±50ppm or ±100ppm -40° to +85°C
+5.0 Volts±5% or +3.3 Volts ±5%
0° to +70°C
-20° to +70°C
-40° to +85°C
-55° to +125°C
45/55%
3ms typical, 10ms maximum
±5ppm in first year of use
2000V
40mA maximum
PECL
0.6ns typical, 1.5ns maximum
PART NUMBERING
Example:
100.00MHz XOPL71050CA
SOLDER TEMPERATURE PROFILE
Frequency
Series Designation XOPL71
Stability
100 = ±100ppm
050 = ±50ppm
Operating Temp. Range
C = Commercial = (0°~70°C
D = Extended Commercial = -20° ~ 70°C
I = Industrial = -40°~+85°C
Supply Voltage
Blank = 5.0Volts
A = 3.3 Volts
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
