MCM63Z936ZP8R datasheet, PDF - EEWORLD Datasheet

MCM63Z936ZP8R: DescriptionZBT SRAM, 512KX36, 8ns, CMOS, PBGA119, PLASTIC, BGA-119; Categorystorage storage; File Size2MB，35 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

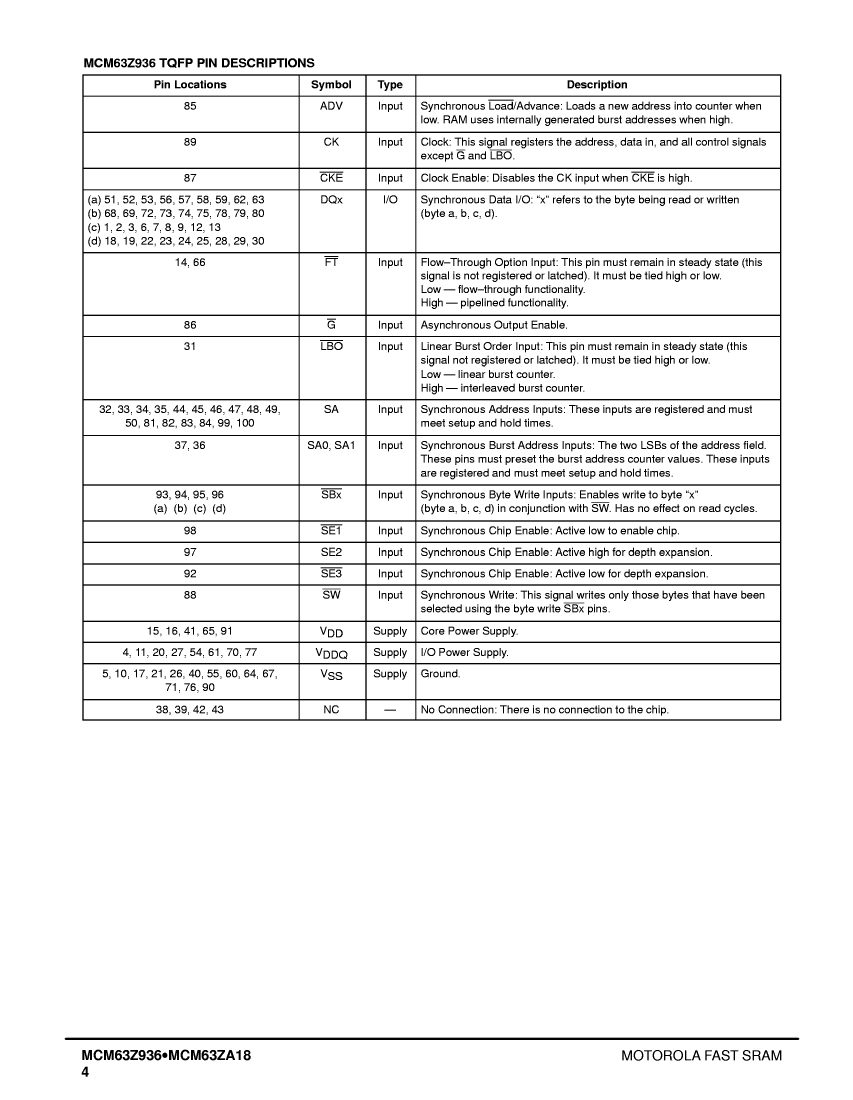

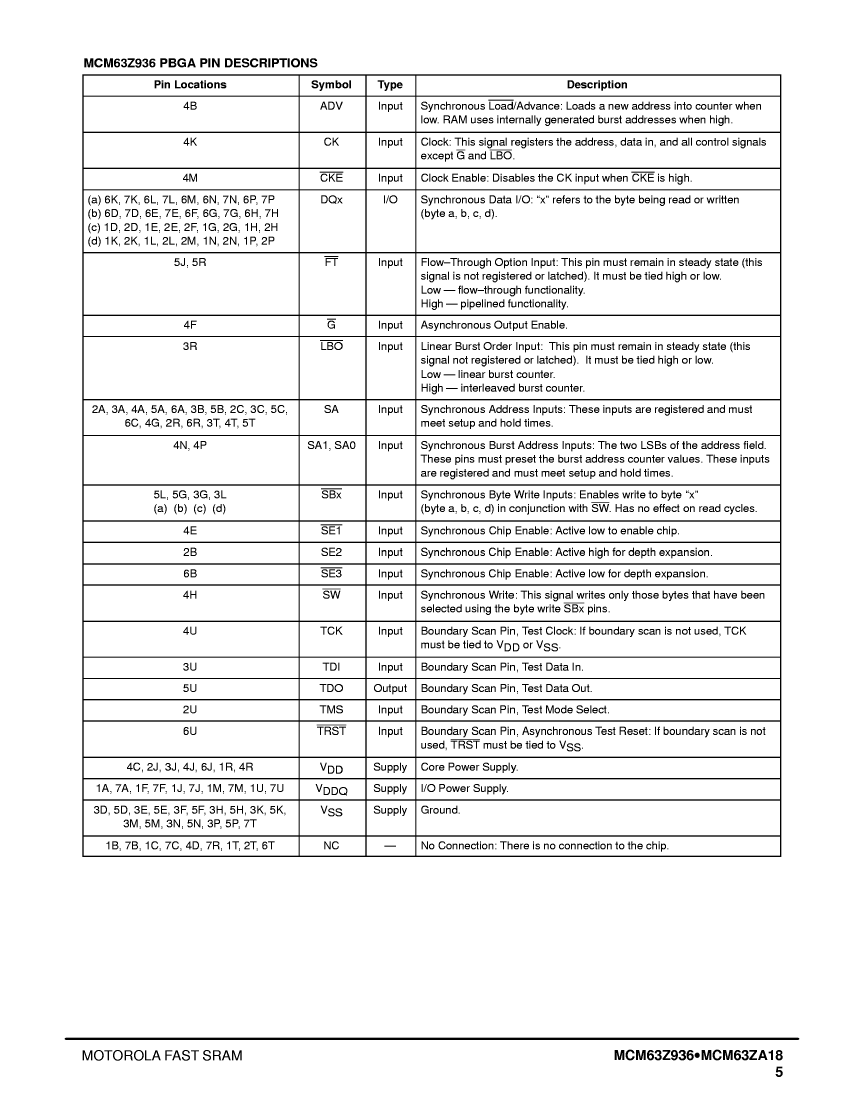

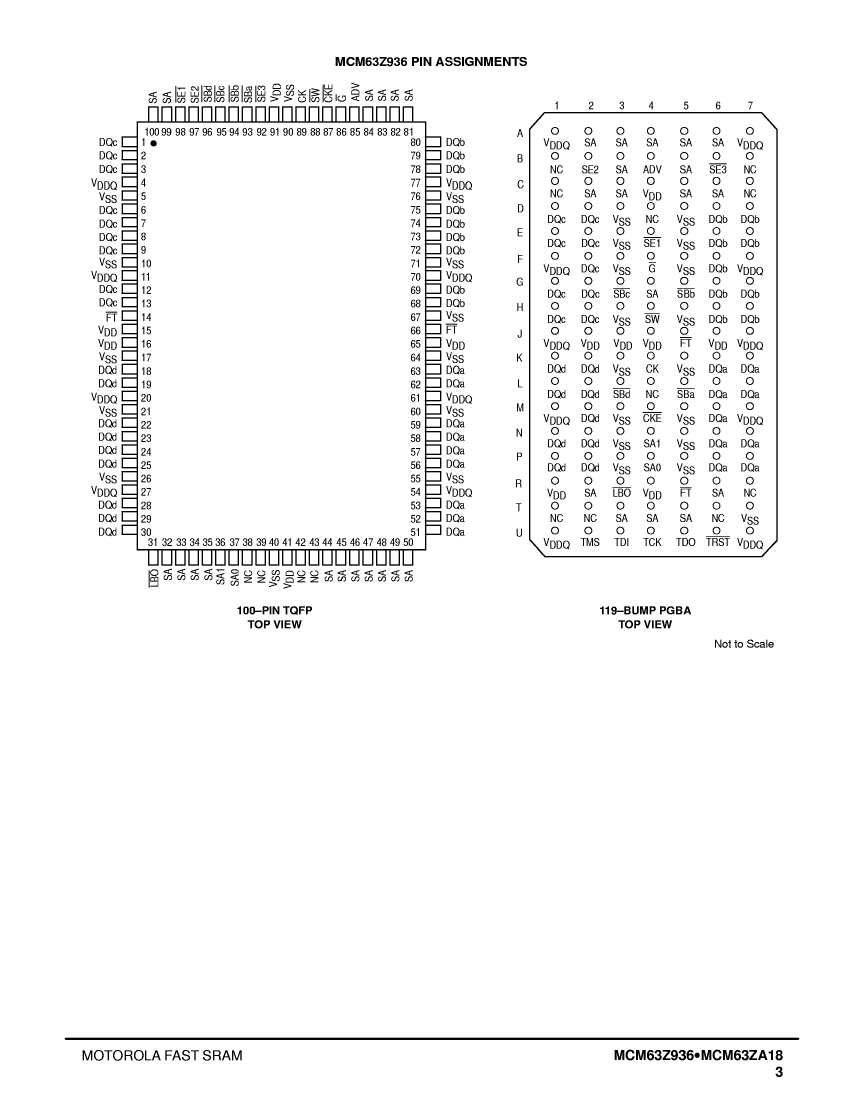

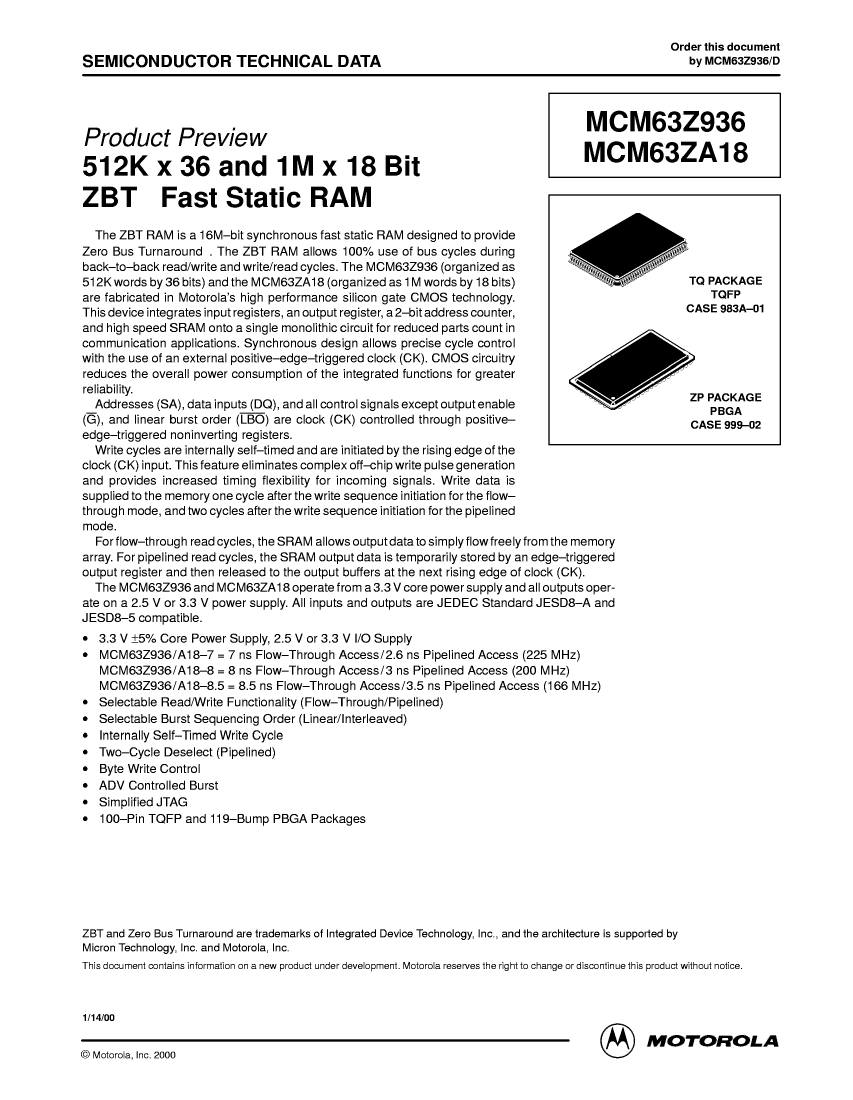

MCM63Z936ZP8R Overview

ZBT SRAM, 512KX36, 8ns, CMOS, PBGA119, PLASTIC, BGA-119

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	BGA, BGA119,7X17,50
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	8 ns
Other features	ALSO REQUIRE 2.5 OR 3.3 V I/O SUPPLY
I/O type	COMMON
JESD-30 code	R-PBGA-B119
JESD-609 code	e0
length	22 mm
memory density	18874368 bit
Memory IC Type	ZBT SRAM
memory width	36
Number of functions	1
Number of terminals	119
word count	524288 words
character code	512000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX36
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Encapsulate equivalent code	BGA119,7X17,50
Package shape	RECTANGULAR
Package form	GRID ARRAY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.5/3.3,3.3 V
Certification status	Not Qualified
Maximum seat height	2.4 mm
Maximum standby current	0.01 A
Minimum standby current	3.14 V
Maximum slew rate	0.29 mA
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	BALL
Terminal pitch	1.27 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
