Ordering number : ENA1092A
2SC5536A
SANYO Semiconductors
DATA SHEET
2SC5536A
Features
•
•
•
•
NPN Epitaxial Planar Silicon Transistor
VHF Low-Noise Amplifier,
OSC Applications
Low-noise
: NF=1.8dB typ (f=150MHz)
2
High gain
:
⏐
S21e
⏐
=16dB typ (f=150MHz)
Ultrasmall, slim flat-lead package (1.4mm×0.8mm×0.6mm)
Halogen free compliance
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
PC
Tj
Tstg
Conditions
Ratings
20
12
2
50
100
150
-
-55 to +150
Unit
V
V
V
mA
mW
°C
°C
Package Dimensions
unit : mm (typ)
7029A-002
1.4
0.3
0.25
3
0 to 0.02
0.1
Product & Package Information
• Package
: SSFP
• JEITA, JEDEC
: SC-81
• Minimum Packing Quantity : 8,000 pcs./reel
2SC5536A-TL-H
Packing Type: TL
Marking
1.4
0.8
LOT No.
LOT No.
0.3
1
2
MA
0.45
0.6
0.2
TL
Electrical Connection
1
2
0.07
1 : Base
2 : Emitter
3 : Collector
1
3
0.07
3
SANYO : SSFP
2
http://semicon.sanyo.com/en/network
71112 TKIM/42110AB TKIM TC-00002325 No. A1092-1/7
2SC5536A
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Output Capacitance
Reverse Transfer Capacitance
Forward Transfer Gain
Noise Figure
Symbol
ICBO
IEBO
hFE1
hFE2
fT
Cob
Cre
⏐S21e⏐
NF
2
Conditions
VCB=10V, IE=0A
VEB=1V, IC=0A
VCE=2V, IC=3mA
VCE=2V, IC=50mA
VCE=2V, IC=3mA
VCB=10V, f=1MHz
VCE=2V, IC=3mA, f=150MHz
Ratings
min
typ
max
1.0
10
80
70
1.0
1.7
1.1
0.8
13
16
1.8
3.0
1.8
200
Unit
μA
μA
GHz
pF
pF
dB
dB
Ordering Information
Device
2SC5536A-TL-H
Package
SSFP
Shipping
8,000pcs./reel
memo
Pb Free and Halogem Free
60
IC -- VCE
400
μ
A
360
μ
A
320
μ
A
20
18
IC -- VCE
140
μ
A
120
μ
A
100
μ
A
80
μ
A
60
μ
A
50
Collector Current, IC -- mA
Collector Current, IC -- mA
16
14
12
10
8
6
4
2
0
40
280
μ
A
30
240
μ
A
200
μ
A
160
μ
A
120
μ
A
80
μ
A
40
μ
A
IB=0μA
0
0.5
1.0
1.5
2.0
2.5
3.0
IT14226
20
40
μ
A
20
μ
A
10
0
IB=0μA
0
2
4
6
8
10
IT14227
Collector-to-Emitter Voltage, VCE -- V
1000
7
5
hFE -- IC
Collector-to-Emitter Voltage, VCE -- V
2
fT -- IC
Gain-Bandwidth Product, fT -- GHz
10
7
5
3
2
DC Current Gain, hFE
3
2
VCE=2V
100
7
5
3
2
1V
2V
E=
VC
1V
1.0
7
5
3
10
0.1
2
3
5 7 1.0
2
3
5 7 10
2
3
Collector Current, IC -- mA
5 7 100
IT14228
7
1.0
2
3
5
7
10
2
3
5
7
Collector Current, IC -- mA
IT01306
No. A1092-2/7
2SC5536A
5
3
Cob -- VCB
Reverse Transfer Capacitance, Cre -- pF
f=1MHz
5
3
2
Cre -- VCB
f=1MHz
Output Capacitance, Cob -- pF
2
1.0
7
5
3
2
1.0
7
5
3
2
0.1
7 0.1
2
3
5
7 1.0
2
3
5
7
10
2
3
0.1
7 0.1
2
3
5
7 1.0
2
3
5
7
10
2
3
Collector-to-Base Voltage, VCB -- V
12
IT01307
32
NF -- IC
Collector-to-Base Voltage, VCB -- V
⏐
S21e
⏐
2
-- I
IT01308
C
f=150MHz
Forward Transfer Gain,
⏐
S21e
⏐
2
-- dB
f=150MHz
28
24
20
16
12
8
4
0
10
Noise Figure, NF -- dB
8
6
V
=2
E
C
V
1V
4
2
VC =2
E V
1V
0
7
1.0
2
3
5
7
10
2
3
5
100
IT01310
7
3
5
7 1.0
2
3
5
7 10
2
3
5
Collector Current, IC -- mA
120
PC -- Ta
Collector Current, IC -- mA
7 100
IT01309
Collector Dissipation, PC -- mW
100
80
60
40
20
0
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°C
IT01311
No. A1092-3/7
2SC5536A
S Parameters (Common emitter)
VCE=2V, IC=1mA, ZO=50
Ω
Freq(MHz)
50
100
150
200
250
300
350
400
450
500
⏐
S11
⏐
0.961
0.937
0.917
0.890
0.893
0.880
0.868
0.873
0.858
0.866
∠
S11
-26.3
-52.0
-72.8
-89.5
-100.7
-111.3
-122.4
-127.6
-135.4
-138.9
⏐
S21
⏐
3.67
2.90
2.69
2.47
2.23
1.93
1.83
1.58
1.52
1.31
∠
S21
162.9
148.5
135.6
125.0
116.6
108.8
102.9
96.8
92.7
87.3
⏐
S12
⏐
0.040
0.074
0.099
0.114
0.124
0.130
0.135
0.136
0.137
0.135
∠
S12
74.8
61.5
50.4
41.3
33.8
28.3
23.9
19.9
16.8
14.0
⏐
S22
⏐
0.980
0.938
0.890
0.843
0.803
0.785
0.747
0.747
0.720
0.724
∠
S22
-7.3
-13.4
-18.0
-21.5
-24.4
-26.5
-28.6
-30.5
-32.3
-34.3
VCE=2V, IC=3mA, ZO=50
Ω
Freq(MHz)
50
100
150
200
250
300
350
400
450
500
⏐
S11
⏐
0.888
0.860
0.835
0.810
0.800
0.792
0.791
0.787
0.785
0.783
∠
S11
-37.5
-68.6
-91.8
-108.7
-121.4
-130.6
-137.9
-143.8
-148.4
-152.5
⏐
S21
⏐
9.15
8.01
6.76
5.56
4.93
4.17
3.73
3.28
2.99
2.69
∠
S21
157.9
140.2
127.0
117.8
110.1
104.6
98.9
95.2
91.0
88.1
⏐
S12
⏐
0.038
0.064
0.080
0.088
0.095
0.098
0.098
0.100
0.098
0.100
∠
S12
69.9
54.0
43.3
35.6
30.8
27.4
24.8
23.0
22.2
21.3
⏐
S22
⏐
0.942
0.829
0.723
0.636
0.581
0.533
0.510
0.482
0.472
0.457
∠
S22
-15.0
-26.1
-32.9
-36.7
-39.1
-40.9
-42.2
-43.3
-44.6
-45.7
VCE=2V, IC=10mA, ZO=50
Ω
Freq(MHz)
50
100
150
200
250
300
350
400
450
500
⏐
S11
⏐
0.733
0.722
0.719
0.713
0.716
0.716
0.716
0.717
0.715
0.716
∠
S11
-64.8
-105.2
-126.7
-139.6
-147.8
-153.8
-158.8
-162.1
-165.3
-167.6
⏐
S21
⏐
22.70
16.71
12.55
9.94
8.10
6.88
5.96
5.25
4.70
4.24
∠
S21
145.6
125.0
113.3
106.2
101.0
96.9
93.4
90.7
88.2
85.9
⏐
S12
⏐
0.031
0.046
0.052
0.055
0.059
0.060
0.062
0.065
0.067
0.069
∠
S12
60.7
44.9
38.2
36.3
35.6
36.2
37.4
38.6
40.6
42.1
⏐
S22
⏐
0.825
0.605
0.462
0.371
0.314
0.276
0.248
0.228
0.215
0.204
∠
S22
-33.9
-53.9
-64.8
-71.4
-76.1
-79.7
-82.6
-85.1
-86.7
-88.6
VCE=2V, IC=30mA, ZO=50
Ω
Freq(MHz)
50
100
150
200
250
300
350
400
450
500
⏐
S11
⏐
0.605
0.660
0.677
0.681
0.686
0.687
0.689
0.691
0.691
0.691
∠
S11
-104.0
-137.6
-151.7
-159.5
-164.5
-168.1
-170.8
-173.0
-174.8
-176.5
⏐
S21
⏐
36.87
23.04
16.23
12.43
10.04
8.44
7.27
6.38
5.70
5.14
∠
S21
131.9
112.9
104.1
99.4
95.6
92.8
90.2
88.3
86.4
84.7
⏐
S12
⏐
0.022
0.030
0.034
0.038
0.042
0.045
0.050
0.055
0.059
0.064
∠
S12
54.3
44.3
45.3
47.4
50.8
53.9
56.5
58.3
60.5
61.5
⏐
S22
⏐
0.672
0.450
0.352
0.302
0.276
0.260
0.251
0.244
0.239
0.237
∠
S22
-59.9
-89.4
-106.7
-118.6
-127.0
-133.7
-138.8
-142.9
-145.6
-148.2
No. A1092-4/7
2SC5536A

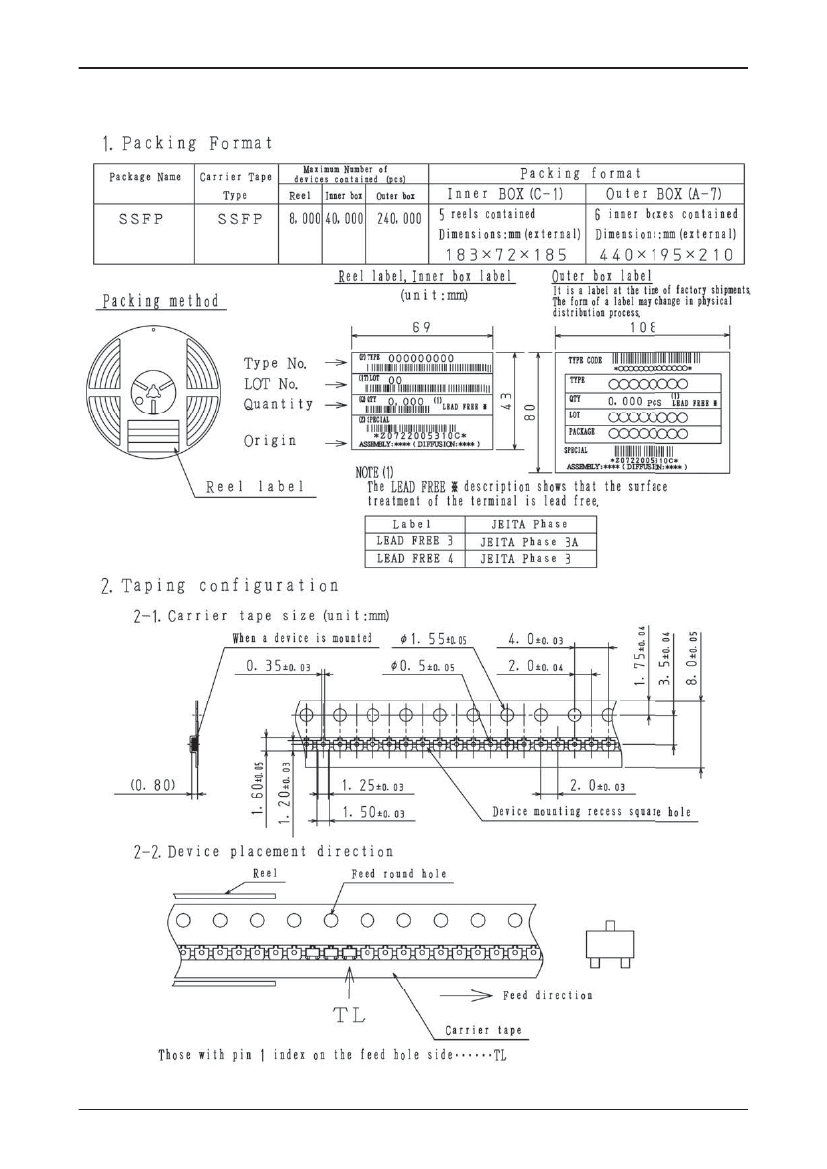

Embossed Taping Specification
2SC5536A-TL-H
No. A1092-5/7
