5229-03CPB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5229-03CPB

5229-03CPB: Description3 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector; File Size128KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5229-03CPB Overview

3 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SOLDER, RECEPTACLE

5229-03CPB Parametric

Parameter Name	Attribute value
Contact materials	NOT SPECIFIED
Terminal spacing	2.54 mm
Total number of contacts	3
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
Options	GENERAL PURPOSE
Shell style	RECEPTACLE
Manufacturer Series	5229
Contact surface matching	NOT SPECIFIED
Contact coated terminals	NOT SPECIFIED
Connection Type	FFC/FPC CONNECTOR
Connector male and female	FEMALE
Installation method	STRAIGHT
Installation type	BOARD
Number of load rows	1
Terminal type	SOLDER
UL flammability code	94V-0

Preview

Download Datasheet

View All

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022023033

Active

2.54mm (.100") Vertical, Non-ZIF, Low Profile Receptacle, 3 Circuits

Agency Certification

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

5229

ffc_fpc_throughhole

N/A

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Physical

Circuits (Loaded)

Contact Position

Entry Angle

Flammability

Mated Height (in)

Mated Height (mm)

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

N/A

Vertical

94V-0

0.256 In

6.50 mm

Vertical

0.142 In

3.60 mm

None

Tray

0.100 In

2.54 mm

-40°C to +105°C

Through Hole

FFC/FPC

Please vi

non-prod

5229Se

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A, 1A

200V

Material Info

Old Part Number

5229-03CPB

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

SPK-5229-001

PS-5229-001, PS-5229-002, PS-5229-005,

PS-5229-006, PS-5229-007

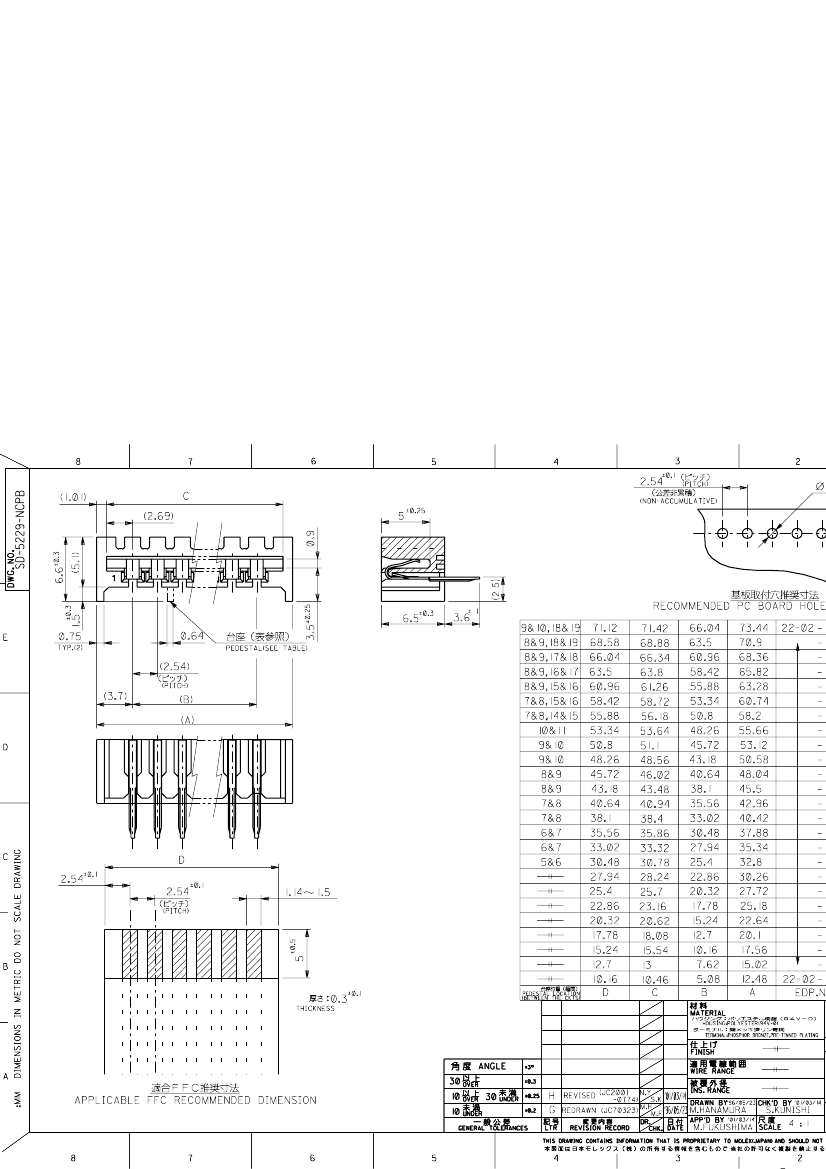

SD-5229-NCPB

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
