5239-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5239-15

5239-15: Description15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size90KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5239-15 Overview

15 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

5239-15 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5239
Plug information	NO
Mixed contacts	NO
Number of rows loaded	1
Options	GENERAL PURPOSE
Total number of contacts	15
UL Flammability Code	94V-2

Preview

Download Datasheet

View All

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0009524154

Active

3.96mm (.156") Pitch KK® Crimp Housing, Female, Friction Ramp, 15 Circuits

Documents:

3D Model

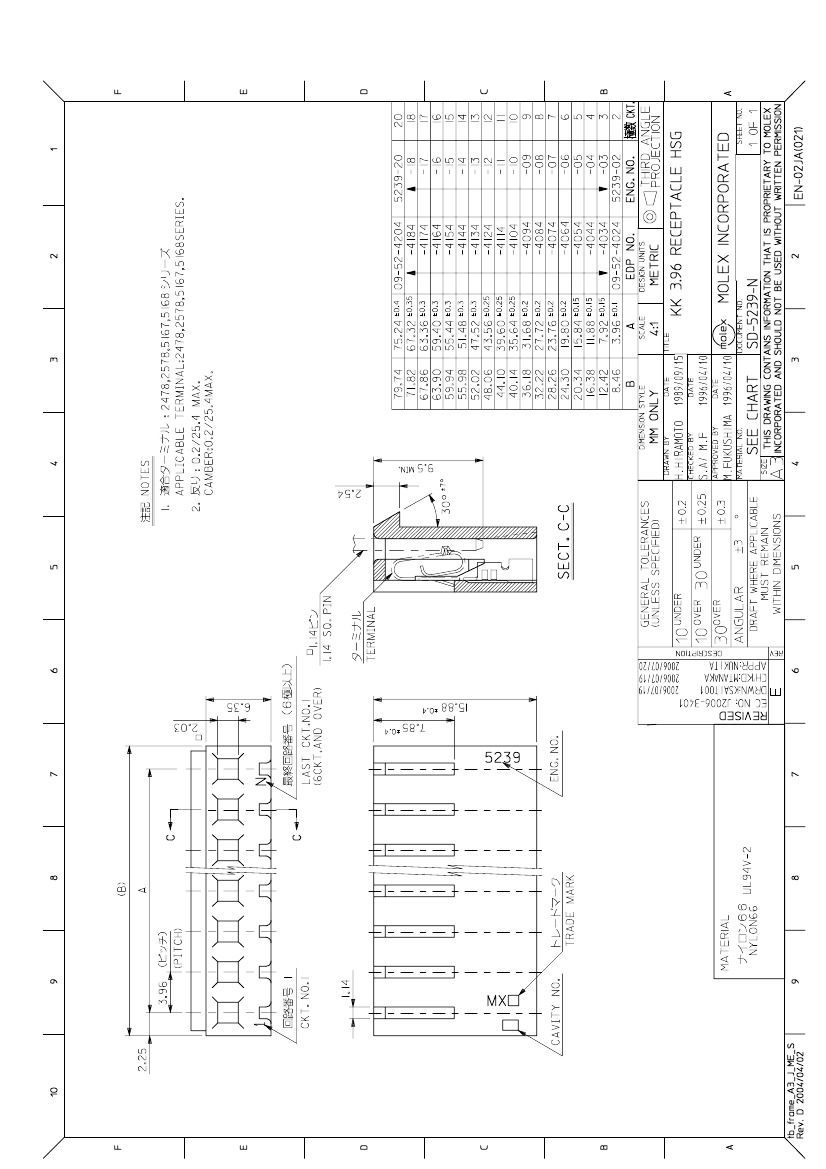

Drawing (PDF)

Product Specification PS-5239-002 (PDF)

Product Specification PS-5239-003 (PDF)

Product Specification PS-5239-006 (PDF)

Product Specification PS-5239-007 (PDF)

Product Specification PS-5239-010 (PDF)

Product Specification PS-5239-011 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

TUV

R72090224

General

Product Family

Series

Overview

Product Name

Crimp Housings

5239

KK®

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Natural

94V-2

Female

Yes

Nylon

Bag

0.156 In

3.96 mm

Yes

-40°C to +105°C

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

5239Se

Material Info

Old Part Number

5239-15

Mates

Right A

Vertica

Reference - Drawing Numbers

Product Specification

PS-5239-002, PS-5239-003, PS-5239-006,

PS-5239-007, PS-5239-010, PS-5239-011,

RPS-5239-001

SD-5239-N

Use W

5168 C

AWG, 5

18-24 A

Crimp T

Sales Drawing

This document was generated on 05/27/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
