HCMOS, 7.5x5mm, 2.85V SMD Oscillator
Model: F4300 SERIES
Page 1 of2
RoHS Compliant / Pb Free
Rev. 2/25/2008
http://www.foxonline.com/need_a_sample.htm
FEATURES
•
•
•
•
2.85V Operation
HCMOS Output
Standby Function
Tape and Reel
(2,000 pcs. STD)
• PART nUMbER SELECTIOn
Learn More - Internet Required
Part Number
487-Frequency-xxxxx
604-Frequency-xxxxx
488-Frequency-xxxxx
605-Frequency-xxxxx
473-Frequency-xxxxx
606-Frequency-xxxxx
489-Frequency-xxxxx
Model
Number
F4300
F4300R
F4305
F4305R
F4306
F4306R
F4308
Frequency
Stability
±100PPM
±100PPM
±50PPM
±50PPM
±25PPM
±25PPM*
±20PPM*
Operating
Temperature (ºC)
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
-40 ~ +85
-10 ~ +70
Frequency
Range (MHz)
1.544 ~ 80.000
1.544 ~ 80.000
1.544 ~ 80.000
1.544 ~ 80.000
1.544 ~ 80.000
1.544 ~ 80.000
1.544 ~ 80.000
Top
View
7 .5 M ax
#4
#1
Dot denotes
pin 1
#3
5 .2 M ax
#2
1 .5 M ax
1 .4 ±0.2
Bottom
View
• ELECTRICAL CHARACTERISTICS
PARAMETERS
Frequency Range (F
o
)
Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
1.544 ~ 32.000 MHz
32.000+ ~ 50.000 MHz
50.000+ ~ 67.000 MHz
67.000+ ~ 80.000 MHz
Output Symmetry (50% V
dd
)
Rise Time (10% ~ 90% V
dd
) (T
r
)
1.544 ~ 50.000 MHz
50.000 ~ 80.000 MHz
Fall Time (90% ~ 10% V
dd
) (T
f
)
1.544 ~ 50.000 MHz
50.000 ~ 80.000 MHz
Output Voltage
(I
ol
= 2mA)
(V
ol
)
(I
oh
= 2mA)
(V
oh
)
Output Current
(V
ol
= 10%
V
dd
) (I
ol
)
(V
oh
= 90% V
dd
) (I
oh
)
Output Load
(HCMOS)
Standby Current
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
1
MAX
(unless otherwise noted)
1.544 ~ 80.000 MHz
-55ºC ~ +125ºC
2.85V ± 5%
15mA
20mA
25mA
30mA
45% ~ 55%
6nS
4nS
6nS
4nS
10% V
dd
90% V
dd
Min
2mA
-2mA
15pF
10µA
10mS
150nS
10mS
#1
#4
#2
#3
5 .0 8 ±0.1
2 .6 ±0.2
Recommended
Solder Pad Layout
1 .8 ±0.1
2 .0 ±0.1
4 .2 ±0.1
5 .0 8 ±0.1
Pin Connections
# 1 E /D
#3 O u tp u t
# 2 G N D #4 V
DD
A ll d im e n sio n s a re in m illim eters
Inclusive of 25ºC tolerance, operating temperature range, input voltage change, load change, aging,
shock, and vibration. *Excludes Shock/Vibration
2
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
Note: A 0.01µF bypass capacitor should be placed between VDD (Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
• EnAbLE / DISAbLE FUnCTIOn
INH (Pin 1)
OUTPUT (Pin 3)
OPEN
2
ACTIVE
'1' Level V
Ih
≥
70% V
dd
ACTIVE
'0' Level V
Il
≤
30% V
dd
High Z
FOXElectronics
5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
http://www.foxonline.com
© 2009 FOX ELECTRONICS | ISO9001:2000 Certified
EMEA
Tel/Fax: +44 .1767.312632 |
Asia
Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282
|
Japan
Tel: +81.3.3374/2079 Fax: +81.3.3374.5221
HCMOS, 7.5x5mm, 2.85V SMD Oscillator
Model: F4300 SERIES
Page 1 of2
RoHS Compliant / Pb Free
Rev. 2/25/2008
http://www.foxonline.com/need_a_sample.htm

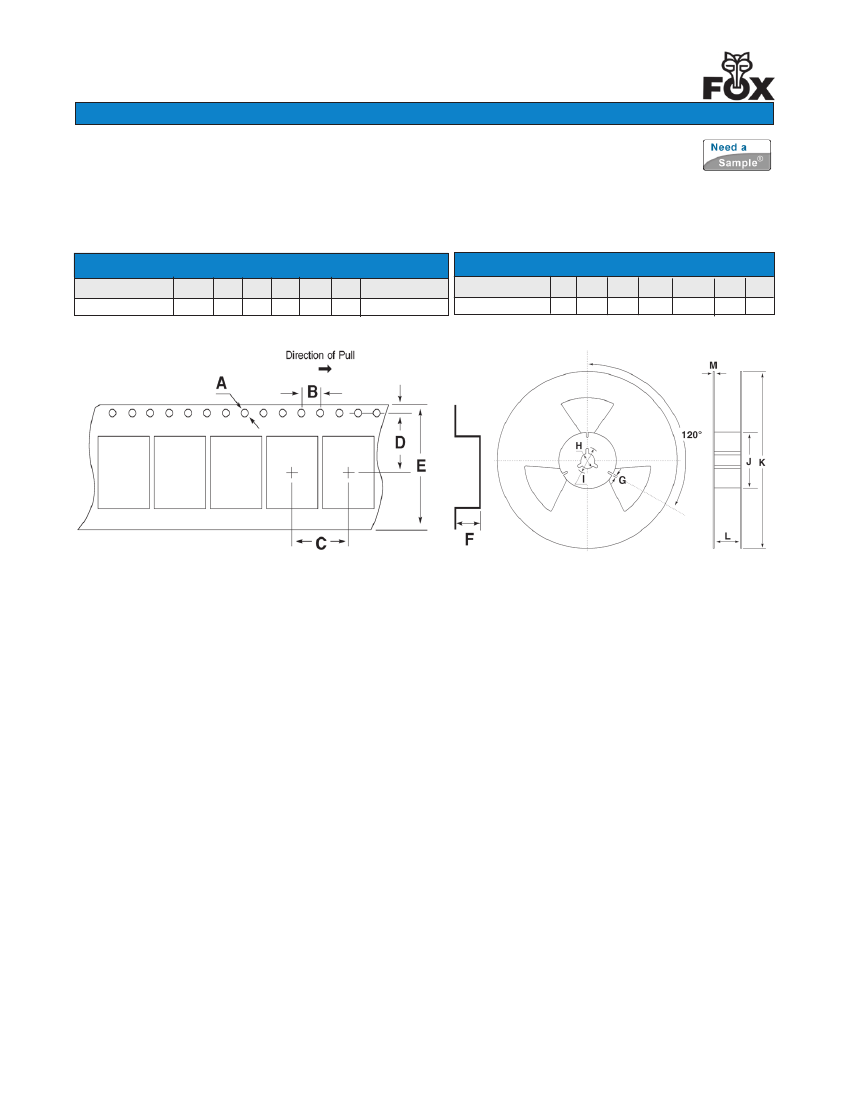

• TAPE SPECIFICATIOnS
(millimeters)
MODEL
F4300 Series
• REEL SPECIFICATIOnS
(millimeters)
G H
I
J
K
L M
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
b
C D E
F
STD Reel QTY
MODEL
A
F4300 Series
2,000
∅1.5
4.0 8.0 7.5 16.0 2.15
