A-70216-0397

Description
16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Categorysemiconductor    Other integrated circuit (IC)
File Size119KB,6 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

A-70216-0397 Overview

16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

This document was generated on 03/29/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Description:
0010894166
Active
2.54mm (.100") Pitch C-Grid® Breakaway Header, High Profile, Dual Row, Right Angle,
16 Circuits, 6.10mm (.240") Mating Pin Length, 0.76µm (30µ") Gold (Au) Selective
Plating
Documents:
3D Model
Packaging Specification (PDF)

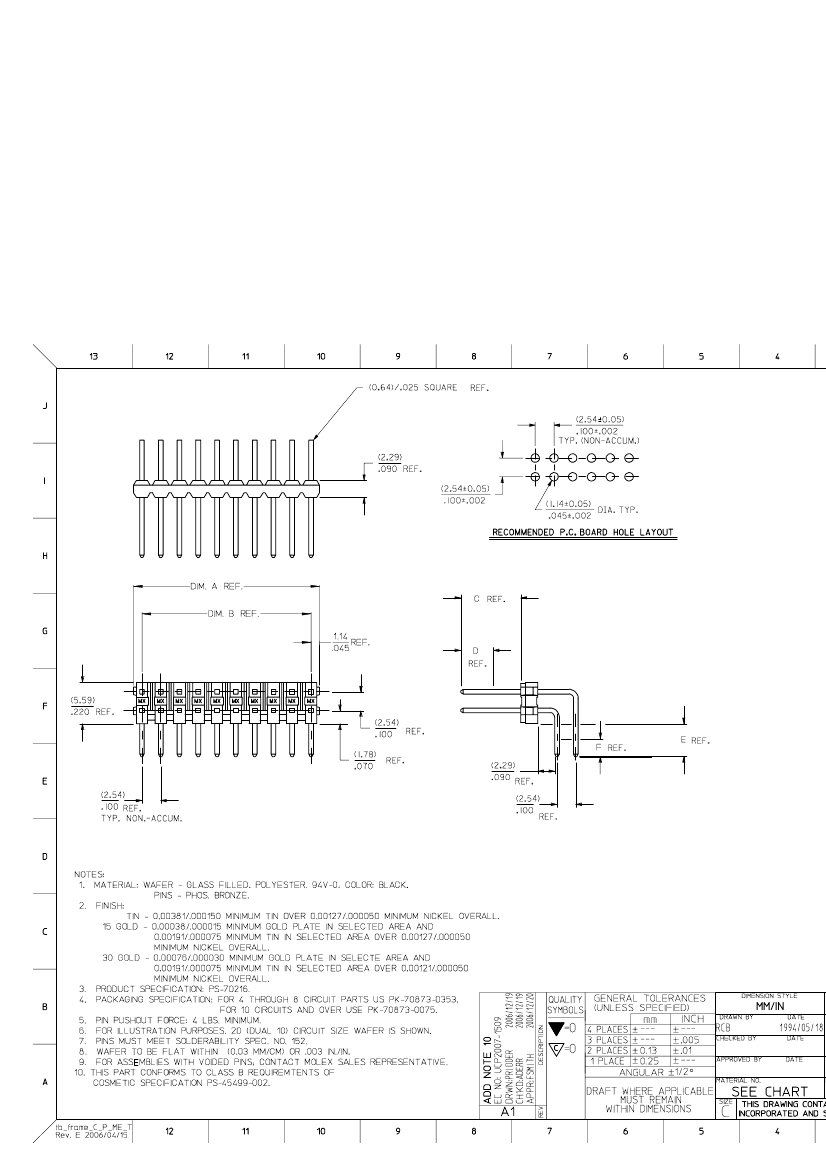

Drawing (PDF)
Product Specification PS-70216 (PDF)
RoHS Certificate of Compliance (PDF)
Agency Certification
CSA
UL
LR19980
E29179
General
Product Family
Series
Application
Product Name
PCB Headers
70216
Board-to-Board, Wire-to-Board
C-Grid®
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
Plating min: Mating (µin)
Plating min: Mating (µm)
Plating min: Termination (µin)
Plating min: Termination (µm)
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Yes
16
16
Black
50
94V-0
No
None
Brass, Phosphor Bronze
Gold
Tin
Polyester
2
Right Angle
0.110 In
2.79 mm
No
None
Tube
0.100 In
2.54 mm
30
0.75
75
1.875
No
No
No
Yes
-40°C to +105°C
Through Hole
EU RoHS
ELV and
Complia
REACH S
Contains
Halogen
Status
Not Revi
Need mo
environm
Email pro
For a mu
Complian
Please vi
non-prod
Search
70216S
Electrical
Current - Maximum per Contact
3A
