BCL-412-XWP-PL: DescriptionCompression Style Ring Tongue Terminal for 4 AWG Wire; File Size165KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

BCL-412-XWP-PL Overview

Compression Style Ring Tongue Terminal for 4 AWG Wire

Preview

Download Datasheet

View All

This document was generated on 04/12/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

Documents:

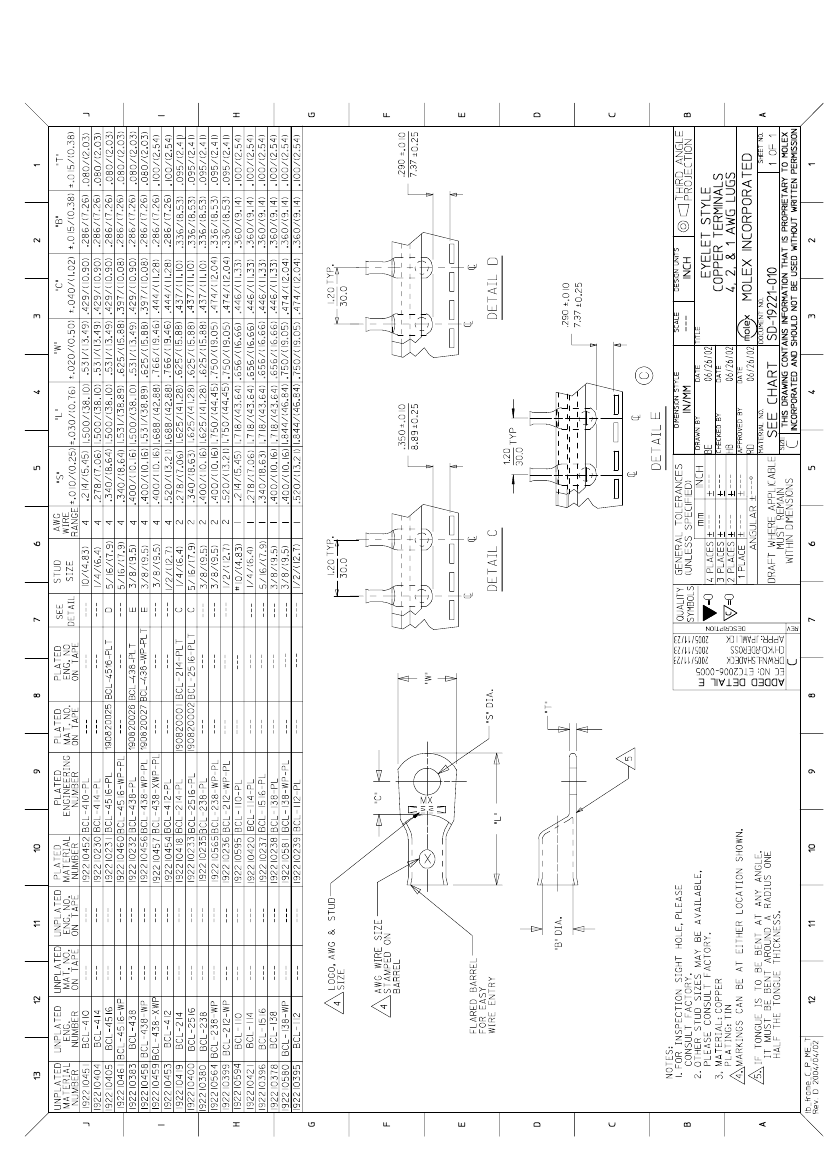

Drawing (PDF)

0192210454

Active

Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 1/2", Plated

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

UL

LR18689

E32244

General

Product Family

Series

Comments

Crimp Quality Equipment

Mil-Spec

Product Name

Type

Ring and Spade Terminals

19221

Heavy Duty

Yes

N/A

Battery Cable Lug

Ring

Physical

Barrel Type

Insulation

Material - Plating Mating

Packaging Type

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Stud Size

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Closed

None

Tin

Bag

160

4

160

4

1/2" (M12)

Crimp or Compression

N/A

4

96.3 - 117.0

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

Search

19221S

Material Info

Old Part Number

BCL-412-XWP-PL

Reference - Drawing Numbers

Sales Drawing

SD-19221-010

Applic

Tooling

found b

Crimp H

contain

Specifi

Global

Descri

Putt Pu

Head S

Manua

Crimpin

insulate

4/0 Ter

Manua

Hydrau

Die set

Die Se

the HH

Crimpe
