Features
Regulated
Converters
Description
●
●
●
●
●
●
On/Off Pin
1kVDC Isolation
UL94V-0 Package Material
Optional Continuous Short Circuit Protected
Internal linear regulator
Efficiency to 70 %
ECONOLINE
DC/DC-Converter
with 3 year Warranty
The RY series DC/DC converter is a low cost general purpose isolated converter with a
built-in linear regulator to give a regulated, load-independent output. It is available with
single or dual outputs. A useful feature is the CTRL pin on the single output version which
allows to controll the converter with an external enable signal.
Selection Guide
Part
Number
SIP 7
RY-xx05S
RY-xx09S
RY-xx12S
RY-xx15S
RY-xx24S
RY-xx05D
RY-xx09D
RY-xx12D
RY-xx15D
RY-xx24D
Input
Voltage
(VDC)
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
5, 9, 12, 15, 24
Output
Voltage
(VDC)
5
9
12
15
24
±5
±9
±12
±15
±24
Output
Current
(mA)
200
111
84
66
42
±100
±55
±42
±33
±21
Efficiency
(%)
58-60
56-62
60-66
60-66
60-68
50-58
52-60
58-68
62-68
64-70
Max
Capacitive
Load
(1)
1200µF
1200µF
680µF
680µF
220µF
±470µF
±470µF
±330µF
±330µF
±100µF
1 Watt
SIP7
Single
&
Dual
Output
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “P” for Continuous Short Circuit Protection, e.g. RY-0505S/P, RY-0505D/P
2011/65/EU
6/6
RoHS
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
±5%
Output Voltage Accuracy
±5%
Line Voltage Regulation
±1% max.
Load Voltage Regulation (10% to 100% full load)
±1% max.
Minimum Load
10%
(2)
Output Ripple and Noise (20MHz limited)
100mVp-p max.
Operating Frequency
30kHz min. / 50kHz typ. / 88kHz max.
Efficiency at Full Load
54% min. / 60% typ.
Isolation Voltage
(tested for 1 second)
1000VDC
(rated for 1 minute**)
500VAC / 60Hz
Isolation Capacitance
Single output types
30pF min. / 150pF max.
Dual output types
40pF min. / 72pF max.
Isolation Resistance
10 GW min.
Short Circuit Protection
1 Second
P-Suffix
Continuous
Operating Temperature Range (free air convection)
-40°C to +70°C (see Graph)
Storage Temperature Range
-55°C to +125°C
Relative Humidity
95% RH
Package Weight
RY Single & Dual output types
2.8g
Packing Quantity
25 pcs per Tube
MTBF (+25°C)
Detailed Information see
using MIL-HDBK 217F
924 x 10
3
hours
(+70°C)
Application Notes chapter "MTBF"
using MIL-HDBK 217F
135 x 10
3
hours
EN-60950-1 Certified
RY
Derating-Graph
(Ambient Temperature)
100
80
Output Power (%)
60
40
30
20
0
Safe Operating Area
-40
0
50
85 100
70
150
}
Operating Temperature °C
Certifications
EN General Safety
Report: SPCLVD1109103
EN60950-1:2006 + A12:2011
continued on next page
**Any data referred to in this datasheet are of indicative nature
and based on our practical experience only. For further details,
please refer to our Application Notes.
www.recom-power.com
REV: 3/2018
E-121
ECONOLINE
DC/DC-Converter
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Notes
Note 1:
Note 2:
RY
Series
Maximum capacitive load is defined as the capacitive load that will allow start up in under 1 second without damage to the converter
The RY series requires a minimum of 10% load on the output to maintain specified regulation. Operating under no-load conditions
will not damage these devices; however, they may not meet all listed specifications.

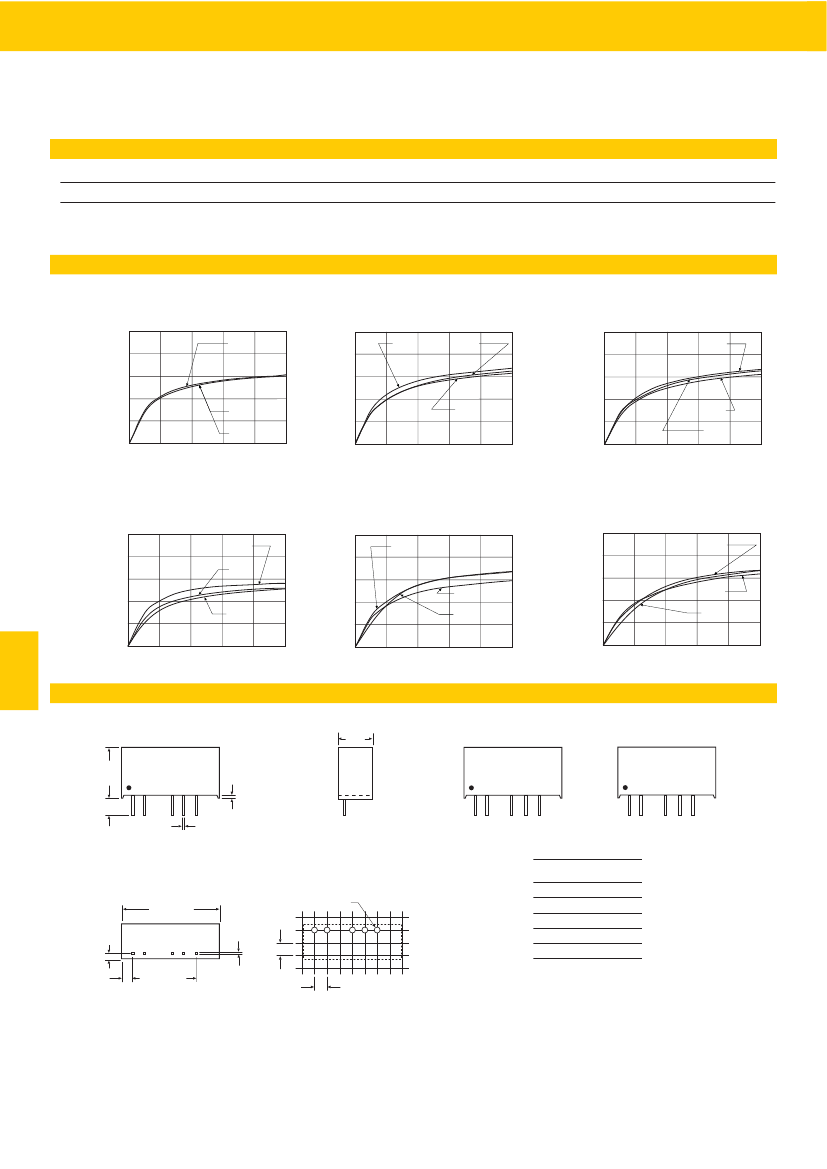

Typical Characteristics
RY-xx05S
Efficiency / Load
100
80
60
40
RY-xx12S
Efficiency / Load
100
80
60
40
100
RY-xx15S
Efficiency / Load
80
60
1205
2412
1212
2415
Efficiency %
Efficiency %
Efficiency %
20
0
0505
2405
0%
20%
40%
60%
80%
100
0512
40
20
0
20
0
0515
1215
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Total Output current (%)
RY-xx05D
Efficiency / Load
100
80
60
40
RY-xx12D
Efficiency / Load
100
80
60
100
RY-xx15D
Efficiency / Load
1215
80
60
40
1205
0505
1212
Efficiency %
Efficiency %
20
0
2405
20
0
2412
Efficiency %
40
0512
0515
2415
20
0
RY
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Total Output current (%)
Total Output current (%)
Package Style and Pinning (mm)
SIP7 Package
7.05
10.20
RECOM
RY-xxxxS
****
Single Output
RECOM
RY-0505S
****
Dual Output
RECOM
RY-0505D
****
0.51 typ.
4.10
0.51 typ.
1 2
4 5 6
Pin Connections
1 2
4 5 6
Recommended Footprint Details
19.65
1.27
2.0
Bottom View
Pin #
1
2
4
5
6
Single
+Vin
–Vin
–Vout
CTRL
+Vout
Dual
+Vin
–Vin
–Vout
Com
+Vout
0.25
1.00 ø+0.15/0
2.54
5 x 2.54
2.54
Top View
XX.X ± 0.5 mm
XX.XX ± 0.25 mm
