Datasheet> All Categories > logic> logic> HCS273DMSH

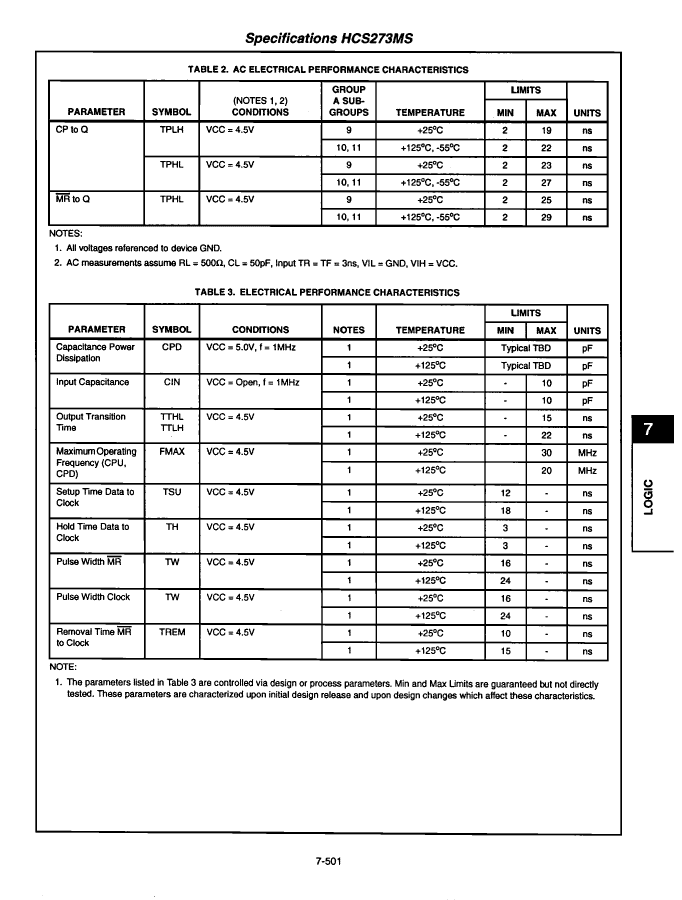

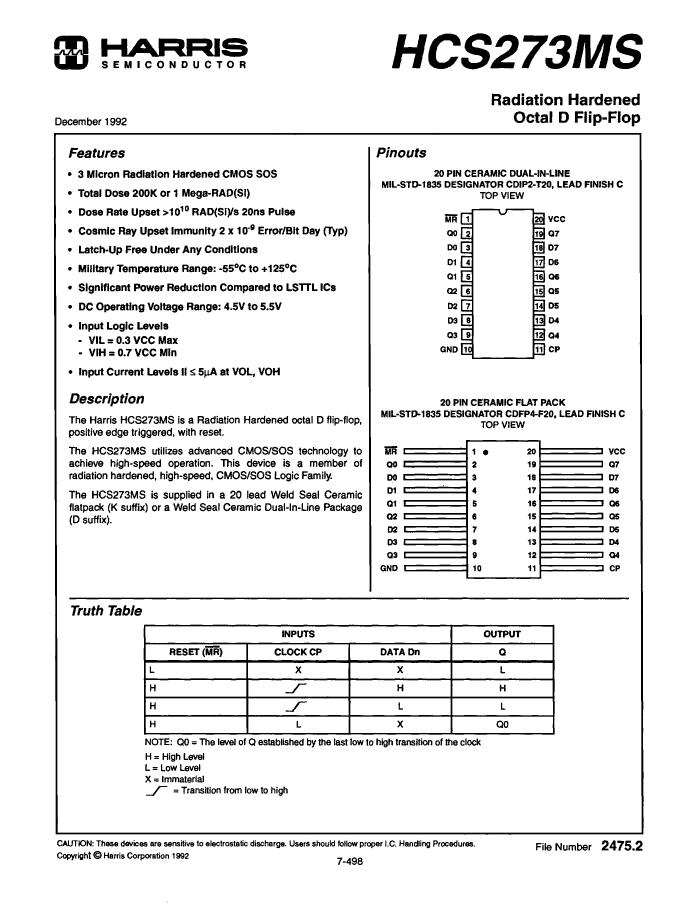

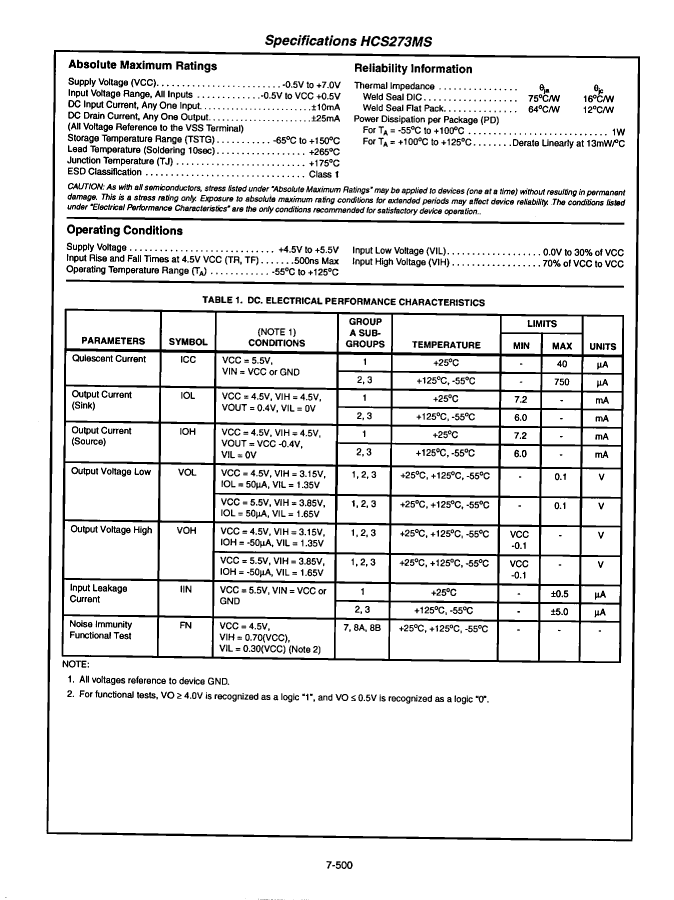

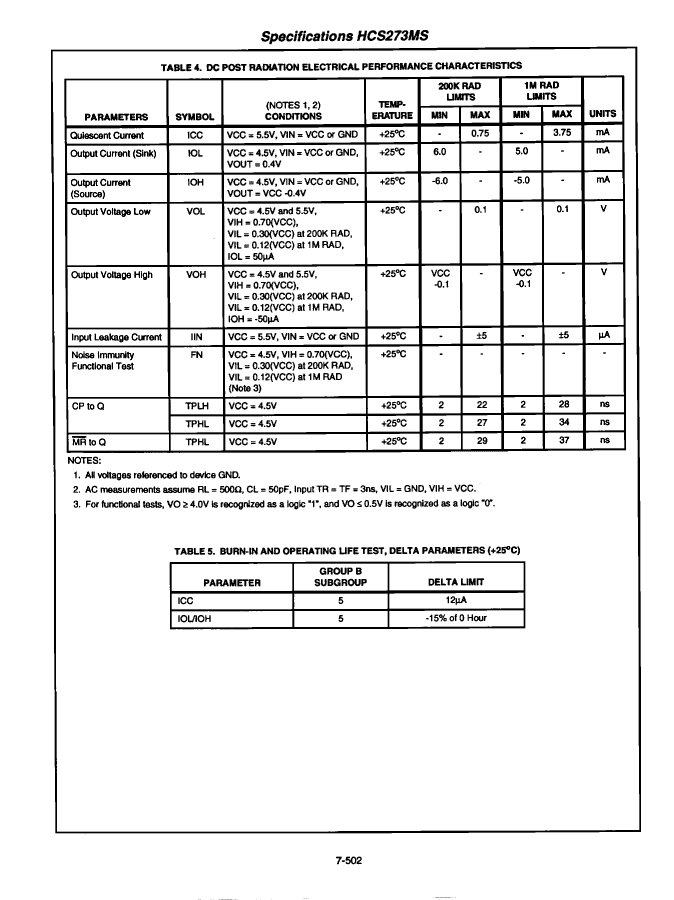

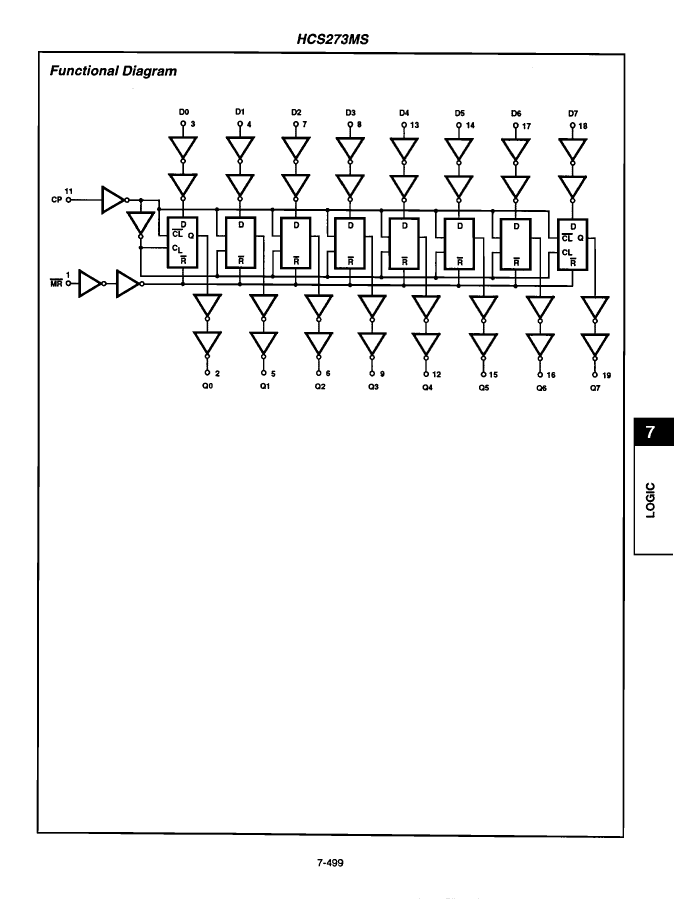

Preview

HCS273DMSH: DescriptionD Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDIP20; Categorylogic logic; File Size226KB，8 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCS273DMSH Overview

D Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDIP20

HCS273DMSH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
series	HC/UH
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
MaximumI(ol)	0.005 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	34 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	1M Rad(Si) V
Trigger type	POSITIVE EDGE

Preview

Download Datasheet

View All

HCS273DMSH Related Products

	HCS273DMSH	HCS273KMSH
Description	D Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDIP20	D Flip-Flop, HC/UH Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, CMOS, CDFP20
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DIP, DIP20,.3	DFP, FL20,.3
Reach Compliance Code	unknown	unknown
Other features	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY	RADIATION HARD CMOS/SILICON ON SAPPHIRE (SOS) TECHNOLOGY
series	HC/UH	HC/UH
JESD-30 code	R-CDIP-T20	R-CDFP-F20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.005 A	0.005 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
propagation delay (tpd)	34 ns	34 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
total dose	1M Rad(Si) V	1M Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
