LM137HVK/883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LM137HVK/883B

LM137HVK/883B: DescriptionIC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,TO-204/-3,3PIN,METAL; CategoryPower/power management The power supply circuit; File Size635KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LM137HVK/883B Overview

IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,TO-204/-3,3PIN,METAL

LM137HVK/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	, TO-204/-3
Reach Compliance Code	unknown
Adjustability	ADJUSTABLE
Nominal dropback voltage 1	3 V
JESD-609 code	e0
Maximum grid regulation rate (%/V)	0.05
Maximum load regulation (%)	1%
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-55 °C
Maximum output current 1	1.5 A
Maximum output voltage 1	-47 V
Minimum output voltage 1	-1.2 V
Package body material	METAL
Encapsulate equivalent code	TO-204/-3
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)

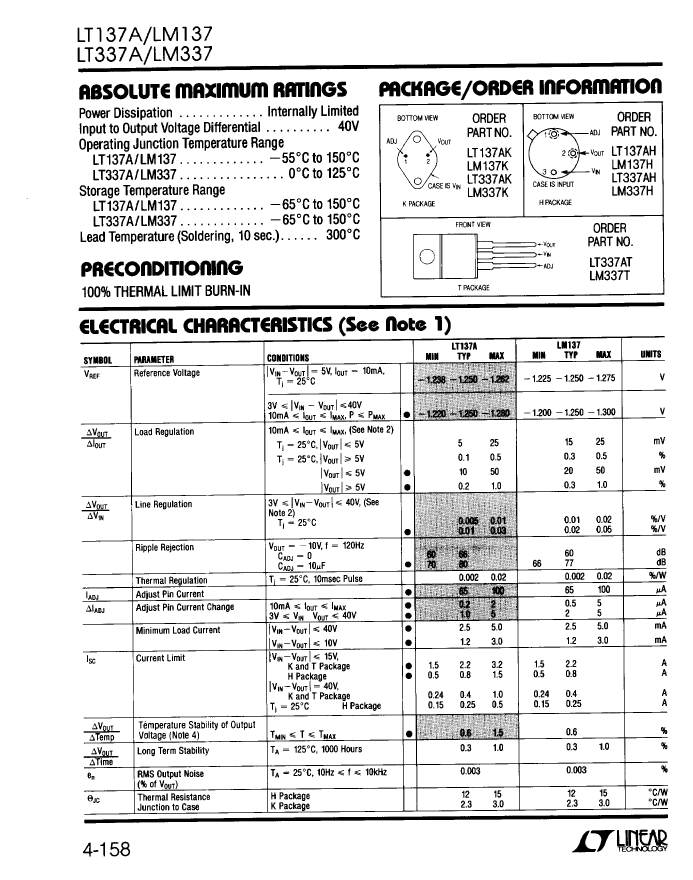

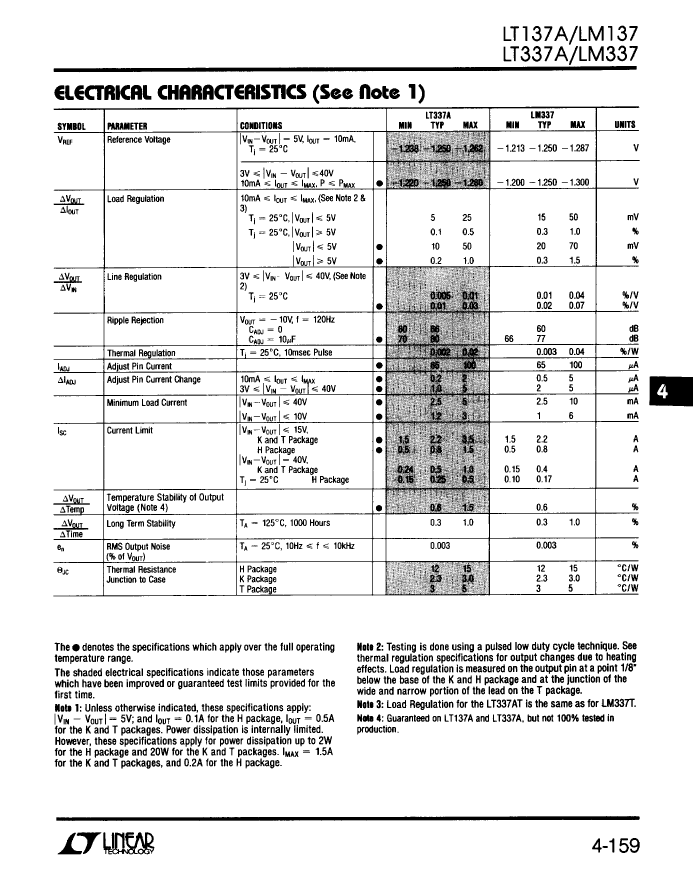

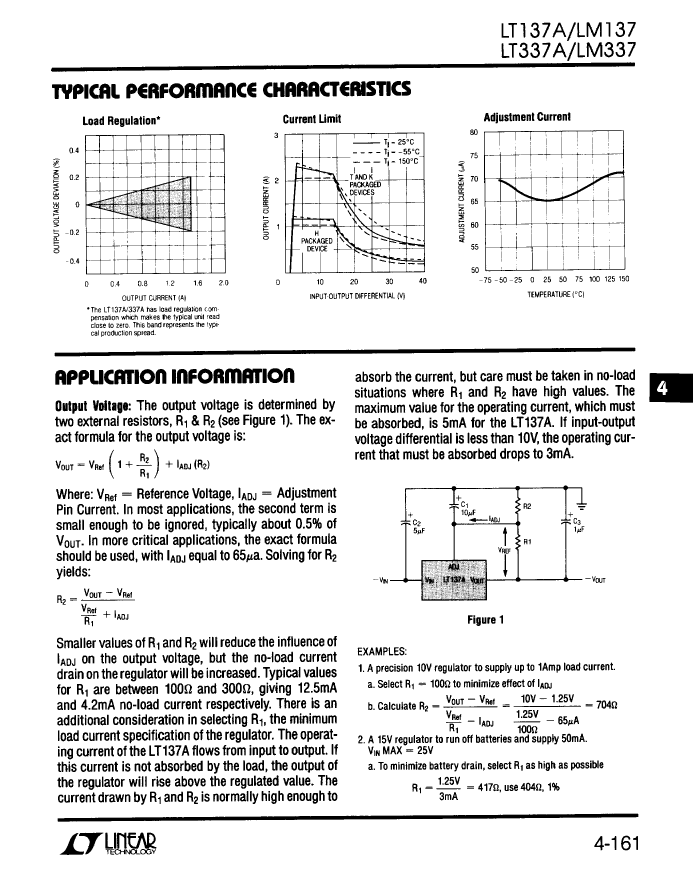

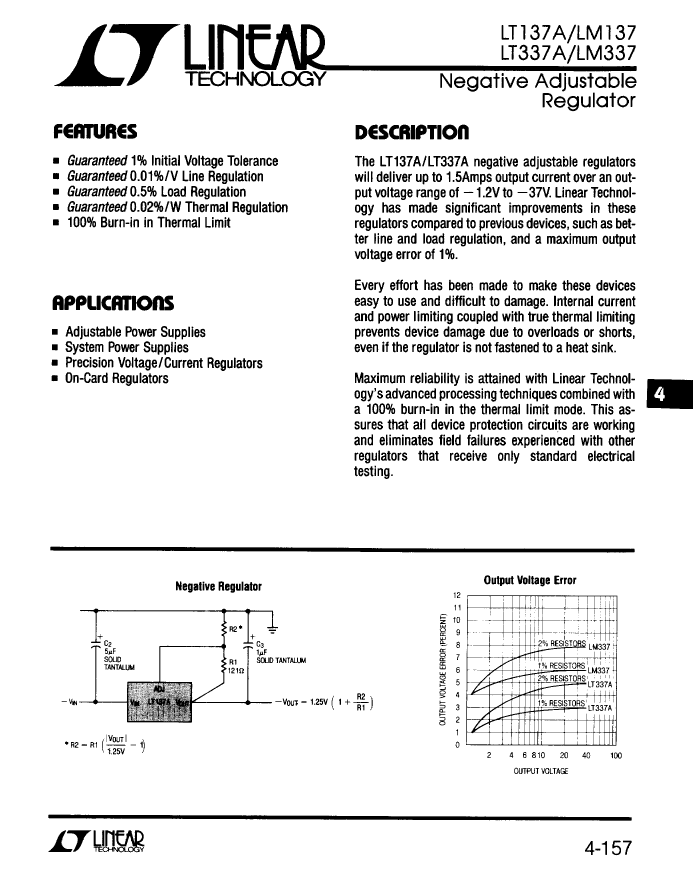

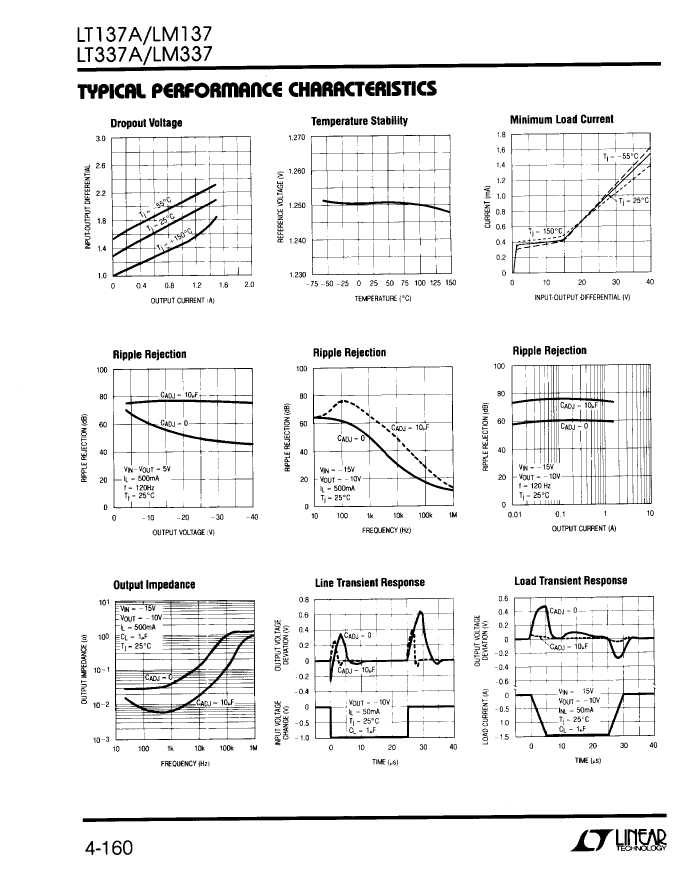

Preview

Download Datasheet

View All

LM137HVK/883B Related Products

	LM137HVK/883B	LM137HVH/883B	LM137K/883B	LT137AH/883B	LT137AHVH/883B	LT137AHVK/883B	LT137AK/883B
Description	IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,TO-204/-3,3PIN,METAL	IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,CAN,3PIN,METAL	IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,TO-204/-3,3PIN,METAL	LT137AH/883B	IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,CAN,3PIN,METAL	IC,VOLT REGULATOR,ADJUSTABLE,-1.2 TO -47V,BIPOLAR,TO-204/-3,3PIN,METAL	LT137AK/883B
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Adjustability	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE	ADJUSTABLE
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum grid regulation rate (%/V)	0.05	0.05	0.05	0.03	0.03	0.03	0.03
Maximum load regulation (%)	1%	1%	1%	1%	1%	1%	1%
Output times	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Working temperature TJ-Min	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current 1	1.5 A	0.5 A	1.5 A	0.5 A	1.5 A	1.5 A	1.5 A
Maximum output voltage 1	-47 V	-47 V	-37 V	-47 V	37 V	-47 V	-47 V
Minimum output voltage 1	-1.2 V	-1.2 V	-1.2 V	-1.2 V	1.2 V	-1.2 V	-1.2 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Encapsulate equivalent code	TO-204/-3	CAN3/4,.2	TO-204/-3	CAN3/4,.2	CAN3/4,.2	TO-204/-3	TO-204/-3
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
package instruction	, TO-204/-3	-	-	, CAN3/4,.2	BCY, CAN3/4,.2	, TO-204/-3	, TO-204/-3
Nominal dropback voltage 1	3 V	3 V	3 V	3 V	-	3 V	3 V
