2SC2500
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
2SC2500
Strobe Flash Applications
Medium-Power Amplifier Applications
Unit: mm
•
High DC current gain and excellent h
FE
linearity
: h
FE (1)
= 140 to 600 (V
CE
= 1 V, I
C
= 0.5 A)
: h
FE (2)
= 70 (min), 200 (typ.), (V
CE
= 1 V, I
C
= 2 A)
•
Low saturation voltage
: V
CE (sat)
= 0.5 V (max) (I
C
= 2 A, I
B
= 50 mA)

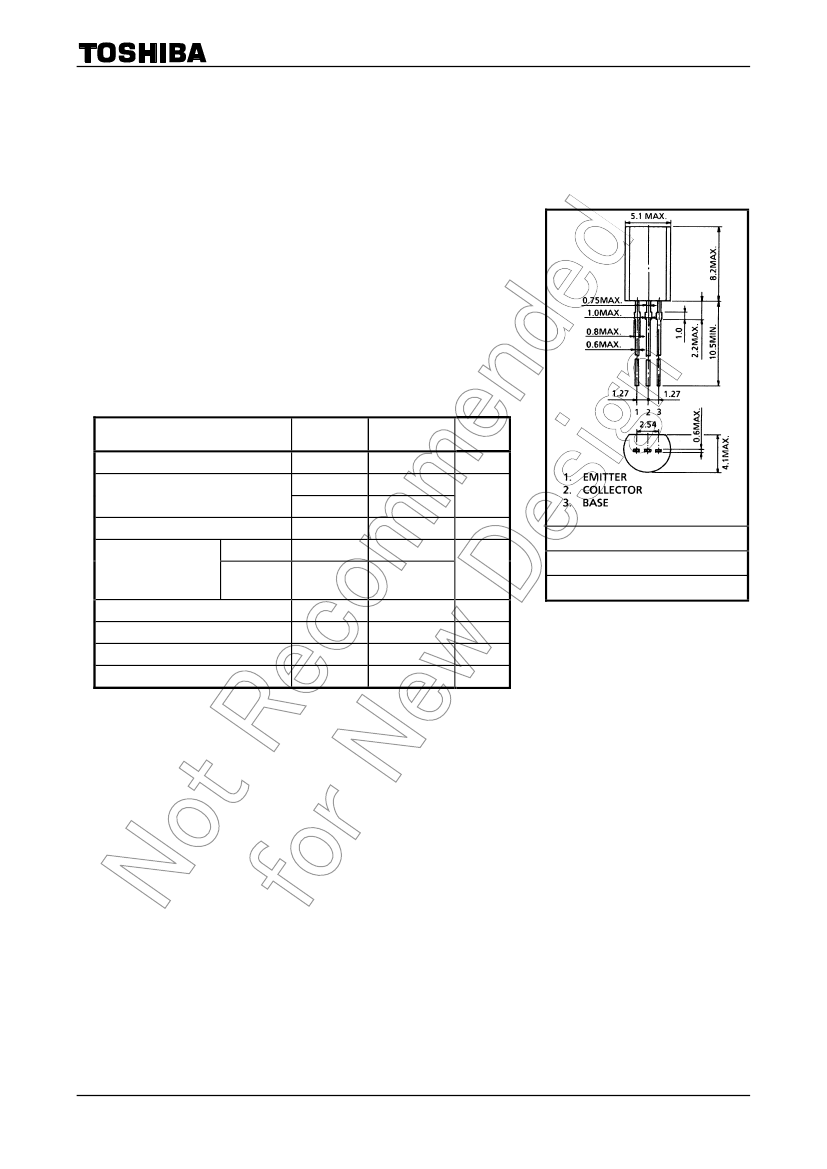

Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
DC
Collector current
Pulsed
(Note 1)
Base current
Collector power dissipation
Junction temperature
Storage temperature range
Symbol
V
CBO
V
CES
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
j
T
stg
Rating
30
30
10
6
2
5
0.5
900
150
−55
to 150
A
Unit
V
V
V
JEDEC
JEITA
TOSHIBA
TO-92MOD
―
2-5J1A
A
mW
°C
°C
Weight: 0.36 g (typ.)
Note 1: Pulse test: Pulse width = 10 ms (max), duty cycle = 30% (max)
Note 2: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2009-12-21
2SC2500
