MC68HC04P4P datasheet, PDF - EEWORLD Datasheet

MC68HC04P4P: DescriptionMicrocontroller, 8-Bit, MROM, CMOS, PDIP28, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size32KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

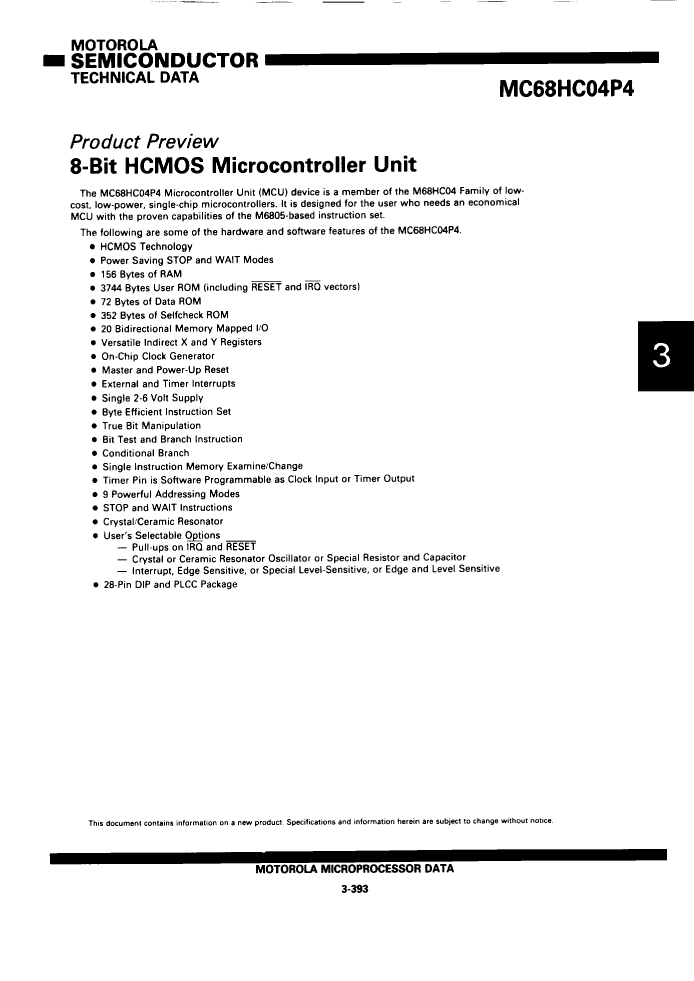

MC68HC04P4P Overview

Microcontroller, 8-Bit, MROM, CMOS, PDIP28, PLASTIC, DIP-28

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	DIP,
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T28
length	36.83 mm
Number of I/O lines	20
Number of terminals	28
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.08 mm
Maximum supply voltage	6 V
Minimum supply voltage	2 V
surface mount	NO
technology	CMOS
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
