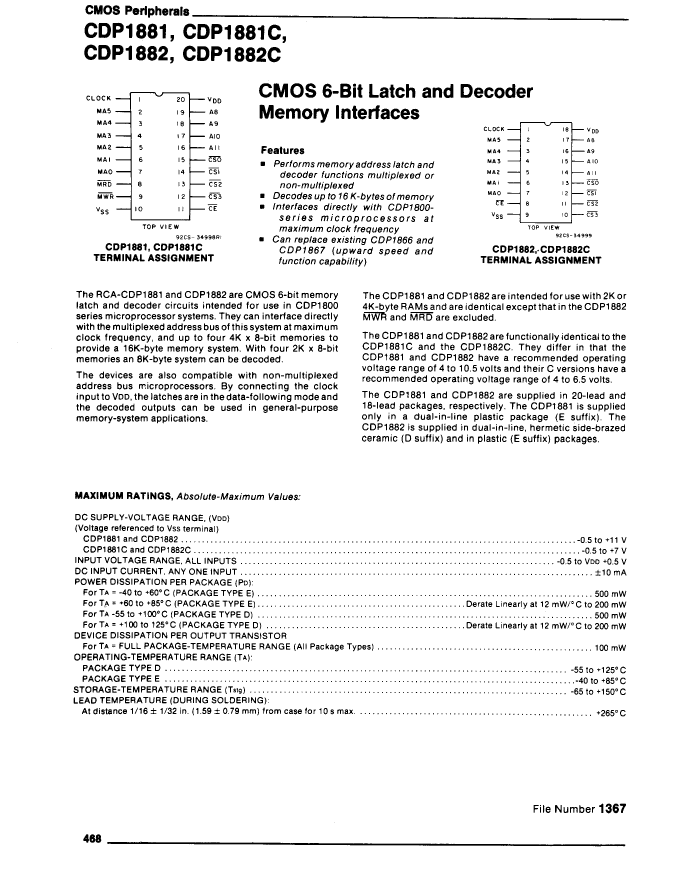

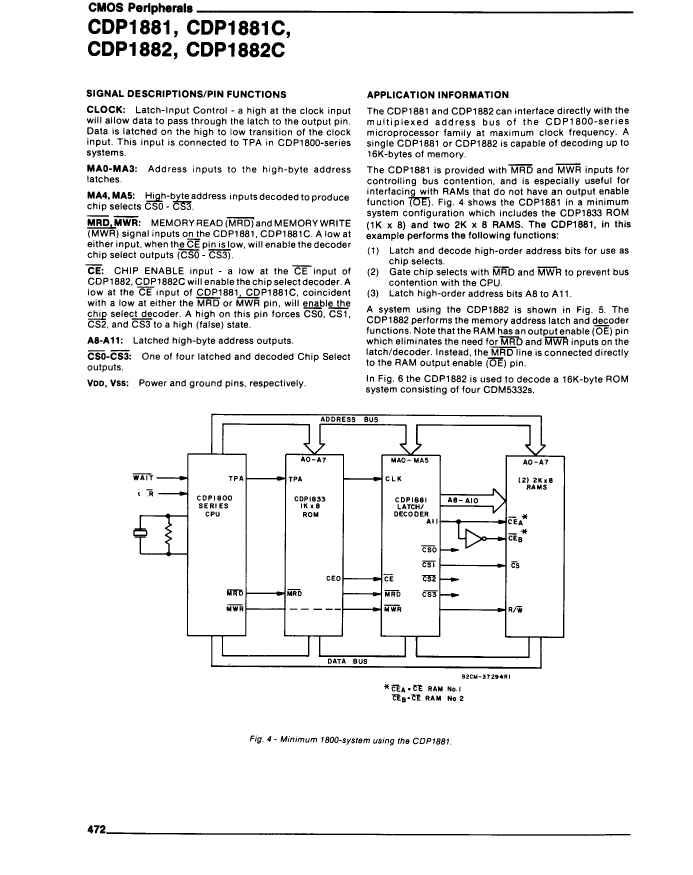

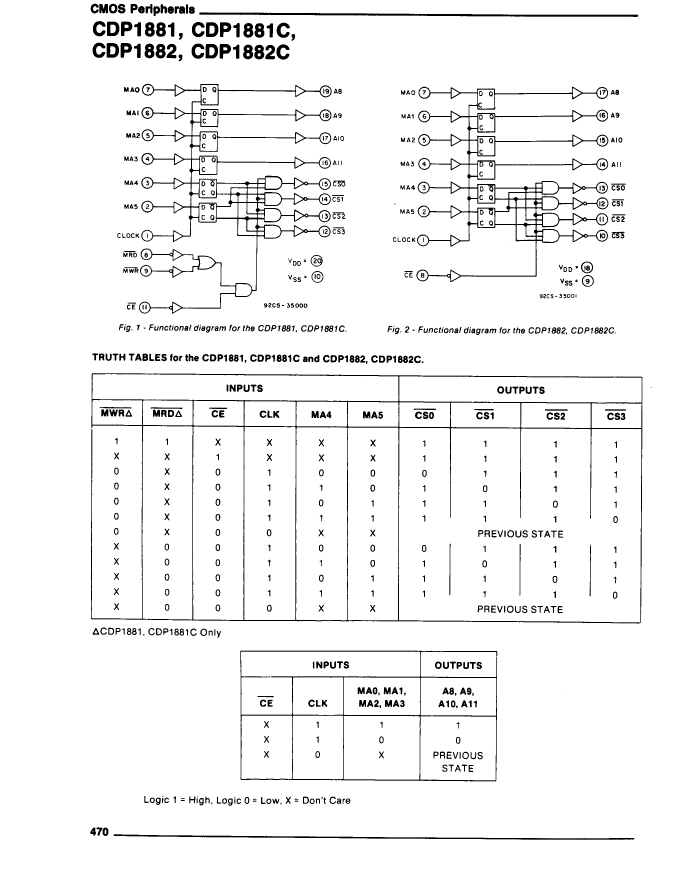

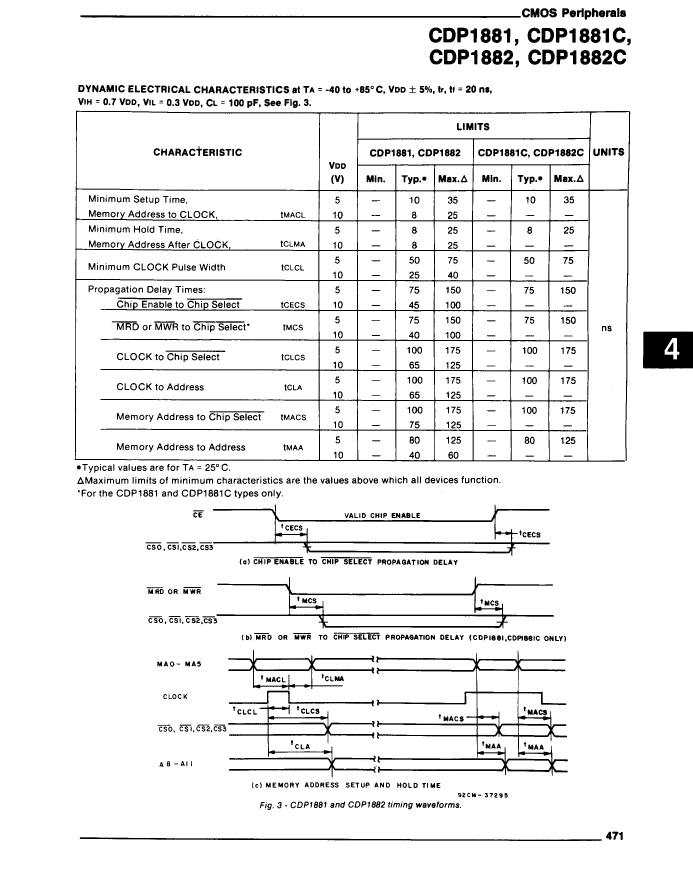

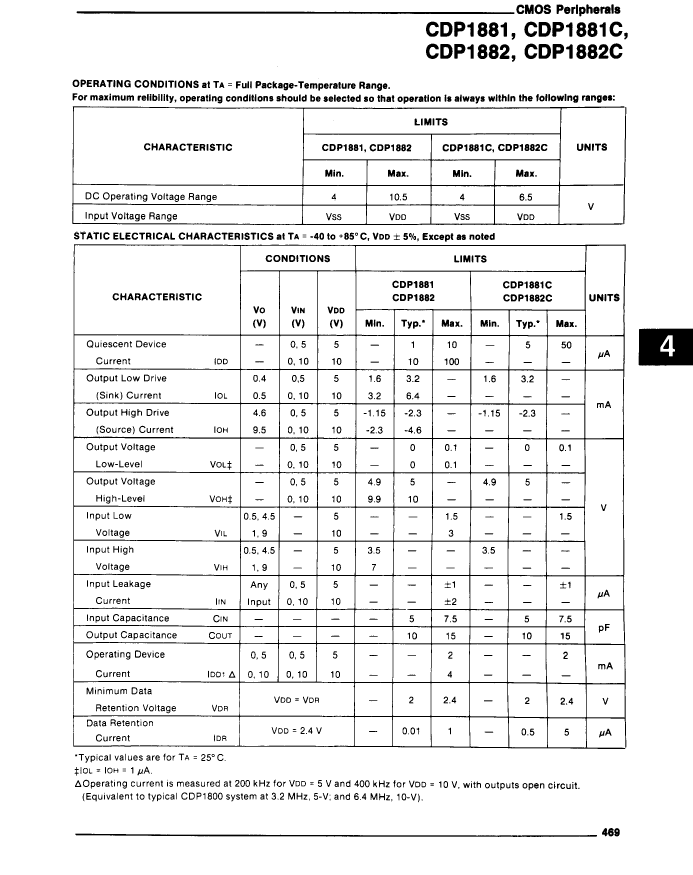

Preview

CDP1882CD/3: DescriptionLogic Circuit, CMOS, CDIP18; Categorylogic logic; File Size339KB，6 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CDP1882CD/3 Overview

Logic Circuit, CMOS, CDIP18

CDP1882CD/3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T18
JESD-609 code	e0
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

CDP1882CD/3 Related Products

	CDP1882CD/3	CDP1881CD/3W	CDP1881CEX	CDP1882D	CDP1882D/3W	CDP1882CD	CDP1882CDX	CDP1882CD/3W	CDP1882CD/4	CDP1881E
Description	Logic Circuit, CMOS, CDIP18	Logic Circuit, CMOS, CDIP20	Logic Circuit, CMOS, PDIP20,	Logic Circuit, CMOS, CDIP18	Logic Circuit, CMOS, PDIP18	Logic Circuit, CMOS, CDIP18,	Logic Circuit, CMOS, CDIP18,	Logic Circuit, CMOS, CDIP18	Logic Circuit, CMOS, CDIP18	Logic Circuit, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP18,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP18,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDIP-T18	R-XDIP-T20	R-PDIP-T20	R-XDIP-T18	R-PDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-XDIP-T18	R-PDIP-T20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	18	20	20	18	18	18	18	18	18	20
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.3	DIP20,.3	DIP20,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP18,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5/10 V	5/10 V	5 V	5 V	5 V	5 V	5/10 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	RCA	-	RCA	RCA	RCA	RCA	RCA	RCA	RCA	RCA
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	-	5 V	5 V	5 V	5 V	-
