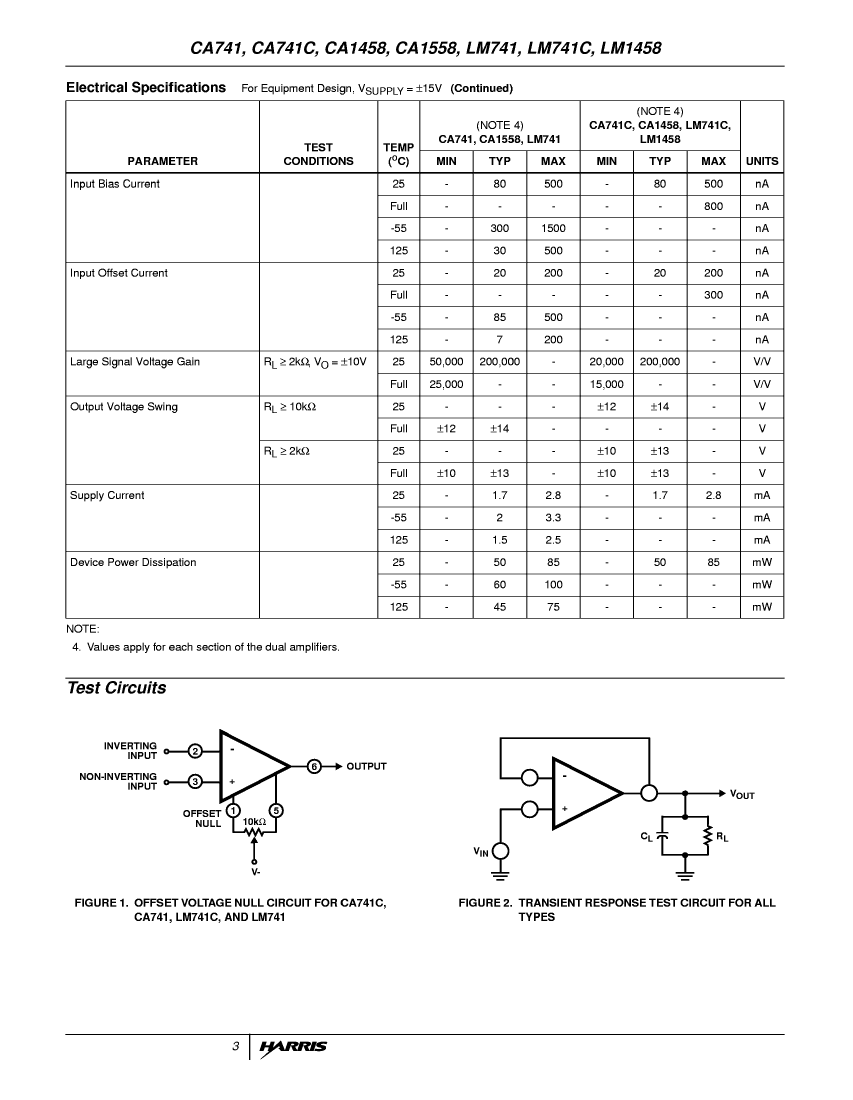

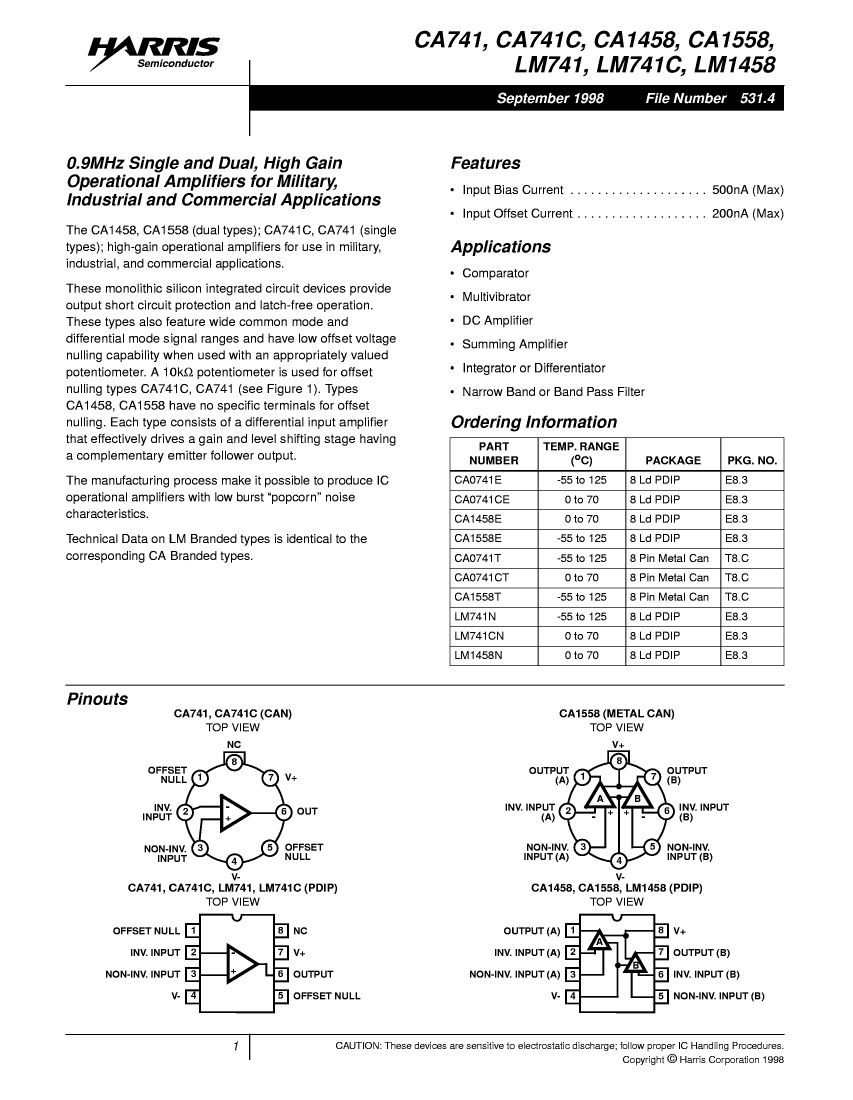

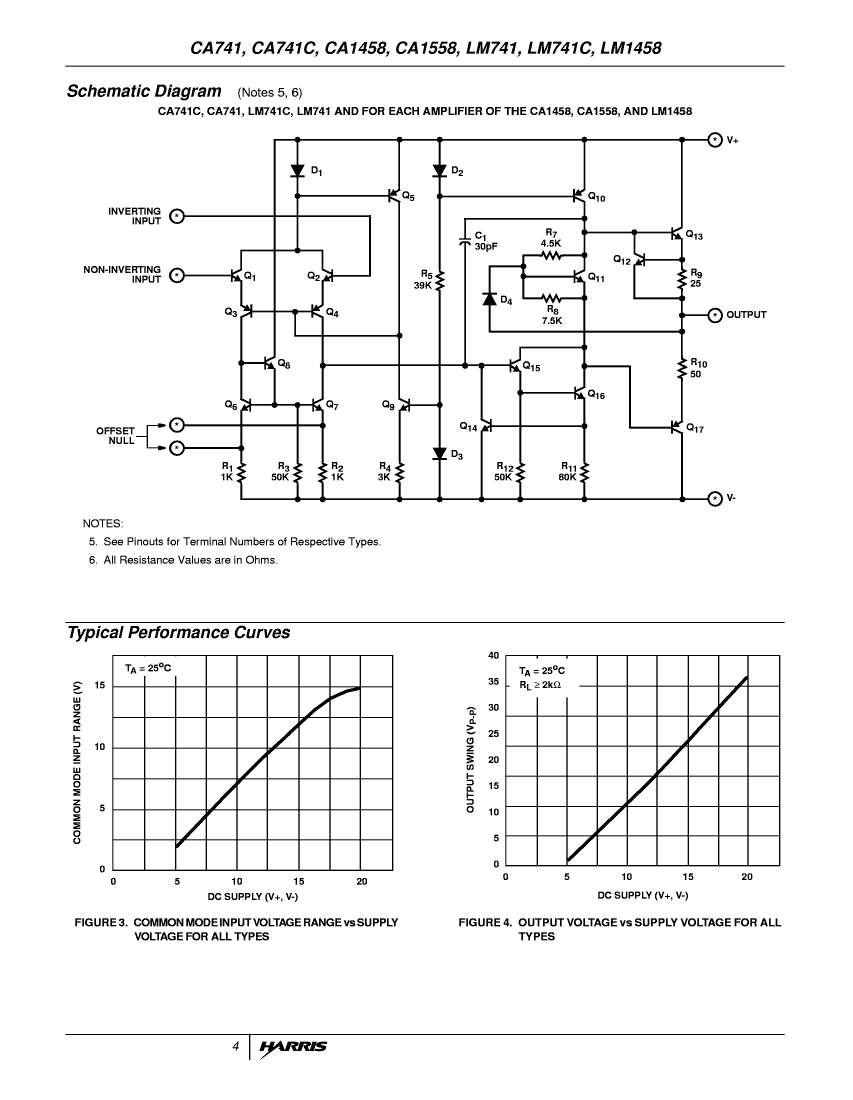

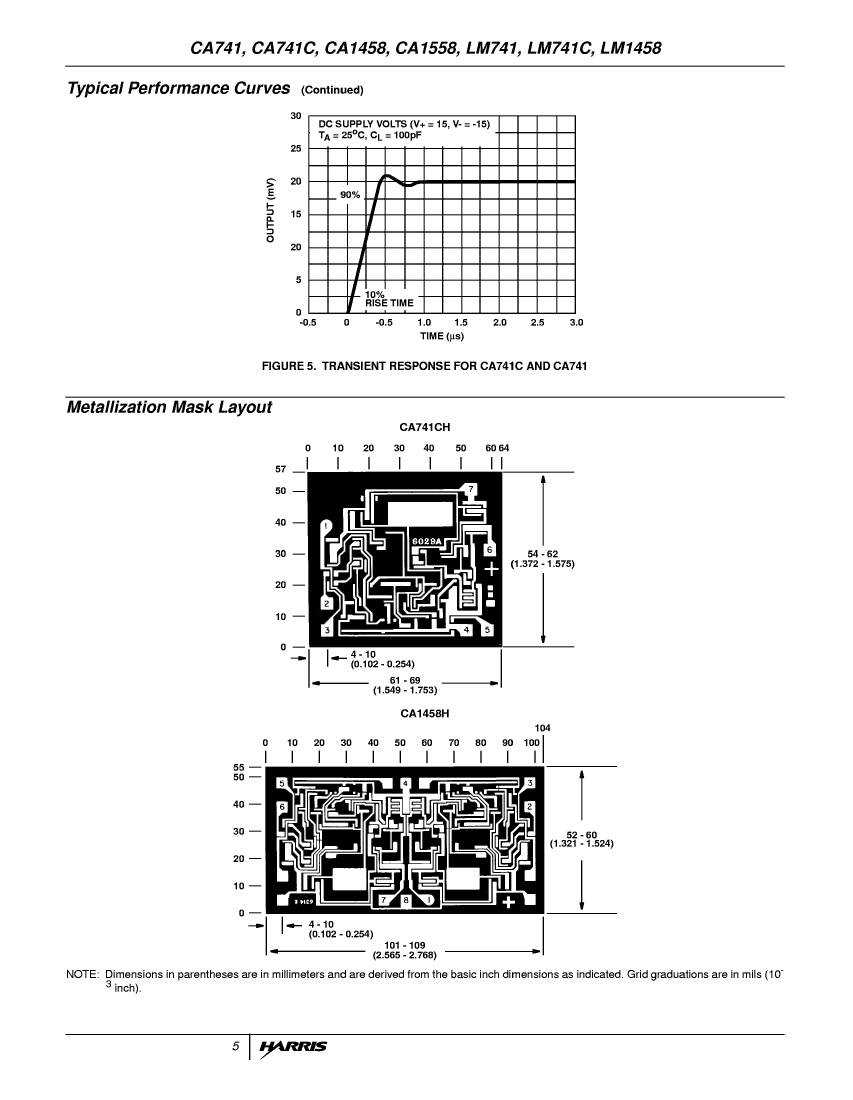

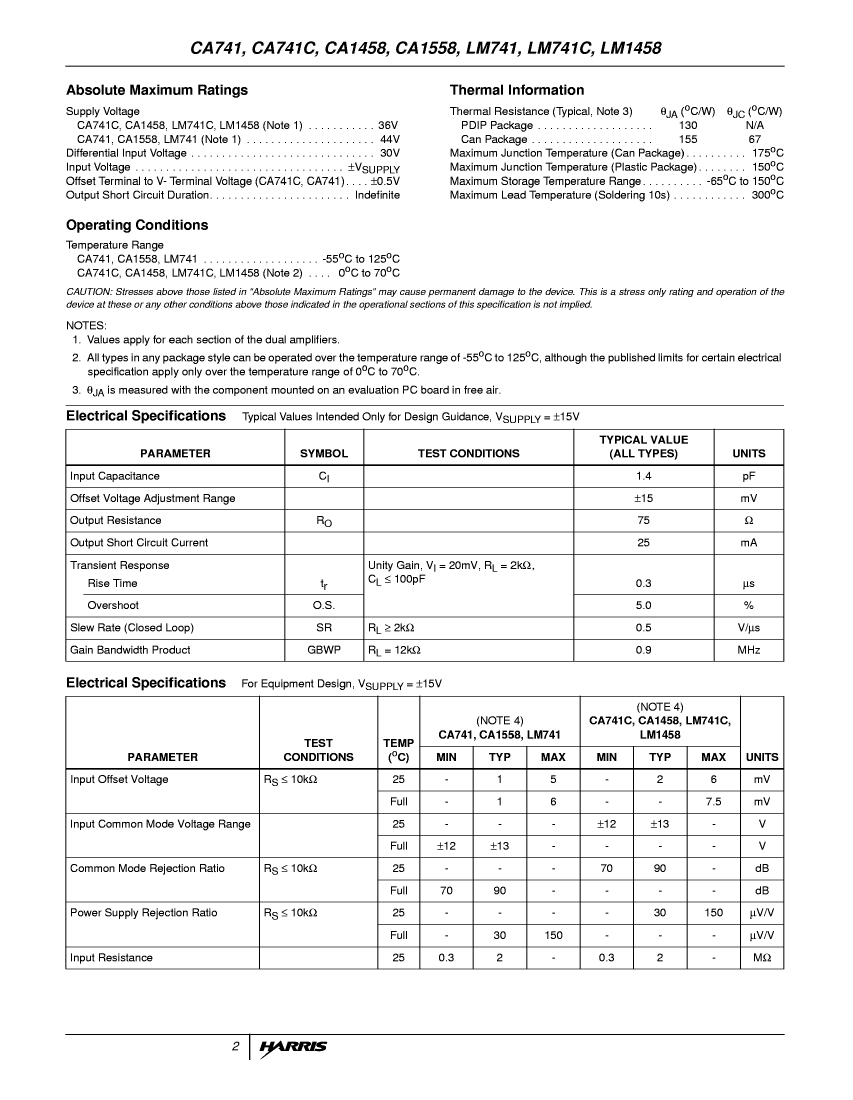

Preview

LM1458AH: DescriptionIC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL; CategoryAnalog mixed-signal IC Amplifier circuit; File Size280KB，5 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

LM1458AH Overview

IC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL

LM1458AH Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	BCY
package instruction	, CAN8,.2
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
frequency compensation	YES
Maximum input offset voltage	7000 µV
JESD-30 code	O-MBCY-W8
JESD-609 code	e0
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	CAN8,.2
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

LM1458AH Related Products

	LM1458AH	LM1458AJ	LM1458AJ-8	CA0741S
Description	IC,OP-AMP,DUAL,BIPOLAR,CAN,8PIN,METAL	LM1458AJ	IC,OP-AMP,DUAL,BIPOLAR,DIP,8PIN,CERAMIC	CA0741S
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	BCY	DIP	DIP	TO-5
Contacts	8	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
frequency compensation	YES	YES	YES	YES
Maximum input offset voltage	7000 µV	7000 µV	7000 µV	6000 µV
JESD-609 code	e0	e0	e0	e0
low-dissonance	NO	NO	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	1
Number of terminals	8	8	8	8
Maximum operating temperature	70 °C	70 °C	70 °C	125 °C
Package body material	METAL	CERAMIC	CERAMIC	METAL
Encapsulate equivalent code	CAN8,.2	DIP8,.3	DIP8,.3	TO-5,8PIN,DIL
power supply	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
package instruction	, CAN8,.2	DIP, DIP8,.3	DIP, DIP8,.3	-
JESD-30 code	O-MBCY-W8	R-XDIP-T8	R-XDIP-T8	-
Package shape	ROUND	RECTANGULAR	RECTANGULAR	-
Package form	CYLINDRICAL	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Terminal form	WIRE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal location	BOTTOM	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
