M2V28S40TP-8A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M2V28S40TP-8A

M2V28S40TP-8A: DescriptionSynchronous DRAM, 8MX16, 6ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54; Categorystorage storage; File Size2MB，51 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M2V28S40TP-8A Overview

Synchronous DRAM, 8MX16, 6ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54

M2V28S40TP-8A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	TSOP2
package instruction	TSOP2, TSOP54,.46,32
Contacts	54
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FOUR BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	125 MHz
I/O type	COMMON
interleaved burst length	1,2,4,8
JESD-30 code	R-PDSO-G54
JESD-609 code	e0
length	22.22 mm
memory density	134217728 bit
Memory IC Type	SYNCHRONOUS DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	54
word count	8388608 words
character code	8000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Encapsulate equivalent code	TSOP54,.46,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
Maximum seat height	1.2 mm
self refresh	YES
Continuous burst length	1,2,4,8,FP
Maximum standby current	0.001 A
Maximum slew rate	0.19 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

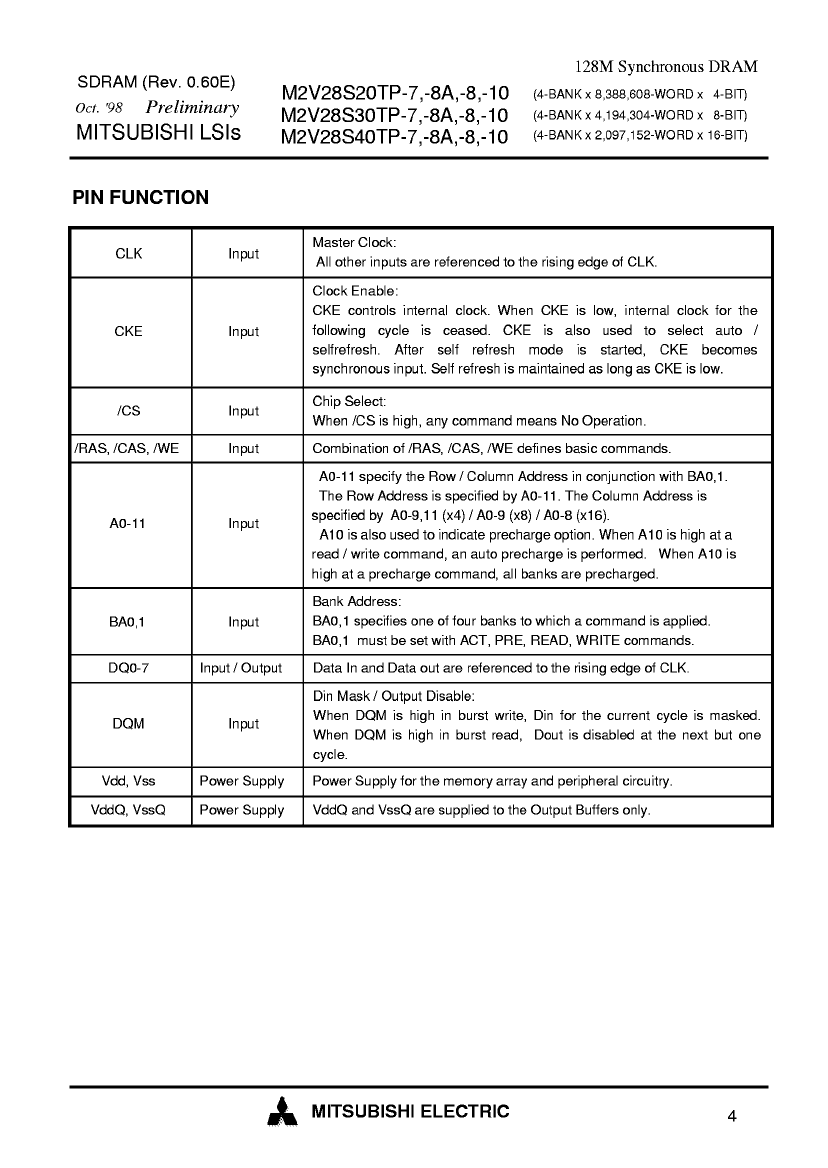

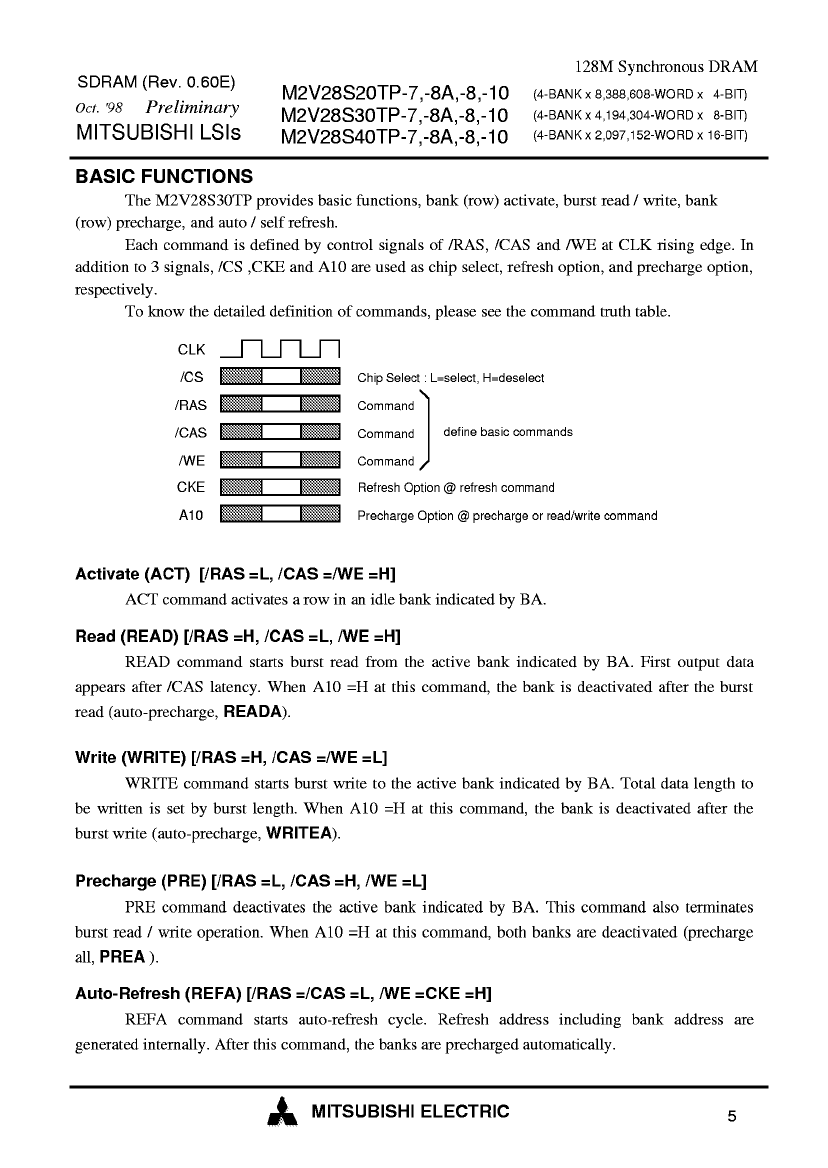

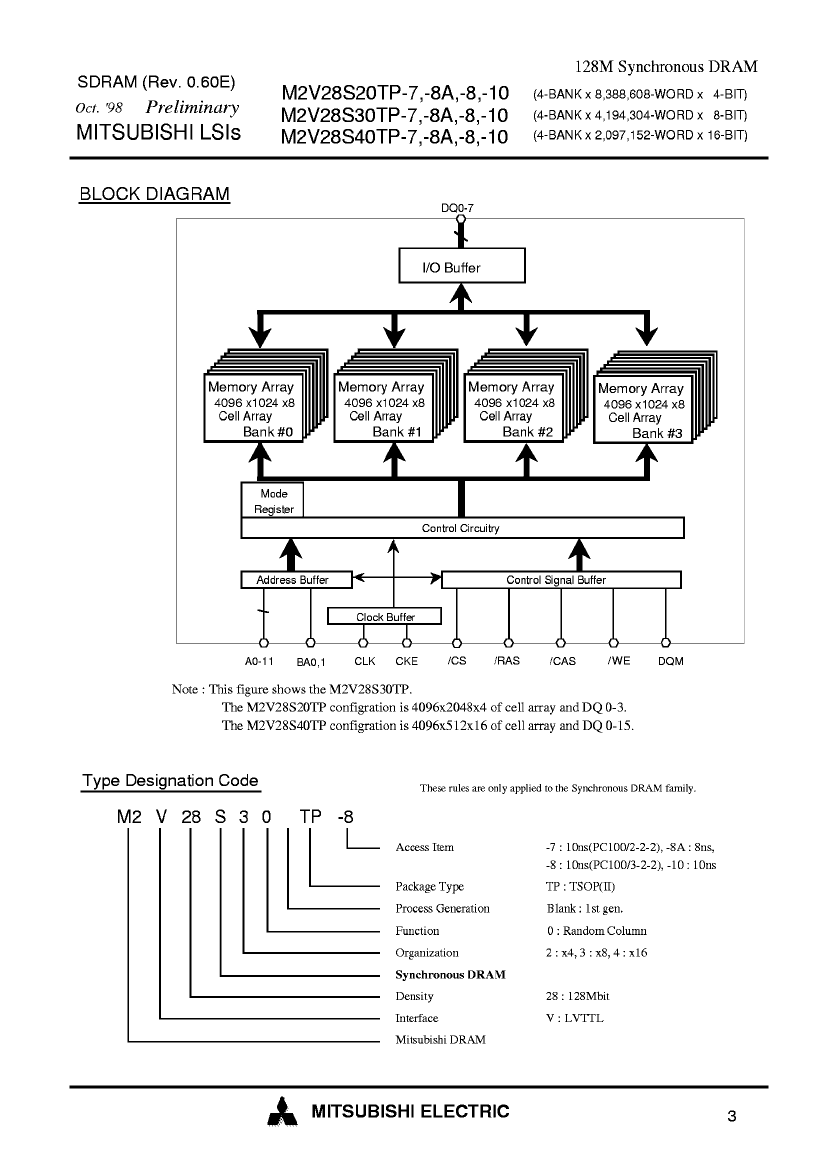

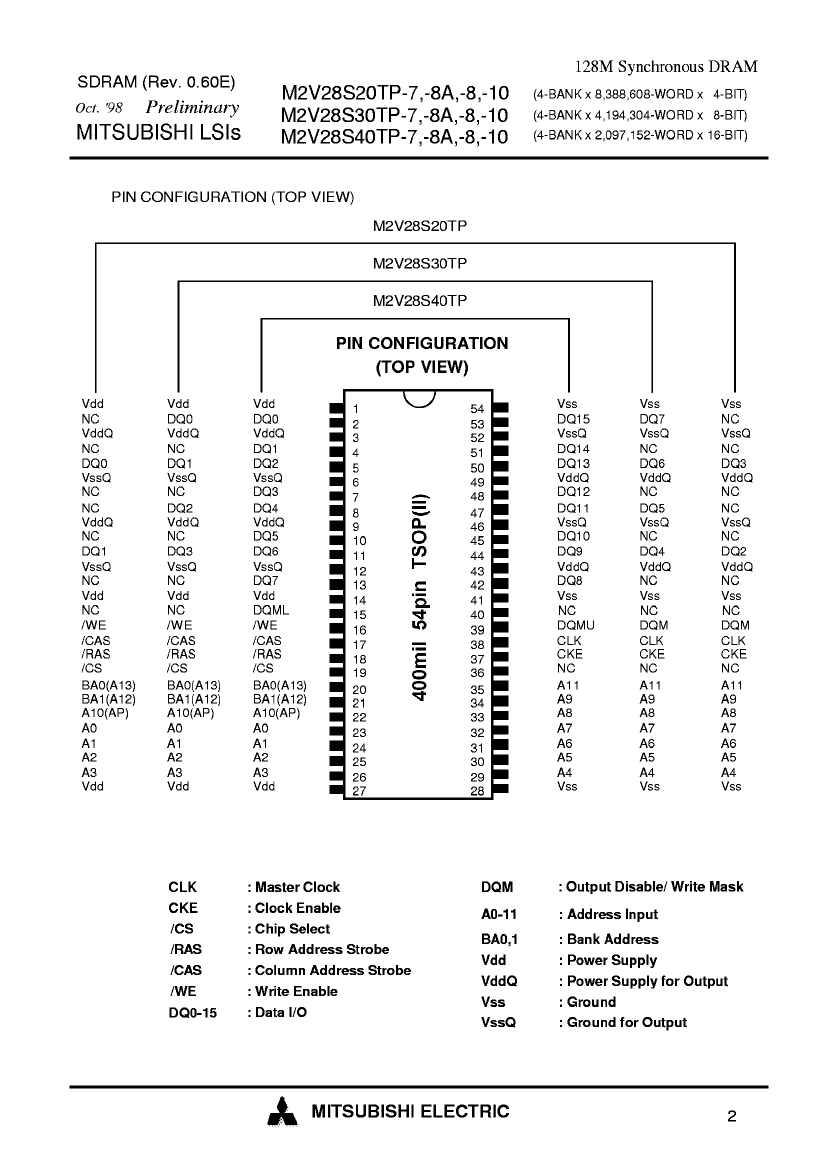

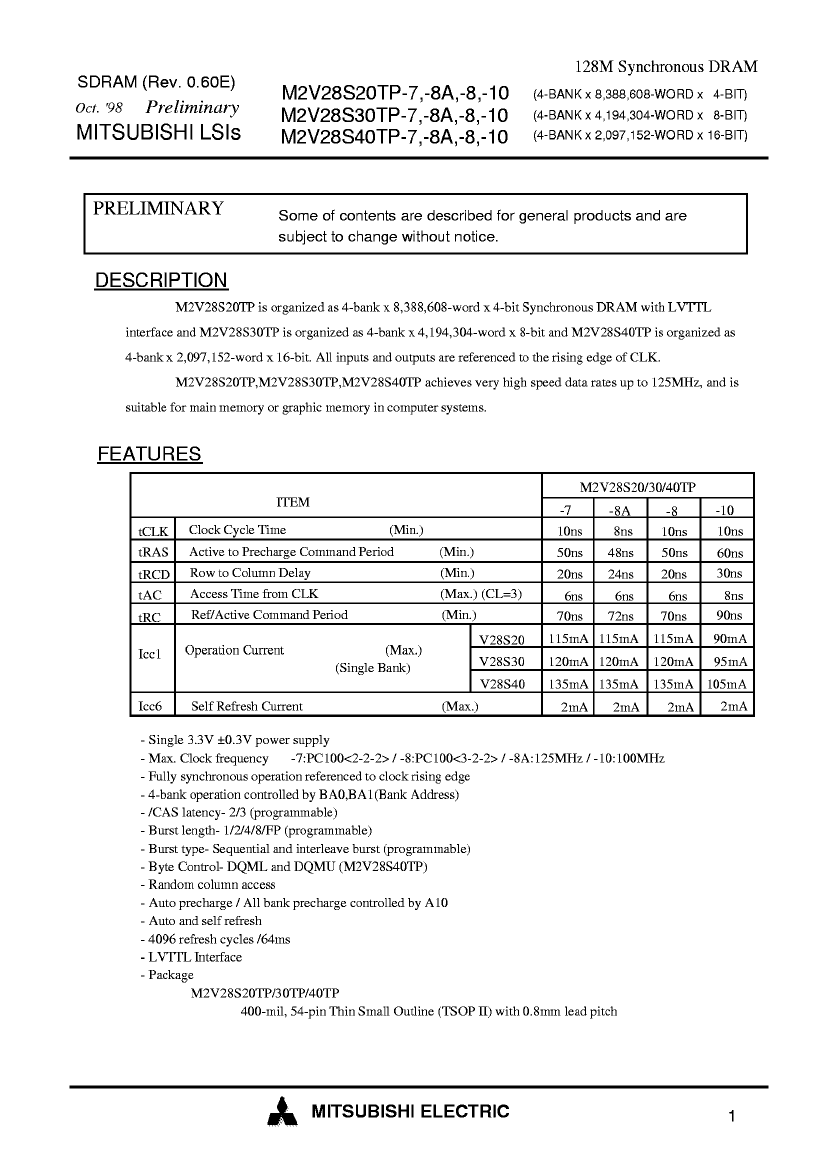

Preview

Download Datasheet

View All

M2V28S40TP-8A Related Products

	M2V28S40TP-8A	M2V28S30TP-8A	M2V28S30TP-10	M2V28S20TP-8A	M2V28S20TP-10	M2V28S40TP-10
Description	Synchronous DRAM, 8MX16, 6ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54	Synchronous DRAM, 16MX8, 6ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54	Synchronous DRAM, 16MX8, 8ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54	Synchronous DRAM, 32MX4, 6ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54	Synchronous DRAM, 32MX4, 8ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54	Synchronous DRAM, 8MX16, 8ns, CMOS, PDSO54, 0.400 INCH, 0.80 MM PITCH, TSOP2-54
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
package instruction	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32	TSOP2, TSOP54,.46,32
Contacts	54	54	54	54	54	54
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST	FOUR BANK PAGE BURST
Maximum access time	6 ns	6 ns	8 ns	6 ns	8 ns	8 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	125 MHz	125 MHz	100 MHz	125 MHz	100 MHz	100 MHz
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
interleaved burst length	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8	1,2,4,8
JESD-30 code	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54	R-PDSO-G54
JESD-609 code	e0	e0	e0	e0	e0	e0
length	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm	22.22 mm
memory density	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit	134217728 bit
Memory IC Type	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM	SYNCHRONOUS DRAM
memory width	16	8	8	4	4	16
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	54	54	54	54	54	54
word count	8388608 words	16777216 words	16777216 words	33554432 words	33554432 words	8388608 words
character code	8000000	16000000	16000000	32000000	32000000	8000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	8MX16	16MX8	16MX8	32MX4	32MX4	8MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2	TSOP2
Encapsulate equivalent code	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32	TSOP54,.46,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	4096	4096	4096	4096	4096	4096
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm	1.2 mm
self refresh	YES	YES	YES	YES	YES	YES
Continuous burst length	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP	1,2,4,8,FP
Maximum standby current	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.19 mA	0.18 mA	0.14 mA	0.18 mA	0.14 mA	0.16 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
