5569-02A2S-225

Description
4.20mm (.165") Pitch Mini-Fit Jr.垄芒 Header, Right Angle, with PCB Mounting Pegs, 2 Circuits, PA Polyamide Nylon 6/6, 94V-0, Bright Tin (Sn) over Nickel (Ni) Plating, Glow Wire Compatible
Categoryunclassified
File Size220KB,4 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet View All

5569-02A2S-225 Overview

4.20mm (.165") Pitch Mini-Fit Jr.垄芒 Header, Right Angle, with PCB Mounting Pegs, 2 Circuits, PA Polyamide Nylon 6/6, 94V-0, Bright Tin (Sn) over Nickel (Ni) Plating, Glow Wire Compatible

This document was generated on 05/21/2010
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
Part Number:
Status:
Overview:
Description:
0050362375
Active
minifit_jr
4.20mm (.165") Pitch Mini-Fit Jr.™ Header, Right Angle, with PCB Mounting Pegs, 2
Circuits, PA Polyamide Nylon 6/6, 94V-0, Bright Tin (Sn) over Nickel (Ni) Plating, Glow
Wire Compatible
Documents:
3D Model

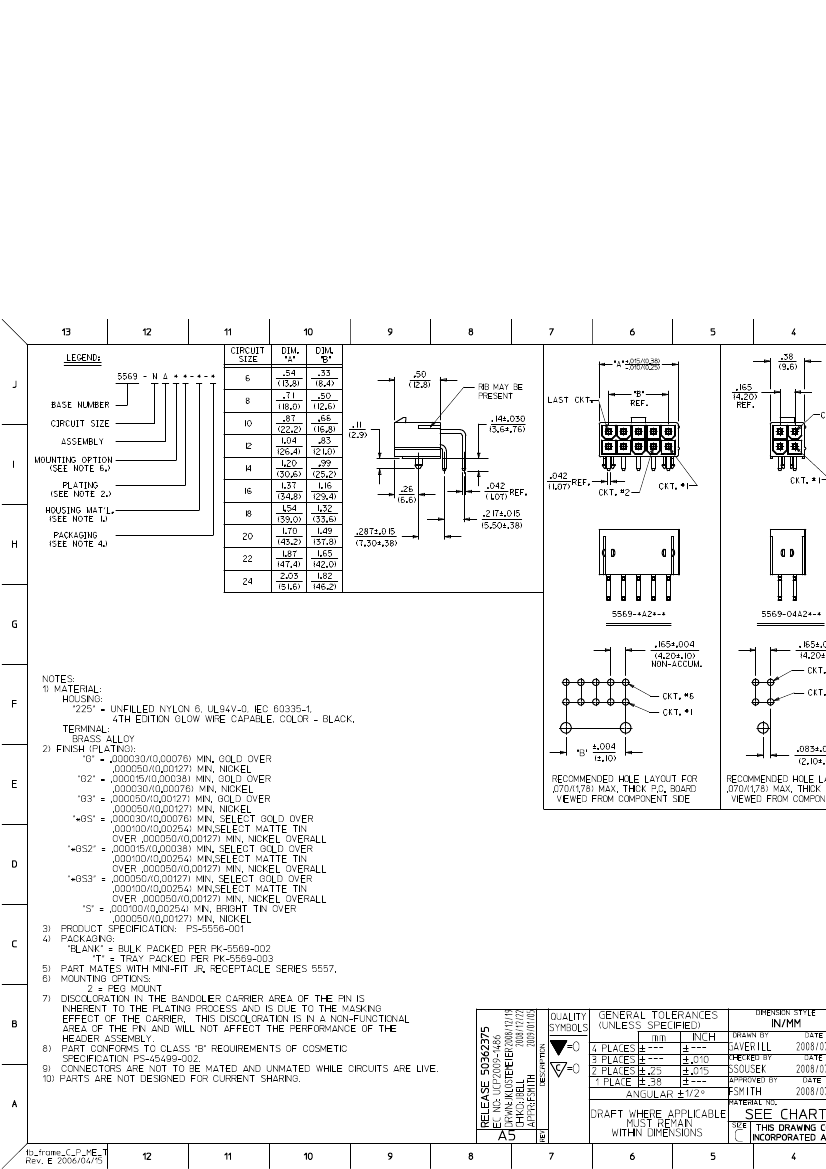

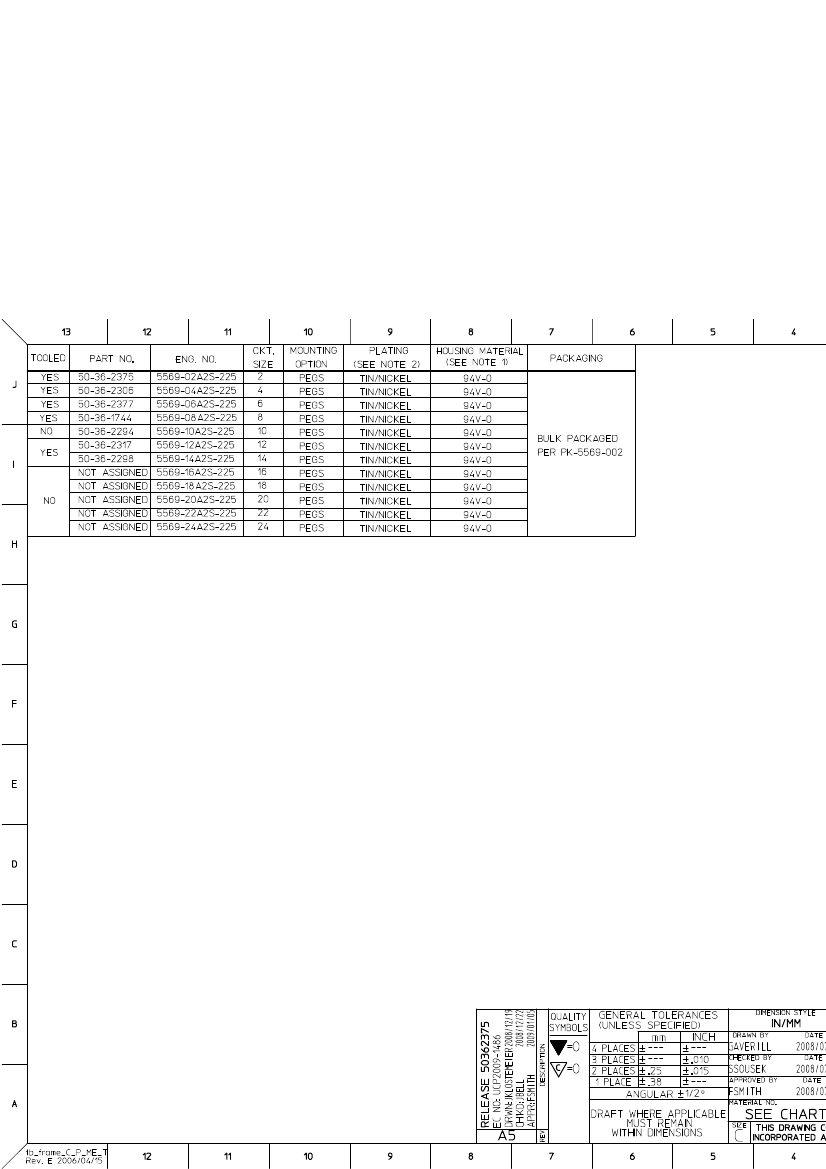

Drawing (PDF)
Product Specification PS-5556-001 (PDF)
RoHS Certificate of Compliance (PDF)
EU RoHS
ELV and
Complia
REACH S
Not Revie
Halogen
Status
Not Revi
Need mo
environm
Agency Certification
CSA
TUV
UL
LR19980
R72081037
E29179
Email pro
For a mu
Complian
General
Product Family
Series
Application
Comments
PCB Headers
5569
Wire-to-Board
Current = 13A max. per circuit when header is mated
to a receptacle loaded with 45750 Mini-Fit Plus HCS™
Crimp Terminal Crimpted to to 16 AWG wire. . See
Molex Product specification PS-5556-001 for additional
current de-rating information.
minifit_jr
Mini-Fit Jr.™
Please vi
non-prod
Search
5569Se
Mates
5557 M
Overview
Product Name
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Circuits Detail
Color - Resin
Durability (mating cycles max)
First Mate / Last Break
Flammability
Glow-Wire Compliant
Guide to Mating Part
Keying to Mating Part
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PC Tail Length (in)
PC Tail Length (mm)
PCB Locator
PCB Retention
PCB Thickness Recommended (in)
PCB Thickness Recommended (mm)
Packaging Type
Pitch - Mating Interface (in)
Pitch - Mating Interface (mm)
No
2
2
2
Black
30
No
94V-0
Yes
No
None
Yes
Brass
Nickel
Tin
Nylon
1
Right Angle
0.142 In
3.60 mm
Yes
Yes
0.070 In
1.78 mm
Bag
0.165 In
4.20 mm
