BAX18 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAX18

BAX18: DescriptionRectifier Diode,; CategoryDiscrete semiconductor diode; File Size28KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

BAX18 Overview

Rectifier Diode,

BAX18 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
package instruction	O-LALF-W2
Reach Compliance Code	compliant
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-204AH
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	9 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	200 °C
Maximum output current	0.4 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.45 W
Guideline	TS 16949
Maximum repetitive peak reverse voltage	75 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.05 µs
Reverse test voltage	75 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

BAX18

FEATURES :

• Switching speed: max. 50 ns

• General application

• Continuous reverse voltage: max. 75 V

• Repetitive peak reverse voltage: max. 75 V

• Repetitive peak forward current: max. 2 A.

• Pb / RoHS Free

SWITCHING DIODE

DO - 35 Glass

(DO-204AH)

0.079(2.0 )max.

1.00 (25.4)

min.

Cathode

Mark

0.150 (3.8)

max.

MECHANICAL DATA :

Case:

DO-35 Glass Case

Weight:

approx. 0.13g

0.020 (0.52)max.

1.00 (25.4)

min.

Dimensions in inches and ( millimeters )

Maximum Ratings and Thermal Characteristics

(Rating at

Parameter

Maximum Repetitive Peak Reverse Voltage

Maximum Continuous Reverse Voltage

Maximum Continuous Forward Current

Maximum Average Forward Current

Maximum Repetitive Peak Forward Current

Maximum Non-repetitive Peak Forward Current at t = 10ms, Tj = 25°C

Maximum Power Dissipation

Maximum Junction Temperature

Storage Temperature Range

C ambient temperature unless otherwise specified.)

Symbol

RRM

F(AV)

FRM

FSM

Value

500

400

450

200

-65 to + 200

Unit

°C

Electrical Characteristics

= 25°C unless otherwise noted)

Parameter

Reverse Current

Forward Voltage

Diode Capacitance

Reverse Recovery Time

Symbol

Trr

Test Condition

= 75 V

= 75 V, Tj = 150°C

= 300 mA

f = 1MHz ; V

= 0

= 30mA , I

= 30mA

= 3mA , R

= 100

Ω

measured at I

= 3 mA

Min

Typ

Max

100

1.0

Unit

µA

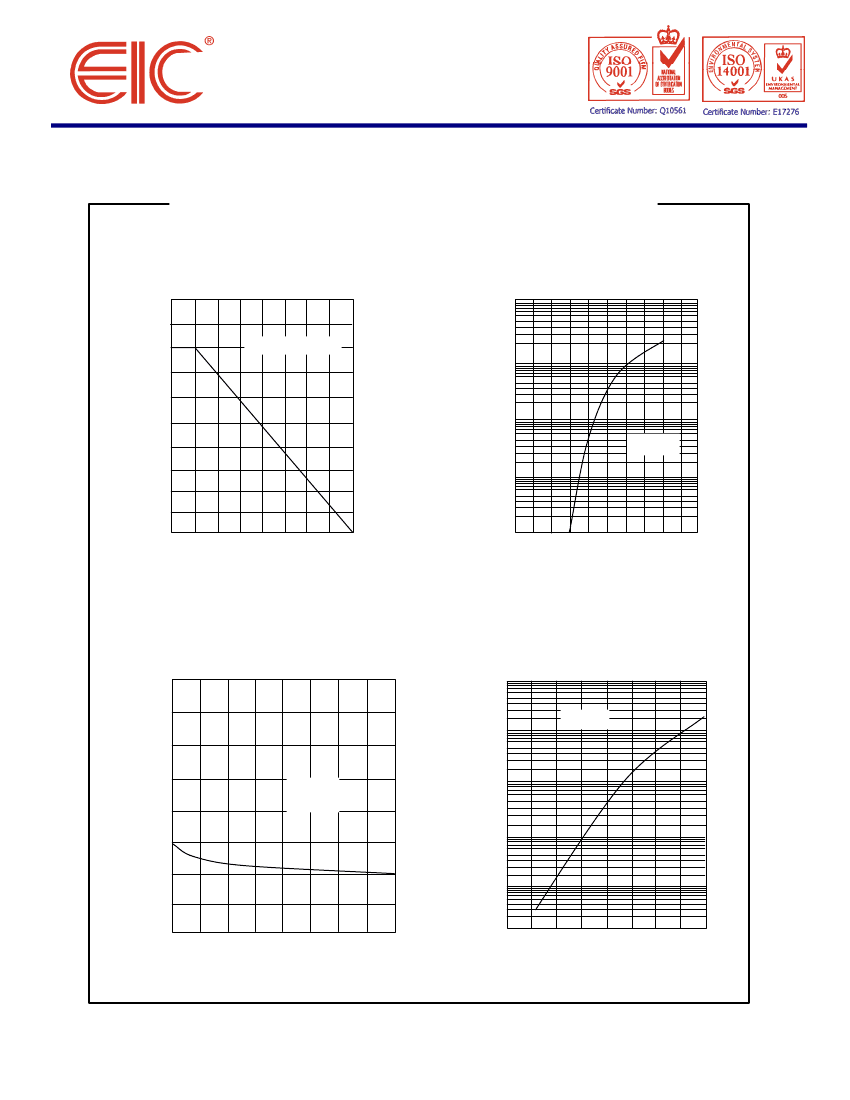

Page 1 of 2

Rev. 02 : March 25, 2005
