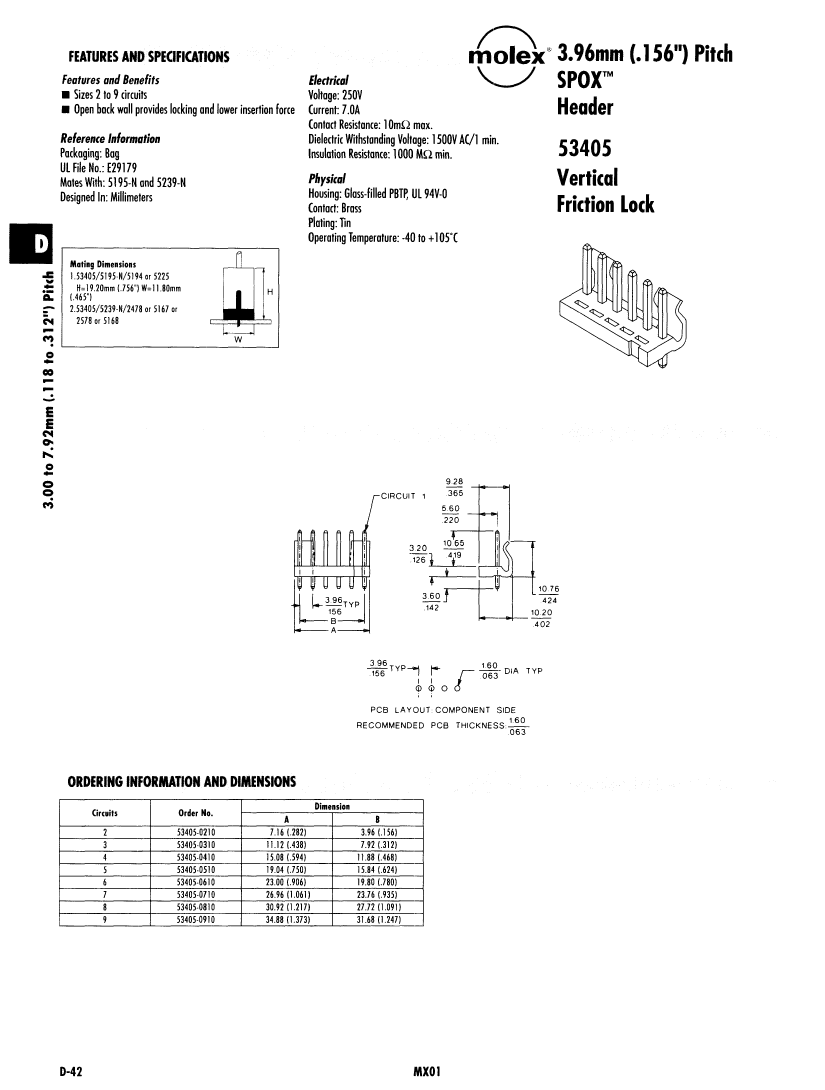

53405-0810: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53405-0810 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle

53405-0810 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SPOX
body width	0.402 inch
subject depth	0.424 inch
body length	1.217 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	LIF N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED PBTP
MIL compliance	NO
Manufacturer's serial number	53405
Plug contact pitch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.142 inch
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
Evacuation force-minimum value	LIF N

Preview

Download Datasheet

View All

53405-0810 Related Products

	53405-0810	53405-0910
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.156 inch Pitch, Solder Terminal, Receptacle
Maker	Molex	Molex
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	SPOX	SPOX
body width	0.402 inch	0.402 inch
subject depth	0.424 inch	0.424 inch
body length	1.217 inch	1.373 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN
Contact completed and terminated	TIN	TIN
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	1500VAC V	1500VAC V
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	LIF N	LIF N
Insulation resistance	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED PBTP	GLASS FILLED PBTP
MIL compliance	NO	NO
Manufacturer's serial number	53405	53405
Plug contact pitch	0.156 inch	0.156 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
Rated current (signal)	7 A	7 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.142 inch	0.142 inch
Terminal pitch	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER
Total number of contacts	8	9
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	LIF N	LIF N
