53481-0609 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53481-0609

53481-0609: DescriptionBoard Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug; CategoryThe connector The connector; File Size293KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53481-0609 Overview

Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug

53481-0609 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.236 inch
body length	1.02 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	53481
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	60
UL Flammability Code	94V-0

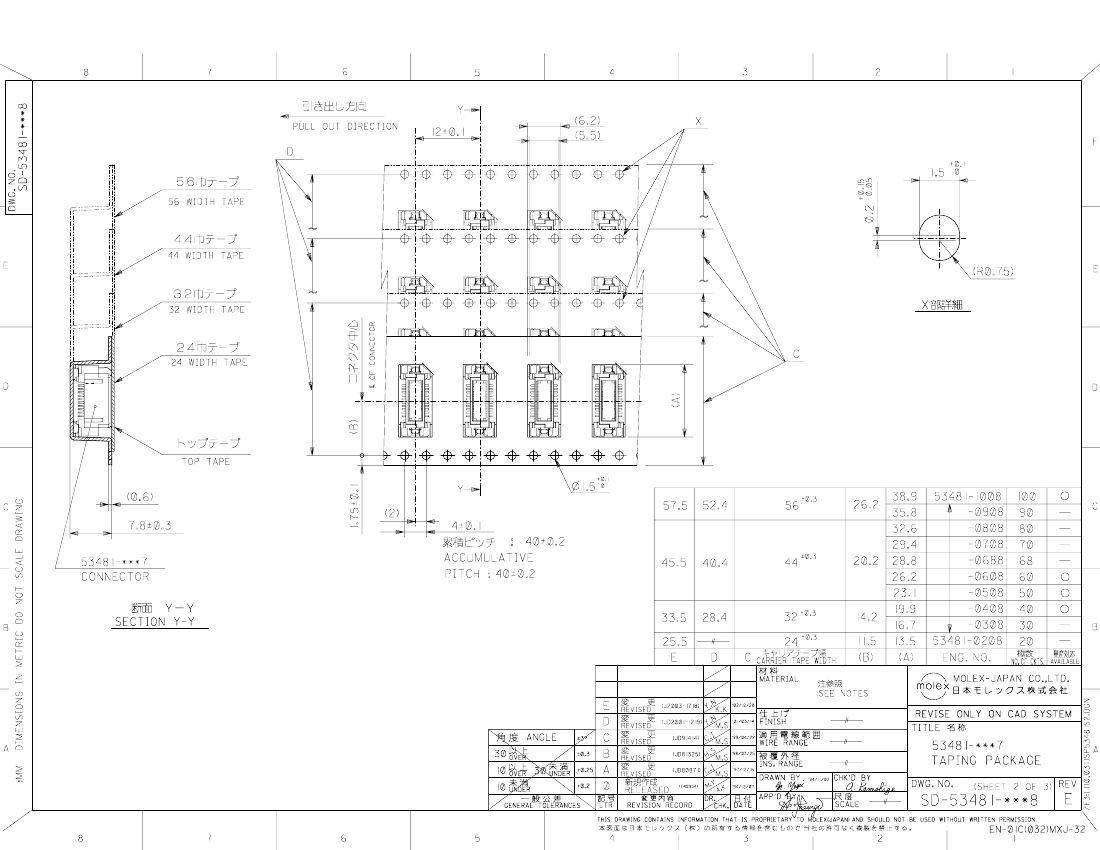

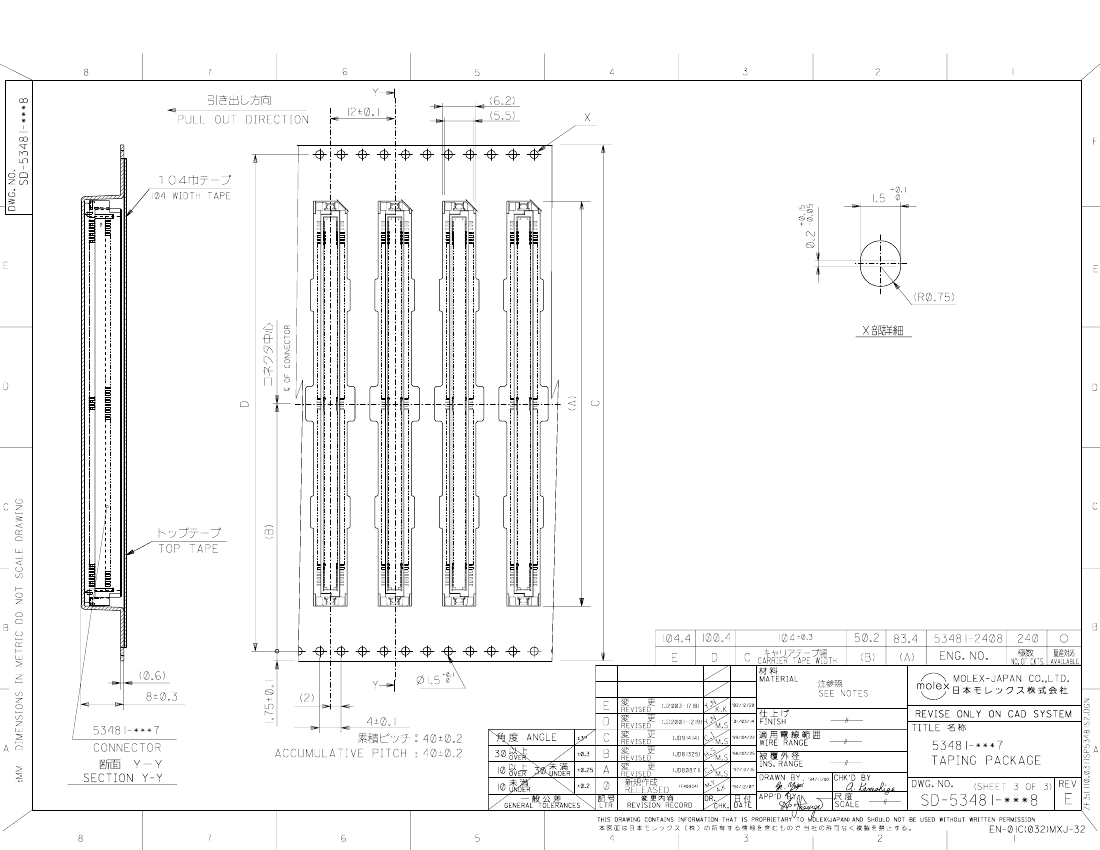

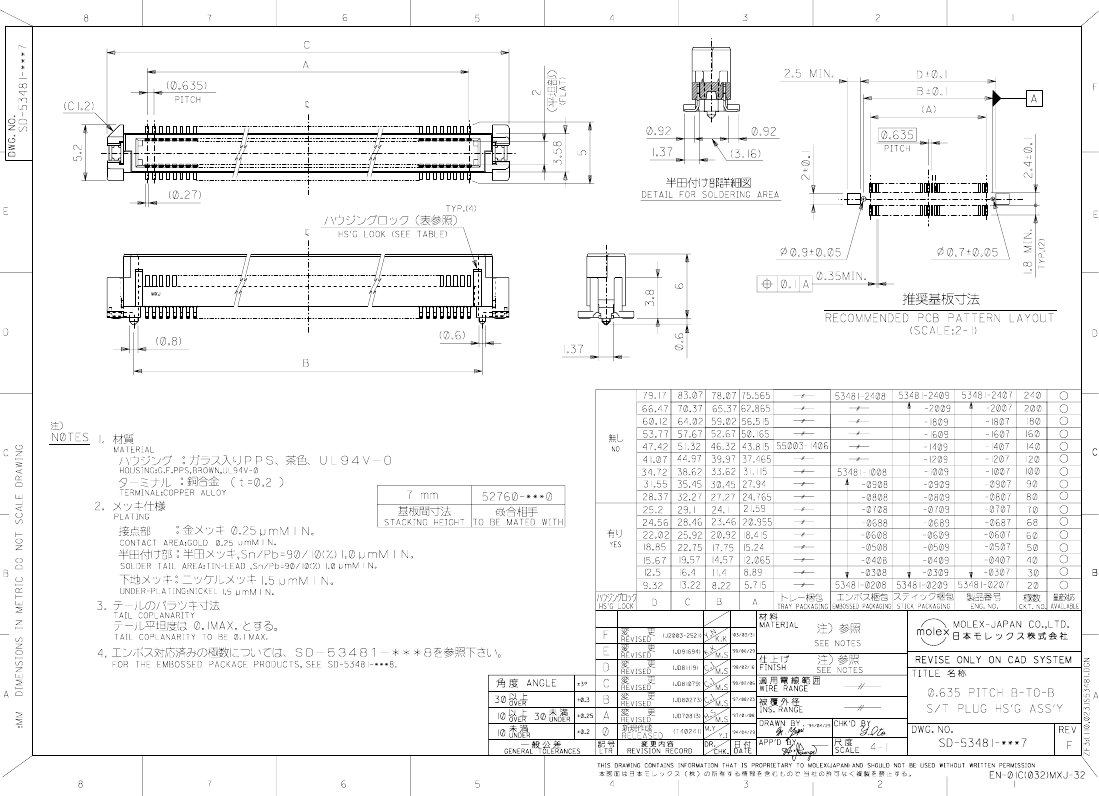

Preview

Download Datasheet

View All

53481-0609 Related Products

	53481-0609	53481-0709	53481-2407	53481-0909	53481-2408	53481-0209	53481-1809	53481-0689
Description	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug	Board Stacking Connector, 70 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug	Board Stacking Connector, 240 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,	Board Stacking Connector, 90 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, White Insulator, Plug	Board Stacking Connector, 240 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, Plug,	Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug	Board Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, White Insulator, Plug	Board Stacking Connector, 68 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Plug
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE	SLIMSTACK, SHROUDED, POLARIZATION AVAILABLE
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	53481	53481	53481	53481	53481	53481	53481	53481
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	60	70	240	90	240	20	180	68
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	-	EAR99	-	EAR99	EAR99	EAR99
Board mount options	POLARIZATION POST	POLARIZATION POST	-	POLARIZATION POST	-	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.205 inch	0.205 inch	-	0.205 inch	-	0.205 inch	0.205 inch	0.205 inch
subject depth	0.236 inch	0.236 inch	-	0.236 inch	-	0.236 inch	0.236 inch	0.236 inch
body length	1.02 inch	1.147 inch	-	1.397 inch	-	0.52 inch	2.52 inch	1.12 inch
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	-	AU ON NI	-	NOT SPECIFIED	NOT SPECIFIED	AU ON NI
Contact material	NOT SPECIFIED	NOT SPECIFIED	-	COPPER ALLOY	-	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	-	40 mΩ	-	40 mΩ	40 mΩ	40 mΩ
Dielectric withstand voltage	250VAC V	250VAC V	-	250VAC V	-	250VAC V	250VAC V	250VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	-	WHITE	-	WHITE	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	-	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Plug contact pitch	0.025 inch	0.025 inch	-	0.025 inch	-	0.025 inch	0.025 inch	0.025 inch
Number of connectors	ONE	ONE	-	ONE	-	ONE	ONE	ONE
PCB row number	2	2	-	2	-	2	2	2
Maximum operating temperature	85 °C	85 °C	-	85 °C	-	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	-	4.191 mm	-	4.191 mm	4.191 mm	4.191 mm
Plating thickness	10u inch	10u inch	-	10u inch	-	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	-	0.5 A	-	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	-	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
