53553-1809 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53553-1809

53553-1809: DescriptionBoard Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug; CategoryThe connector The connector; File Size85KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53553-1809 Overview

Board Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug

53553-1809 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Board mount options	POLARIZATION POST
body width	0.205 inch
subject depth	0.354 inch
body length	2.52 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	70 mΩ
DIN compliance	NO
Dielectric withstand voltage	250VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	53553
Plug contact pitch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	180
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Stacking height: 10.0 and 16.0mm

Sizes 40, 60 and 140 circuits

Housing lock on 20 to 70 circuits

Anti-ﬂux design

Metal solder tabs provide PCB hold down and strain

relief for SMT tails

Polarizing pegs assist placement

Reference Information

Packaging: Tube and embossed tape

Mates With:

52760

(H=10.0mm)

52837

(H=16.0mm)

Designed In: Millimeters

Mating Dimensions

1. 53553 • 52760

H=10.0mm W=6.4mm

2. 53553 • 52837

H=16.0mm W=6.4mm

Physical

Housing: Brown glass-filled PPS, UL 94V-0

Contact: Brass

Plating: Gold over Nickel

Operating Temperature: -55 to +85˚C

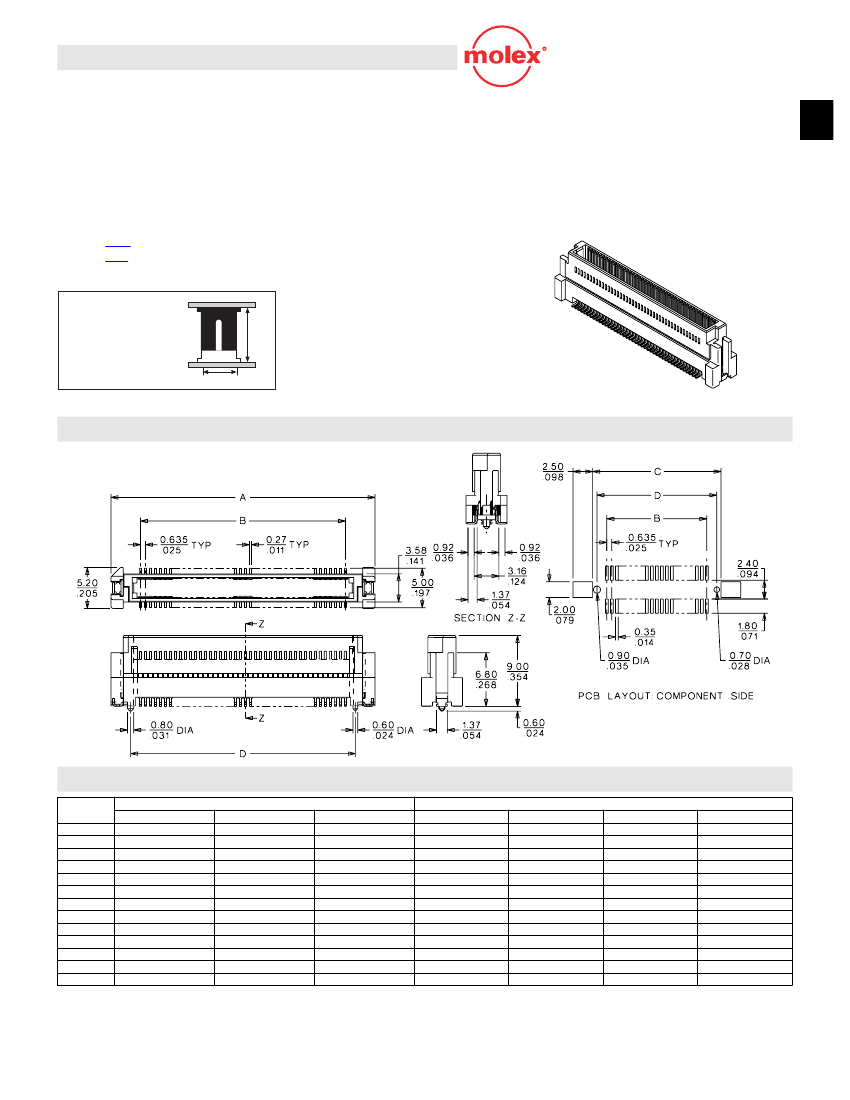

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

100

120

140

160

180

200

Tube

Order No.

Tube with Cover

53627-0205

Note: Contact Molex for embossed tape speciﬁcations

Dimension

Embossed Tape with Cover

53627-0204

53627-0304

53627-0404

53627-0604

53627-0704

53627-0804

53627-0904

13.22

16.40

19.57

25.92

29.10

32.27

35.45

38.62

44.97

51.32

57.67

64.02

70.37

(.520)

(.646)

(.770)

(1.020)

(1.147)

(1.270)

(1.397)

(1.520)

(1.770)

(2.020)

(2.270)

(2.520)

(2.770)

5.71

8.89

11.94

18.30

21.59

24.76

27.94

31.11

37.46

43.81

50.16

56.51

62.86

(.225)

(.350)

(.470)

(.720)

(.850)

(.975)

(1.100)

(1.225)

(1.475)

(1.725)

(1.975)

(2.225)

(2.475)

9.32

12.50

15.67

22.02

25.20

28.37

31.55

34.72

41.07

47.42

53.77

60.12

66.47

(.367)

(.492)

(.616)

(.866)

(.992)

(1.117)

(1.242)

(1.367)

(1.616)

(1.866)

(2.117)

(2.367)

(2.617)

8.22

11.40

14.57

20.92

24.10

27.27

30.45

33.62

39.97

46.32

52.67

59.02

65.37

(.324)

(.449)

(.573)

(.823)

(.949)

(1.073)

(1.199)

(1.324)

(1.573)

(1.823)

(2.074)

(2.324)

(2.574)

53553-0409

53553-0609

53553-0809

53553-1009

53553-1409

53553-1609

53553-1809

53553-2009

53627-1205

53627-1405

53627-1605

53627-0705

53627-0805

Note: Use only one connector per daughterboard in order to insure proper mating alignment

MX01

A-47

0.40 to 1.60mm (.016 to .063") Pitch

Electrical

Voltage: 100V

Current: 0.5A

Contact Resistance: 50m

Ω

max. (H=10.0mm)

70m

Ω

max. (H=16.0mm)

Dielectric Withstanding Voltage: 250V AC

Insulation Resistance: 1000 M

Ω

min.

0.635mm (.025") Pitch

Board-to-Board

Plug

53553/53627

SMT, Dual Row

Vertical Stacking

53553-1809 Related Products

	53553-1809	53553-0609	53553-2009	53553-1009	53553-0809
Description	Board Stacking Connector, 180 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug	Board Stacking Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Brown Insulator, Plug,	Board Stacking Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug,	Board Stacking Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Board mount options	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.205 inch	0.205 inch	0.205 inch	0.205 inch	0.205 inch
subject depth	0.354 inch	0.354 inch	0.354 inch	0.354 inch	0.354 inch
body length	2.52 inch	1.02 inch	2.77 inch	1.52 inch	1.27 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	70 mΩ	70 mΩ	70 mΩ	70 mΩ	70 mΩ
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	250VAC V	250VAC V	250VAC V	250VAC V	250VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BROWN	BROWN	BROWN	BROWN	BROWN
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.191 mm	4.191 mm	4.191 mm	4.191 mm	4.191 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	180	60	200	100	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	53553	53553	53553	53553	-
Base Number Matches	-	1	1	1	1
