BDP31-TAPE-7 datasheet, PDF - EEWORLD Datasheet

BDP31-TAPE-7: DescriptionTRANSISTOR 3 A, 45 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size51KB，2 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

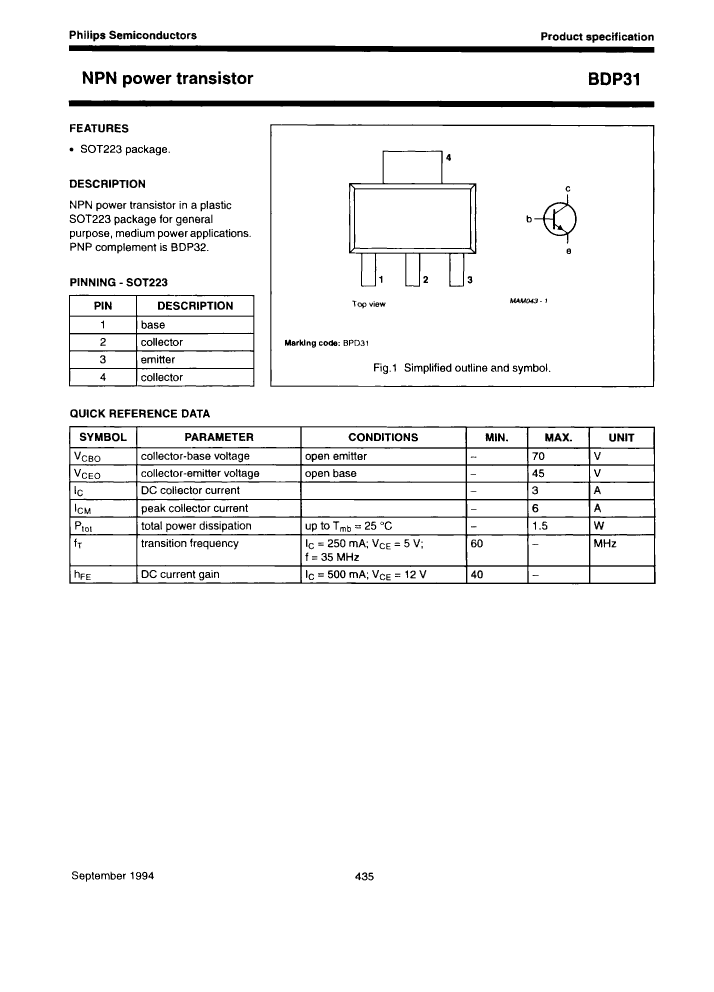

BDP31-TAPE-7 Overview

TRANSISTOR 3 A, 45 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power

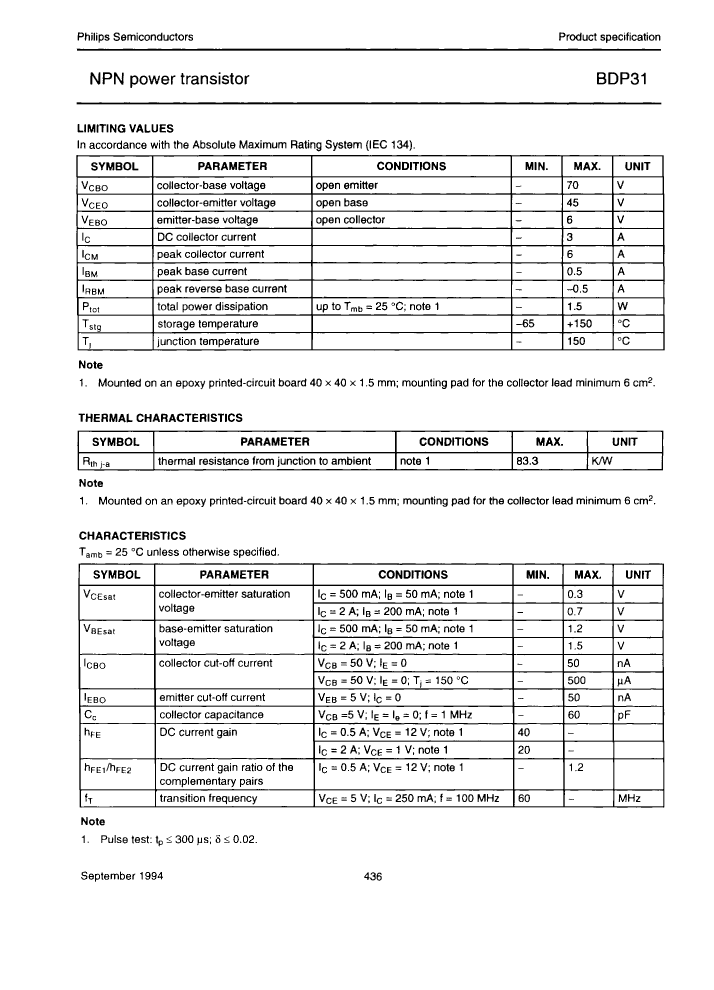

Parameter Name	Attribute value
Maker	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	3 A
Collector-based maximum capacity	60 pF
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	20
JESD-30 code	R-PDSO-G4
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power consumption environment	1.5 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz
VCEsat-Max	0.7 V

	BDP31-TAPE-7	BDP31-TAPE-13
Description	TRANSISTOR 3 A, 45 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 3 A, 45 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power
Maker	NXP	NXP
package instruction	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR
Maximum collector current (IC)	3 A	3 A
Collector-based maximum capacity	60 pF	60 pF
Collector-emitter maximum voltage	45 V	45 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	20	20
JESD-30 code	R-PDSO-G4	R-PDSO-G4
Number of components	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN
Maximum power consumption environment	1.5 W	1.5 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	YES
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	60 MHz	60 MHz
VCEsat-Max	0.7 V	0.7 V
