53647-0204

Description
Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug
CategoryThe connector    The connector
File Size87KB，1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

53647-0204 Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Brown Insulator, Plug

53647-0204 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLARIZED
Board mount optionsPOLARIZATION POST
body width0.205 inch
subject depth0.276 inch
body length0.52 inch
Body/casing typePLUG
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance70 mΩ
DIN complianceNO
Dielectric withstand voltage250VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorBROWN
insulator materialGLASS FILLED POLYPHENYLENE SULPHIDE
MIL complianceNO
Manufacturer's serial number53647
Plug contact pitch0.025 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing4.191 mm
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.635 mm
Termination typeSURFACE MOUNT
Total number of contacts20
UL Flammability Code94V-0

Preview

Download Datasheet
FEATURES AND SPECIFICATIONS
Features and Benefits
Stacking height: 8.0 and 14.0mm
Sizes 40, 60, 120 and 140 circuits
Housing lock on 40 and 60 circuits
Anti-flux design
Metal solder tabs provide PCB hold down and strain
relief for SMT tails
s
Polarizing pegs assist placement
s
s
s
s
s
A
0.40 to 1.60mm (.016 to .063") Pitch
Electrical
Voltage: 100V
Current: 0.5A
Contact Resistance: 50m
Ω
max. (H=8.0mm)
70m
Ω
max. (H=14.0mm)
Dielectric Withstanding Voltage: 250V AC
Insulation Resistance: 1000 M
Ω
min.
Physical
Housing: Brown glass-filled PPS, UL 94V-0
Contact: Brass
Plating: Gold over Nickel
Operating Temperature: -55 to +85˚C
0.635mm (.025") Pitch
Board-to-Board
Plug
53551/53647
SMT, Dual Row
Vertical Stacking
Reference Information
Packaging: Tube and embossed tape
Mates With:
52760
(H=8.0mm)
52837
(H=14.0mm)
Designed In: Millimeters
Mating Dimensions
1. 53551 • 52760
H=8.0mm W=6.4mm
2. 53551 • 52837
H=14.0mm W=6.4mm
W
H

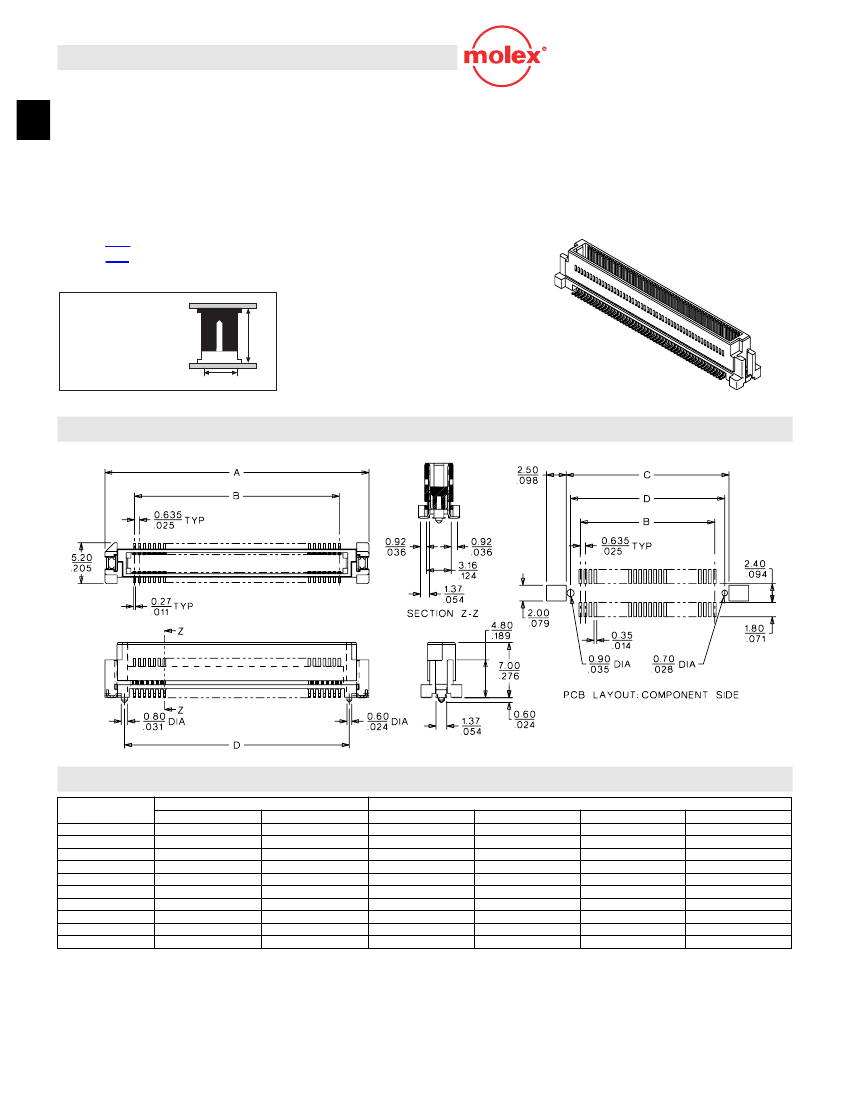

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
20
30
40
60
70
80
100
120
140
160
Tube
Order No.
Embossed Tape with Cover
53647-0204
53647-0304
53647-0404
53647-0604
Dimension
13.22
16.40
19.57
25.92
29.10
32.27
38.62
44.97
51.32
57.67
A
(.520)
(.646)
(.770)
(1.020)
(1.147)
(1.270)
(1.520)
(1.770)
(2.020)
(2.270)
5.715
8.89
12.065
18.415
21.59
24.77
31.12
37.465
43.815
50.165
B
(.225)
(.350)
(.470)
(.720)
(.850)
(.975)
(1.225)
(1.475)
(1.725)
(1.975)
9.32
12.50
15.67
22.02
25.20
28.37
31.12
41.07
47.42
53.77
C
(.367)
(.492)
(.616)
(.866)
(.992)
(1.117)
(1.225)
(1.616)
(1.866)
(2.117)
8.22
11.40
14.57
20.92
24.10
27.27
33.62
39.97
46.32
52.67
D
(.324)
(.449)
(.573)
(.823)
(.949)
(1.074)
(1.324)
(1.573)
(1.823)
(2.074)
53551-0409
53551-0609
53551-0709
53551-0809
53551-1009
53551-1209
53551-1409
52647-1604
Note: Use only one connector per daughterboard in order to insure proper mating alignment
Note: Contact Molex for embossed tape specifications
A-46
MX01
