A-41672-A14A102: Description14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size370KB，12 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

A-41672-A14A102 Overview

14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 03/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0026481146

Active

3.96mm (.156") Pitch KK® Header, Breakaway, Right Angle, with Friction Lock, 14

Circuits, Tin (Sn) Plating

Documents:

3D Model

Packaging Specification (PDF)

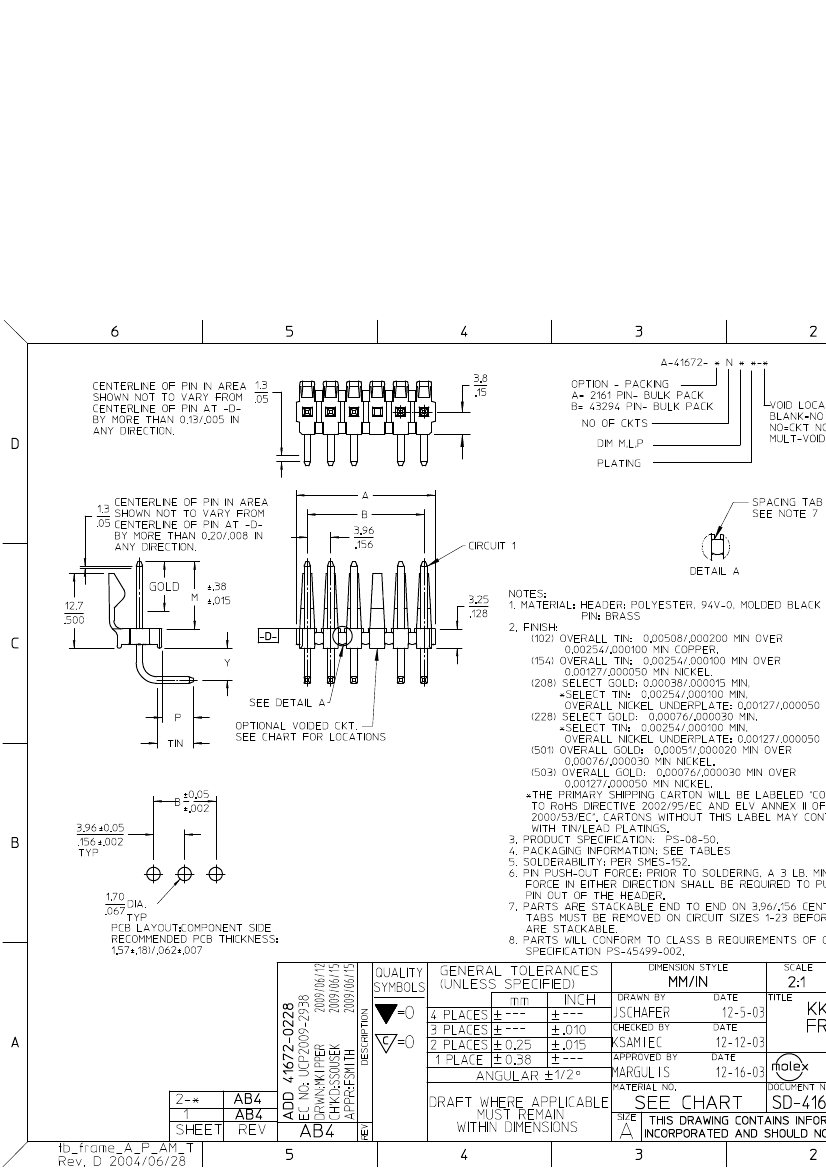

Drawing (PDF)

Product Specification PS-08-50 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

CSA

LR19980

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

41672

Wire-to-Board

KK®

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

Yes

Brass

Tin

Polyester

Right Angle

0.212 In

5.38 mm

None

0.062 In

1.60 mm

Bag

0.156 In

3.96 mm

200

Yes

0°C to +75°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

41672S

Mates

3069 ,

7675 ,

Electrical
