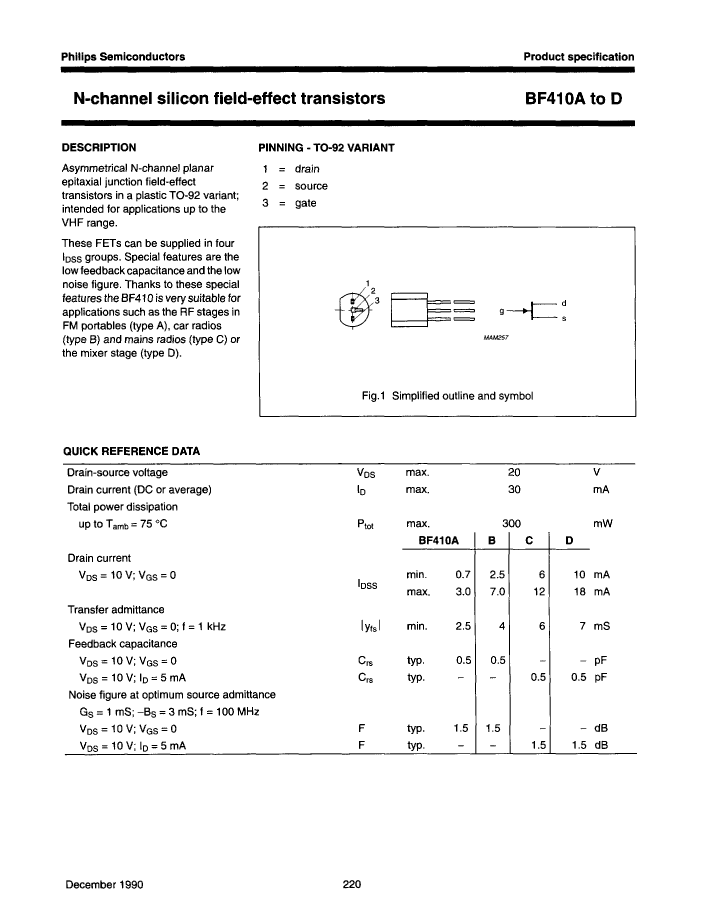

TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92, PLASTIC, TO-92 VARIANT, 3 PIN, FET RF Small Signal

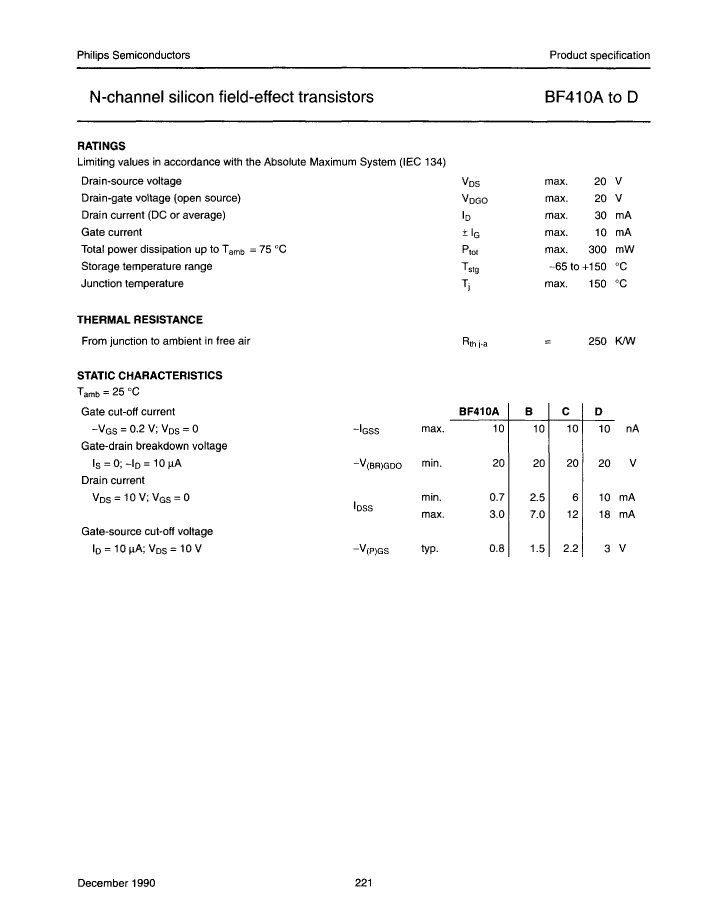

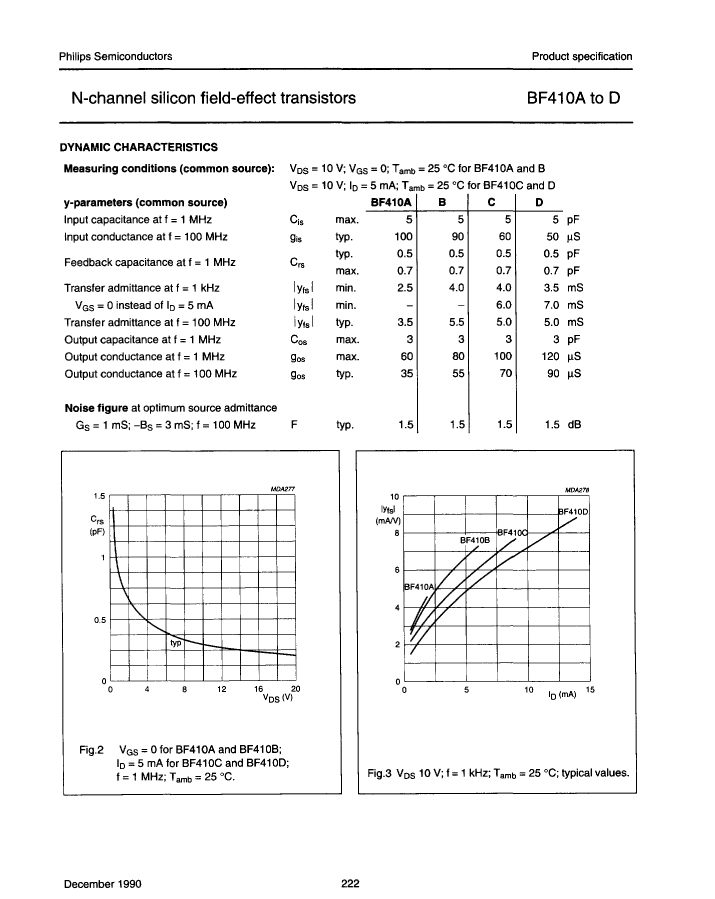

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | NXP |
| Parts packaging code | TO-92 |
| package instruction | CYLINDRICAL, O-PBCY-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Configuration | SINGLE |
| Minimum drain-source breakdown voltage | 20 V |
| Maximum drain current (ID) | 0.03 A |
| FET technology | JUNCTION |
| Maximum feedback capacitance (Crss) | 0.7 pF |
| highest frequency band | VERY HIGH FREQUENCY BAND |
| JEDEC-95 code | TO-92 |
| JESD-30 code | O-PBCY-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | DEPLETION MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | CYLINDRICAL |
| Polarity/channel type | N-CHANNEL |
| Maximum power dissipation(Abs) | 0.3 W |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | BOTTOM |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| BF410C | BF410A | BF410B | BF410D | |
|---|---|---|---|---|
| Description | TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92, PLASTIC, TO-92 VARIANT, 3 PIN, FET RF Small Signal | TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92, PLASTIC, TO-92 VARIANT, 3 PIN, FET RF Small Signal | TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92, PLASTIC, TO-92 VARIANT, 3 PIN, FET RF Small Signal | TRANSISTOR VHF BAND, Si, N-CHANNEL, RF SMALL SIGNAL, JFET, TO-92, PLASTIC, TO-92 VARIANT, 3 PIN, FET RF Small Signal |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Maker | NXP | NXP | NXP | NXP |
| Parts packaging code | TO-92 | TO-92 | TO-92 | TO-92 |
| package instruction | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 | CYLINDRICAL, O-PBCY-T3 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum drain-source breakdown voltage | 20 V | 20 V | 20 V | 20 V |
| Maximum drain current (ID) | 0.03 A | 0.03 A | 0.03 A | 0.03 A |
| FET technology | JUNCTION | JUNCTION | JUNCTION | JUNCTION |
| Maximum feedback capacitance (Crss) | 0.7 pF | 0.7 pF | 0.7 pF | 0.7 pF |
| highest frequency band | VERY HIGH FREQUENCY BAND | VERY HIGH FREQUENCY BAND | VERY HIGH FREQUENCY BAND | VERY HIGH FREQUENCY BAND |
| JEDEC-95 code | TO-92 | TO-92 | TO-92 | TO-92 |
| JESD-30 code | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Operating mode | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE | DEPLETION MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND |
| Package form | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Polarity/channel type | N-CHANNEL | N-CHANNEL | N-CHANNEL | N-CHANNEL |
| Maximum power dissipation(Abs) | 0.3 W | 0.3 W | 0.3 W | 0.3 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON |
