HDSP-52xE Series
HDSP-52xG Series
HDSP-52xY Series
14.2 mm (0.56 inch) General Purpose
Two Digit Seven Segment Displays
Data Sheet
Description

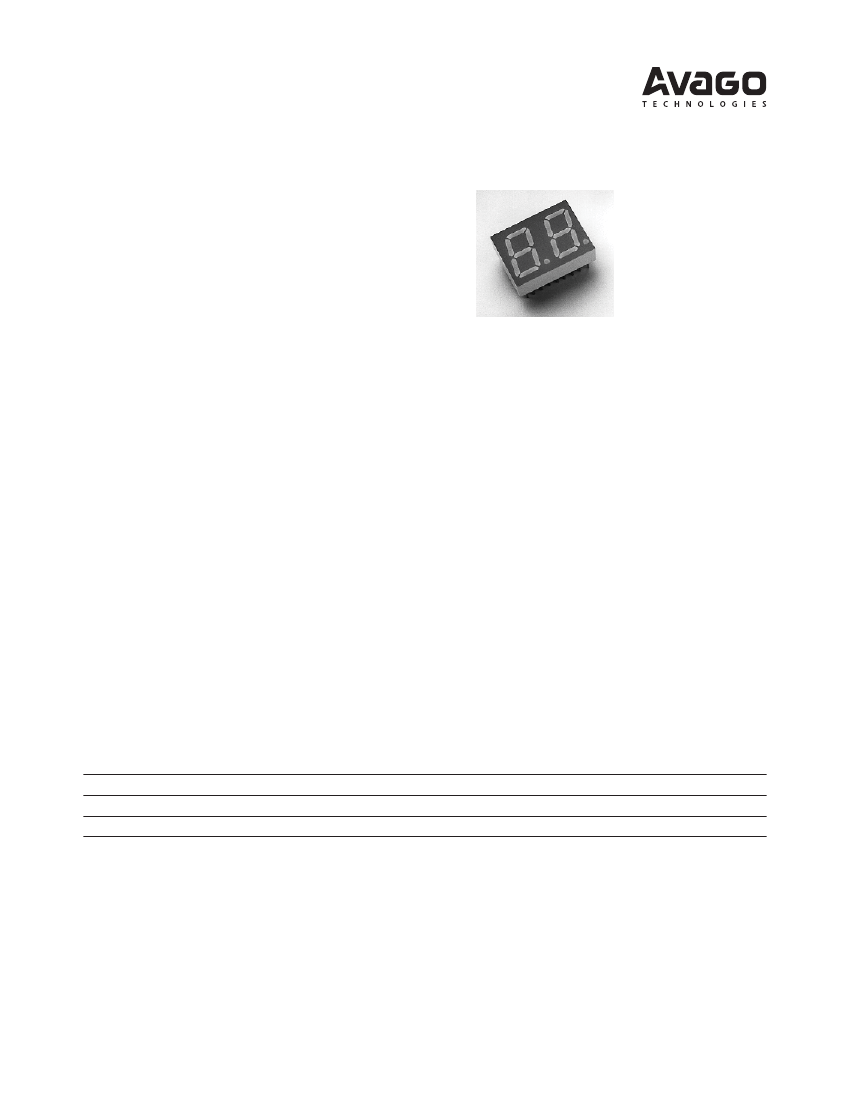

These 14.2 mm (0.56 inch) two digit displays use industry
standard size and pin-out. The devices are available as
either common anode or common cathode. These gray-
faced displays are available in a choice of high efficiency
red (HER), green, or yellow colors. The HDSP-521x and
HDSP-523x series are suitable for indoor use.
These parts are subjected to Outgoing Quality Assurance
(OQA) inspection with AQL of 0.065% for functional and
visual/cosmetic rejects.
Features
Industry standard size
Industry standard pin-out 15.24 mm (0.6 in.) DIP leads
on 2.54 mm (0.1 in.) centers
Choice of colors
Red, green, yellow
Mitered font
Mitered corners on segments
Gray face paint
Gray package gives optimum contrast
±50° viewing angle
Design flexibility
Common anode or common cathode
Categorized for luminous intensity
Green and yellow categorized for color
Applications
Suitable for indoor use
Not recommended for industrial applications, i.e. ope-
rating temperatures requirements exceeding 85° C or
below -35° C
[1]
Extreme temperature cycling not recommended
[2]
Devices
HER HDSP-
521E
523E
Green HDSP-
521G
523G
Yellow HDSP-
521Y
523Y
Description
Common Anode Right Hand Decimal
Common Cathode Right Hand Decima
Notes:
1. For industrial applications, it is recommended to use HDSP-5521/5523/5621/5623/5721/5723.
2. For details, please contact your local Avago sales office or an authorized distributor.
Part Numbering System
5082 – X X X X – X X X XX
HDS P – X X X X – X X X XX
Mechanical Options
[1]
00: No Mechanical Option
Color Bin Options
[1, 2]
0: No Color Bin Limitation
Maximum Intensity Bin
[1, 2]
0: No Maximum Intensity Bin Limitation
Minimum Intensity Bin
[1, 2]
0: No Minimum Intensity Bin Limitation
Device Configuration/Color
[1]
E : High Efficiency Red
G : Green
Y : Yellow
Device Specific Configuration
[1]
Refer to Respective Datasheet
Package
[1]
Refer to Respective Datasheet
Notes:
1. For codes not listed in the figure above, please refer to the respective datasheet or contact your nearest Avago representative for details.
2. Bin options refer to shippable bins for a part number. Color and Intensity Bins are typically restricted to 1 bin per tube (exceptions may apply).
Please refer to respective datasheet for specific bin limit information.
2
Package Dimensions
TOP END VIEW
2.54
(0.100)
COUNTRY OF ORIGIN
HDSP-XXXX
YWW XZ COO
COLOR BINNING
(NOTE 3)
LUMINOUS
INTENSITY
CATEGORY
2.34
(0.092)
DATE CODE
4.27 ± 0.50
(0.168 ± 0.020)
7.80
(0.307)
10°
8.00
(0.315)
18 17 16 15 14 13 12 11 10
0.50
DIA.
(0.020)
18.60
(0.732)
14.22
(0.560)
15.24
(0.600)
1
DIGIT NO. 1
2
3
4
5
6
7
8
9
12.70
(0.500)
4.81
(0.191)
6.150
(0.242)
25.00
(0.984)
6.86
(0.270)
SIDE VIEW
FRONT VIEW
NOTES:
1. ALL DIMENSIONS ARE IN MILLIMETERS (INCHES).
2. TOLERANCE IS 0.25 mm (0.01 INCH) UNLESS OTHERWISE STATED.
3. FOR GREEN AND YELLOW ONLY.
3
Internal Circuit Diagram
18 17
16
15
14
13
12
11
10
COMMON ANODE
a
f
b
f
g
e
d
c
DP
1
2
3
4
5
6
7
8
9
e
g
c
d
DP
b
a
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
c
e
d
c
DP
1
2
3
4
5
6
7
8
9
e
d
DP
FUNCTION
E CATHODE NO. 1
D CATHODE NO. 1
C CATHODE NO. 1
DP CATHODE NO. 1
E CATHODE NO. 2
D CATHODE NO. 2
G CATHODE NO. 2
C CATHODE NO. 2
DP CATHODE NO. 2
B CATHODE NO. 2
A CATHODE NO. 2
F CATHODE NO. 2
DIGIT NO. 2 ANODE
DIGIT NO. 1 ANODE
B CATHODE NO. 1
A CATHODE NO. 1
G CATHODE NO. 1
F CATHODE NO. 1
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
COMMON CATHODE
FUNCTION
E ANODE NO. 1
D ANODE NO. 1
C ANODE NO. 1
DP ANODE NO. 1
E ANODE NO. 2
D ANODE NO. 2
G ANODE NO. 2
C ANODE NO. 2
DP ANODE NO. 2
B ANODE NO. 2
A ANODE NO. 2
F ANODE NO. 2
DIGIT NO. 2 CATHODE
DIGIT NO. 1 CATHODE
B ANODE NO. 1
A ANODE NO. 1
G ANODE NO. 1
F ANODE NO. 1
COMMON ANODE
18 17
16
15
14
13
12
11
10
a
f
b
f
g
a
b
g
COMMON CATHODE
4
Absolute Maximum Ratings at T
A
= 25° C
HER
HDSP-521E
HDSP-523E
62.5
90
25
[1]
5
-35 to +85
-35 to +85
250
Parameter
Average Power per Segment or DP
Peak Forward Current per Segment or DP
(1/10 Duty Cycle, 0.1 ms Pulse Width)
DC Forward Current per Segment or DP
[1]
Reverse Voltage per Segment or DP
Operating Temperature
Storage Temperature
Wave Soldering Temperature for 3 seconds
[4]
(2 mm [0.063 in.] below Body)
Green
HDSP-521G
HDSP-523G
105
90
30
[3]
5
-35 to +85
-35 to +85
250
Yellow
HDSP-521Y
HDSP-523Y
45
60
20
[2]
5
-35 to +85
-35 to +85
250
Units
mW
mA
mA
V
°C
°C
°C
Notes:
1. Derate above 25° C at 0.33 mA/°C.
2. Derate above 25° C at 0.27 mA/°C.
3. Derate above 40 celcius at 0.35 mA/celcius.
4. Not recommended to be soldered more than 2 times. Minimum interval between solderings is 15 minutes. Total soldering time not to exceed
5 seconds.
Optical/Electrical Characteristics at T
A
=25° C
High Efficiency Red
Devices
HDSP-
521E
523E
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Symbol
I
v
V
F
PEAK
d
V
R
V
F
/°C
Min.
2.28
Typ.
4.00
2.05
640
628
Max.
7.69
2.60
Units
mcd
V
nm
nm
V
mV/°C
Test Conditions
I
F
= 10 mA
I
F
= 20 mA
I
F
= 10 mA
I
R
= 100
A
5.0
-2
Green
Devices
HDSP-
521G
523G
Parameter
Luminous Intensity/Segment
(Segment Average)
[1,2]
Forward Voltage/Segment or DP
Peak Wavelength
Dominant Wavelength
[3]
Reverse Voltage/Segment or DP
[4]
Temperature Coefficient of V
F
/
Segment or DP
Symbol
I
v
V
F
PEAK
d
V
R
V
F
/°C
Min.
2.28
Typ.
3.50
2.0
568
Max.
5.13
2.4
576.5
Units
mcd
V
nm
nm
V
mV/°C
Test Conditions
I
F
= 10 mA
I
F
= 20 mA
I
F
= 10 mA
I
R
= 100
A
564.5
5.0
570
-2
5
