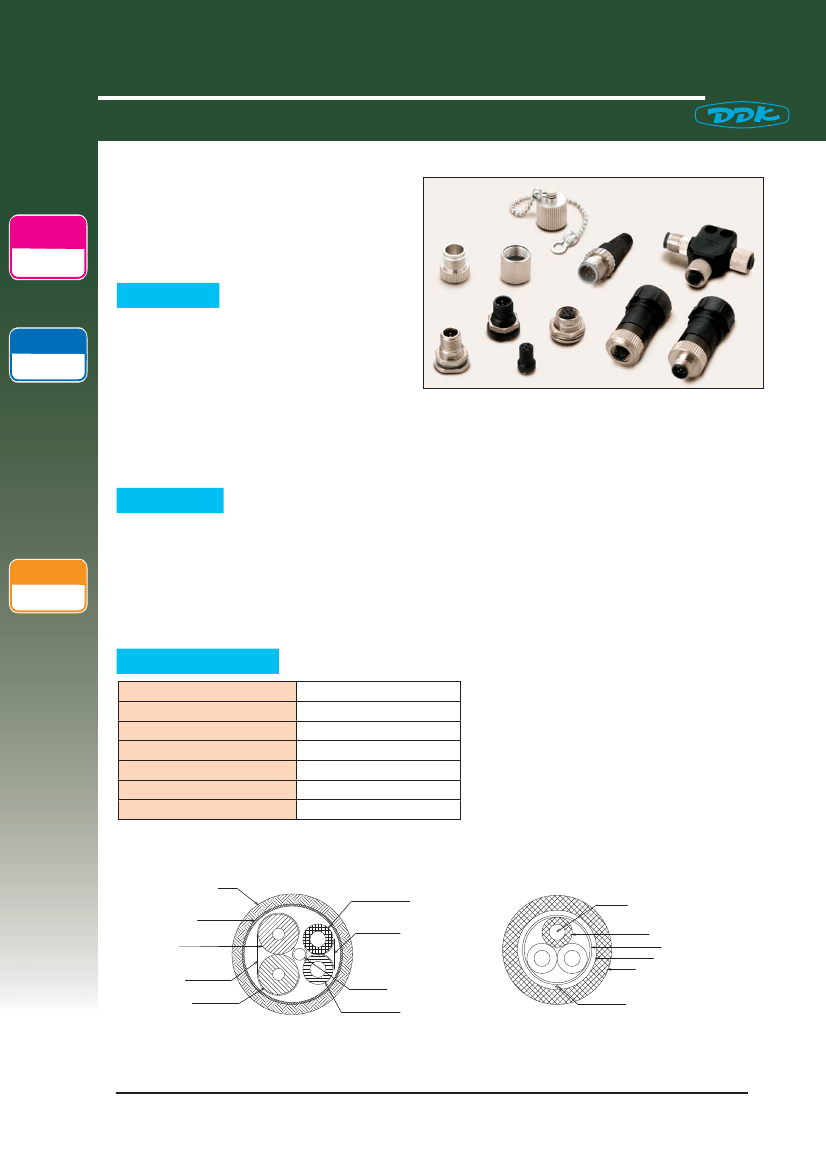

DeviceNet Micro-Style Connectors
CM02 Series
Conforming
Standard
DeviceNet
◆ OUTLINE
The CM02 series is a Micro-style connector for
Wa t e r p r o o f
IP 67
use in a DeviceNet communication network.
These products provide connections between
simple industrial devices such as sensor,
actuators and higher-level devices such as controllers.
This connector system is also recommended for
CCLink
network and can be used in harsh environmental
conditions, having IP67 rated for protection against moisture, oil and dust.
◆ FEATURES
・Crimp termination for the cable mount plugs and jacks
・Receptacle : Soldering
Lock Type
Threaded
Coupling
・Protection from wiring errors by color-coding the contact holder with red, white, blue and black
・Available style are cable mount plug with socket contacts, cable mount jack with pin contacts, T tap, panel mount
receptacle with pin contacts, panel mount plug receptacle with socket contacts, terminating resistor and dust cap
◆ SPECIFICATIONS
Rated Current
Rated Voltage
Dielectric Withstanding Voltage
Insulation Resistance
Operating Temperature Range
Waterproof
No. of Contacts
3A/contact
24V DC
500V AC(r.m.s) for 1 minute
1000M Ω min. at 250V DC
- 40℃ to +85℃
IP67 when mated
5
Physical Configuration of Cables For Example
Jacket
ＤＣ Power Insulation
Color：Black
Braid Shield
AL / MY Shield
Data Insulation
Color：White
AL / MY Shield
Data Insulation
Color：Blue
Conductor
Data Insulation Colors : Blue & Yellow
Ground Insulation Color : White
AL / MY Shield
Braid Shield
Jacket
Drain Wire
ＤＣ Power Insulation
Color：Red
Drain Wire
DeviceNet Thick Cable
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
090206
CC-Link Cable
http://www.ddknet.co.jp
RoHS

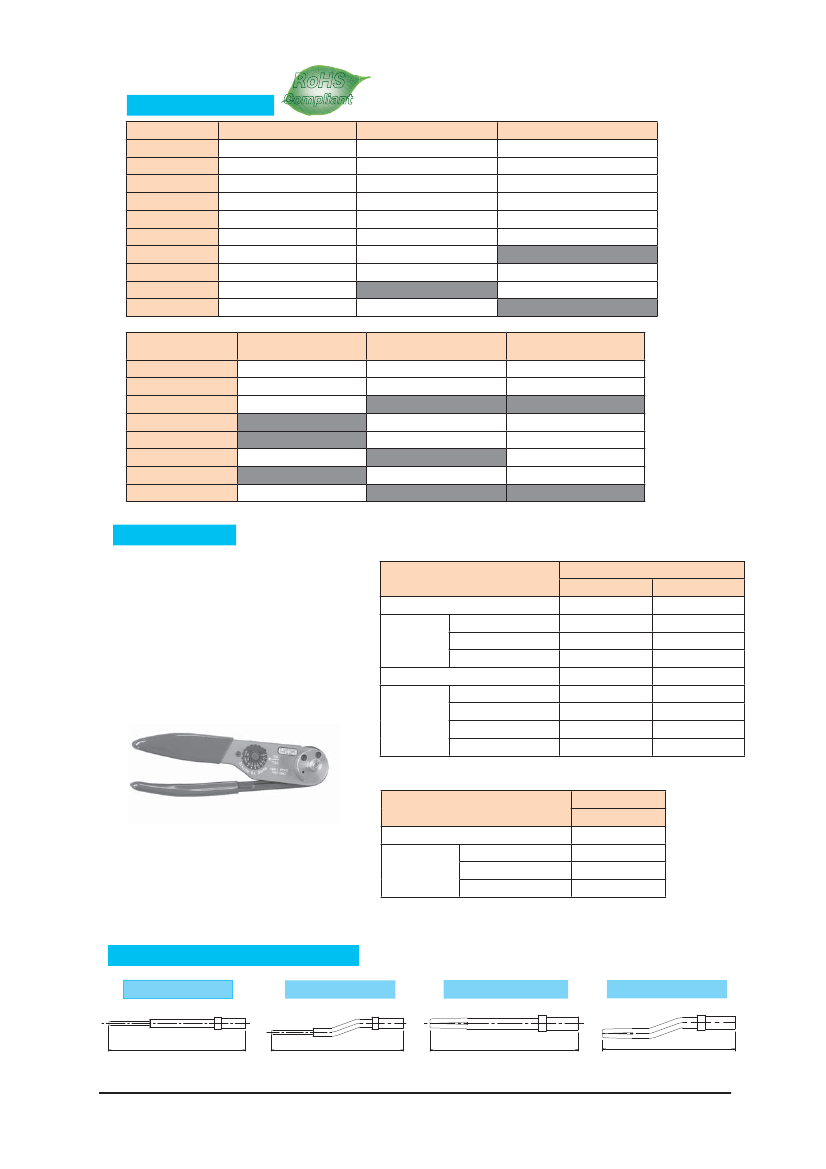

MATERIAL/FINISH
Item
Insulator
Contact
Coupling Ring
Backshell Nut
Contact Holder
Backshell
Clamp Nut
O-Ring
Gasket
Bushing
Compliant
Compliant
Jack
(With Pin Contacts)
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Copper Alloy/Gold Plating
Aluminum Alloy/Black
Plastic(UL94V-0)/Black
Plastic(UL94V-0)/Black
Plastic(UL94V-0)/Black
Synthetic Rubber/Black
Synthetic Rubber/Black
Synthetic Rubber/Black for Socket
Synthetic Rubber/Black
Resistor
(With Pin or Socket Contacts)
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Copper Alloy/Gold Plating
Aluminum Alloy/Black
Plastic(UL94V-0)/Black
Plastic(UL94V-0)/Black
Plug
(With Socket Contacts)
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Copper Alloy/Nickel Plating
Aluminum Alloy/Black
Plastic(UL94V-0)/Black
Plastic(UL94V-0)/Black
Plastic(UL94V-0)/Black
Synthetic Rubber/Black
Synthetic Rubber/Black
Synthetic Rubber/Black
Item
Insulator
Contact
Coupling Ring
Shell
Nut Washer
Gasket(Mating Side)
Gasket(Mounting Side)
Overmolding Resin
“T”Tap
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Zinc Alloy/Nickel Plating
Receptacle
(With Pin Contacts)
Plug Receptacle
(With Socket Contacts)
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Plastic(UL94V-0)/Black
Copper Alloy/Gold Plating
Copper Alloy/Nickel Plating
Copper Alloy/Nickel Plating
Synthetic Rubber/Black
Synthetic Rubber/Black
Plastic(UL94V-0)/Black
Zinc Alloy/Nickel Plating
Copper Alloy/Nickel Plating
Synthetic Rubber/Black
Synthetic Rubber/Black
CRIMP TOOL
・For DeviceNet Plug and Jack
Highly reliable crimp termination can be made for
the straight plug and the straight jack. Two kinds
of crimp tools are needed since a connector has a
straight contact and angle contacts of which style
are different. However the locater can be removed
and you can use one hand tool for termination if
you have two locators each for the straight contact
and the angle contacts.
Contents
Contents
Item
A set of crimp tool for straight contacts
Hand Tool
Locator
Inspection Gauge 2
A set of crimp tool for angle contacts
Hand Tool
Locator
Inspection Gauge 1
Inspection Gauge 2
Conductor Size
AWG 22 - AWG 24
357J-19811
357J-12610
357J-18918
357J-19779-2
357J-19812
357J-12610
357J-17899
357J-19779-1
357J-19779-2
AWG 18 - AWG 20
357J-17917
357J-12610
357J-18918
357J-17900-2
357J-17898
357J-12610
357J-17899
357J-17900-1
357J-17900-2
Item
Conductor Size
AWG 18-AWG 20
357J-21598
357J-12610
357J-17899
357J-17900-2
・For CC-Link Plug and Jack
The connectors for CC-Link network will have four
(4) angle contacts and the style of contact is only
one. It is feasible for you to terminate the cable to
the contacts by one kind of the crimp tool for angle
contacts.
A set of crimp tool for angle contacts
Hand Tool
Contents
Locator
Inspection Gauge 2
◆ CONFIGURATION OF CONTACTS
Straight Pin Contact
Angle Pin Contact
Straight Socket Contact
Angle Socket Contact
30.85
29.35
25.9
24.4
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
CM02 Series
Unit：mm

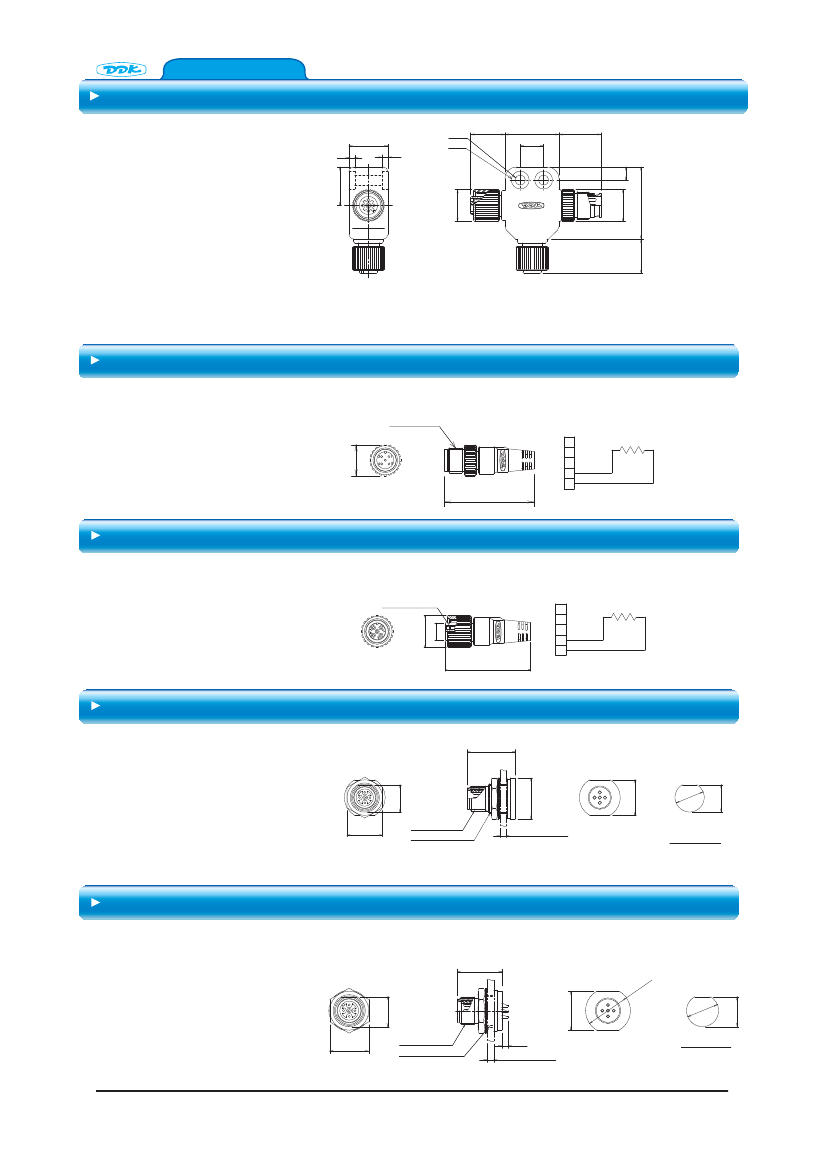

○ Straight Plug With Socket Contacts
・DeviceNet Plug
A set of plug consists of 1 body, 1 straight contact and 4 angle contacts
Applicable Cable
Conductor Size
Outside Dia.
P/N
A set of plug : CM02A-8DP5S-D(02)
Body : CM02A-8DP5S-D(02)-0
Contents
Straight Contact : CM02A-SSC-2224
Angle Contact : CM02A-ASC-2224
A set of plug : CM02A-8DP5S-D(04)
Body : CM02A-8DP5S-D(04)-0
Contents
Straight Contact : CM02A-SSC-2224
Angle Contact : CM02A-ASC-2224
A set of plug : CM02A-8DP5S-D(02)(D9)
Body : CM02A-8DP5S(02)(D9)-0
Contents
Straight Contact : CM02A-SSC-1820
Angle Contact : CM02A-ASC-1820
A set of plug : CM02A-8DP5S-D
Body : CM02A-8DP5S-D-0
Contents
Straight Contact : CM02A-SSC-1820
Angle Contact : CM02A-ASC-1820
A set of plug : CM02A-8DP5S-D(01)
Body : CM02A-8DP5S-D(01)-0
Contents
Straight Contact : CM02A-SSC-1820
Angle Contact : CM02A-ASC-1820
AWG22 - AWG24
φ 6.5mm - φ 7.2mm
AWG22 - AWG24
φ 8.8mm - φ 9.8mm
AWG18 - AWG20
φ 6.5mm - φ 7.2mm
AWG18 - AWG20
φ 8.2mm - φ 8.9mm
AWG18 - AWG20
φ 9.4mm - φ 9.9mm
A soldering style is also available.
P/N : CM02A-8DP5S-D(02)(D4)
Applicable Cable : AWG16 max. conductor size φ 6.5mm - φ 7.2mm outside dia.
・CC-Link Plug
A set of plug consists of 1 body and 4 angle contacts
P/N
A set of plug : CM02A-8DP5S-D(03)
Contents
Body : CM02A-8DP5S-D(03)-0
Angle Contact : CM02A-ASC-1820
Applicable Cable
Conductor Size
Outside Dia.
AWG18 - AWG20
φ 7.2mm - φ 7.9mm
54
M12×1 Thread
A
φ23.6
A
（Contact No.1）
φ21
φ8.1
Red
（Contact No.2）
White
（Contact No.4）
Blue
（Contact No.5）
Black
（Contact No.3）
Section Ａ−Ａ
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
CM02 Series
Unit：mm
○ Straight Jack With Pin Contacts
・DeviceNet Jack
A set of Jack consists of 1 body, 1 straight contact and 4 angle contacts
Applicable Cable
Conductor Size
Outside Dia.
P/N
A set of Jack : CM02A-8DJ5P-D(02)
Body : CM02A-8DJ5P-D(02)-0
Contents
Straight Contact : CM02A-SPC-2224
Angle Contact : CM02A-APC-2224
A set of Jack : CM02A-8DJ5P-D(04)
Body : CM02A-8DJ5P-D(04)-0
Contents
Straight Contact : CM02A-SPC-2224
Angle Contact : CM02A-APC-2224
A set of Jack : CM02A-8DJ5P-D(02)(D9)
Body : CM02A-8DJ5P-D(02)(D9)-0
Contents
Straight Contact : CM02A-SPC-1820
Angle Contact : CM02A-APC-1820
A set of Jack : CM02A-8DJ5P-D
Body : CM02A-8DJ5P-D-0
Contents
Straight Contact : CM02A-SPC-1820
Angle Contact : CM02A-APC-1820
A set of Jack : CM02A-8DJ5P-D(01)
Body : CM02A-8DJ5P-D(01)-0
Contents
Straight Contact : CM02A-SPC-1820
Angle Contact : CM02A-SPC-1820
AWG22 - AWG24
φ 6.5mm - φ 7.2mm
AWG22 - AWG24
φ 8.8mm - φ 9.8mm
AWG18 - AWG20
φ 6.5mm - φ 7.2mm
AWG18 - AWG20
φ 8.2mm - φ 8.9mm
AWG18 - AWG20
φ 9.4mm - φ 9.9mm
A soldering style is also available.
P/N : CM02A-8DJ5P-D(02)(D4)
Applicable Cable : AWG16 max. conductor size.
φ 6.5mm - φ 7.2mm outside dia.
・CC-Link Jack
A set of Jack consists of 1 body and 4 angle contacts
Applicable Cable
Conductor Size
Outside Dia.
P/N
A set of plug : CM02A-8DJ5P-D(03)
Contents
Body : CM02A-8DJ5P-D(03)-0
Angle Contact : CM02A-APC-1820
AWG
18 -
AWG
20
φ 7.2mm - φ 7.9mm
M12×1 Thread
58
A
A
（Contact No.1）
White
（Contact No.4）
Red
（Contact No.2）
Blue
（Contact No.5）
Black
（Contact No.3）
SectionＡ−Ａ
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
φ23.6
φ21
CM02 Series
Unit：mm
○ Ｔ Tap
P/N : CM02-8D2TA5-CF
2.5
φ4.5
17
2.5
5.7
φ14
φ7.8
15
23.6
10.2
18.4
16.8
ＪＡＰＡＮ
Jack
（Pin）
Plug
（Socket）
φ14
1 NC
2 NC
3 NC
4
5
1 NC
2 NC
3 NC
4
5
Plug
（Socket）
○ Terminating Resistor With Pin Contacts
・Terminated between No. 4 and No. 5 with resistor, 121 ohm,1/4 watt.
P/N : CM02B-8DER5P
φ15
M12×1 Thread
121Ω
43
Wiring Diagram
○ Terminating Resistor With Socket Contacts
・Terminated between No. 4 and No. 5 with resistor, 121 ohm,1/4 watt.
P/N：CM02B-8DER5S
M12×1 Thread
φ15
φ8.1
121Ω
40
Wiring Diagram
○ Receptacle with Plastic Shell and Pin Contacts, Type 1
P/N : CM02-8DR5P-CF
・P C B Contacts
・Rear-mount configuration
・Applicable wire size : AWG22 max.
23
15
31.5
φ19.6
４
３
２
φ1
17
M12×1 Thread
M14×0.75 Thread
３ Max.
(Panel Thickness)
Mounting Hole
○ Receptacle with Plastic Shell and Pin Contacts, Type 2
P/N : CM02-8DR5P-CF(D5)
・P C B Contacts
・Rear-mount configuration
・Applicable wire size : AWG22 max.
(13)
19.4
19
φ
１
.6
４
３
２
4
φ1
17
M12 1 Thread
M14 0.75 Thread
(2.7)
３ Max.
(Panel Thickness)
Mounting Hole
◎ Specifications and/or dimensions in this catalog are subject to change without notice.
Your checking the latest specifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
+0.1
13.1
0
17
+0.1
0
13.1
0
13.1
１
17
4
0
+0.1
+0.1
