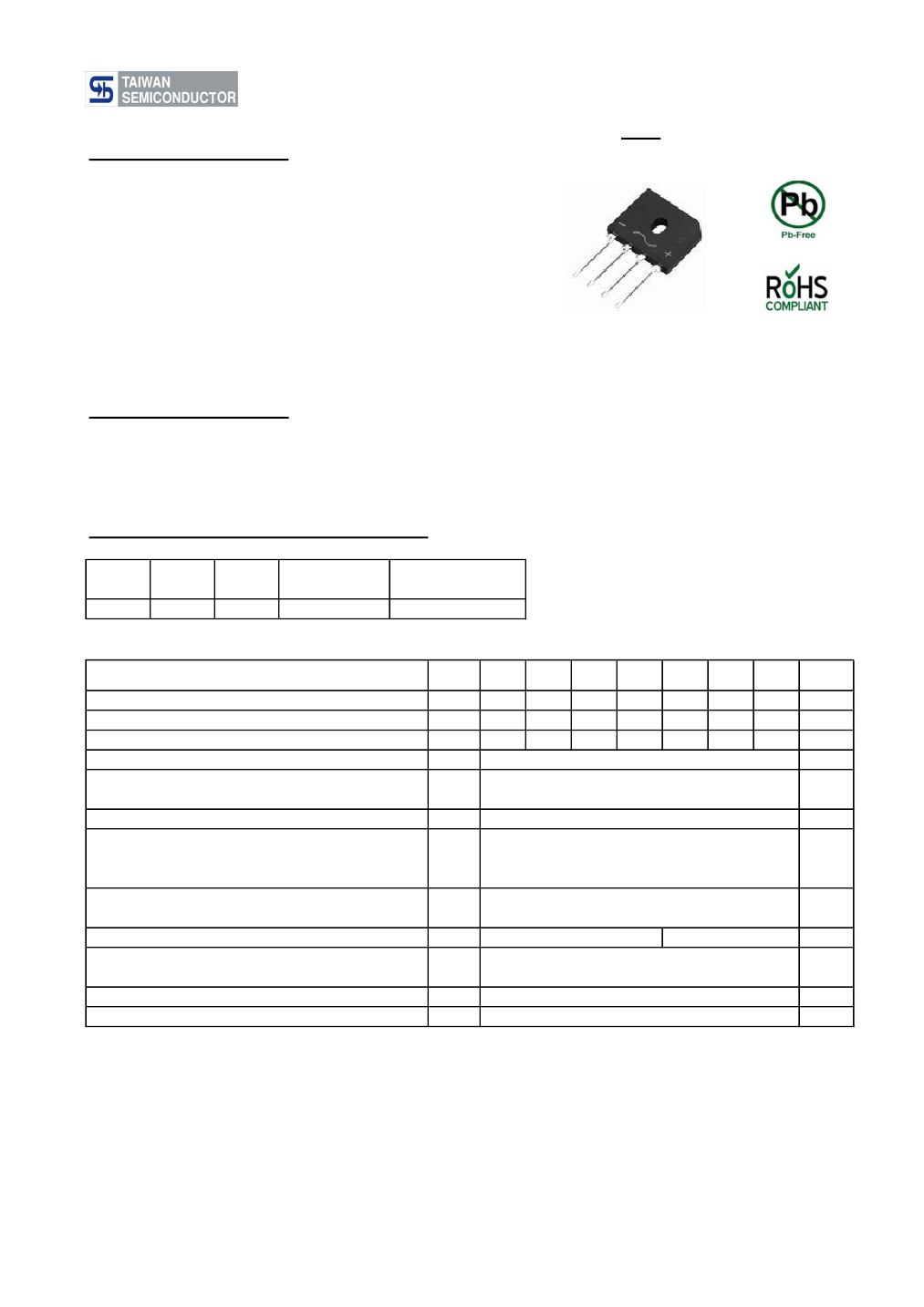

GBU801 - GBU807
Single Phase 8.0AMPS. Glass Passivated Bridge Rectifiers
GBU
Features
UL Recoganized File # E-326243
Glass passivated junction
Ideal for printed circuit board
High case dielectric strength of 1500 Vrms
Plastic material has Underwriters laboratory
flammability Classification 94V-0
Typical IR less than 0.1uA
High surge current capability
High temperature soldering guaranteed:
260℃/10 seconds
Green compound with suffix "G" on packing
code & prefix "G" on datecode

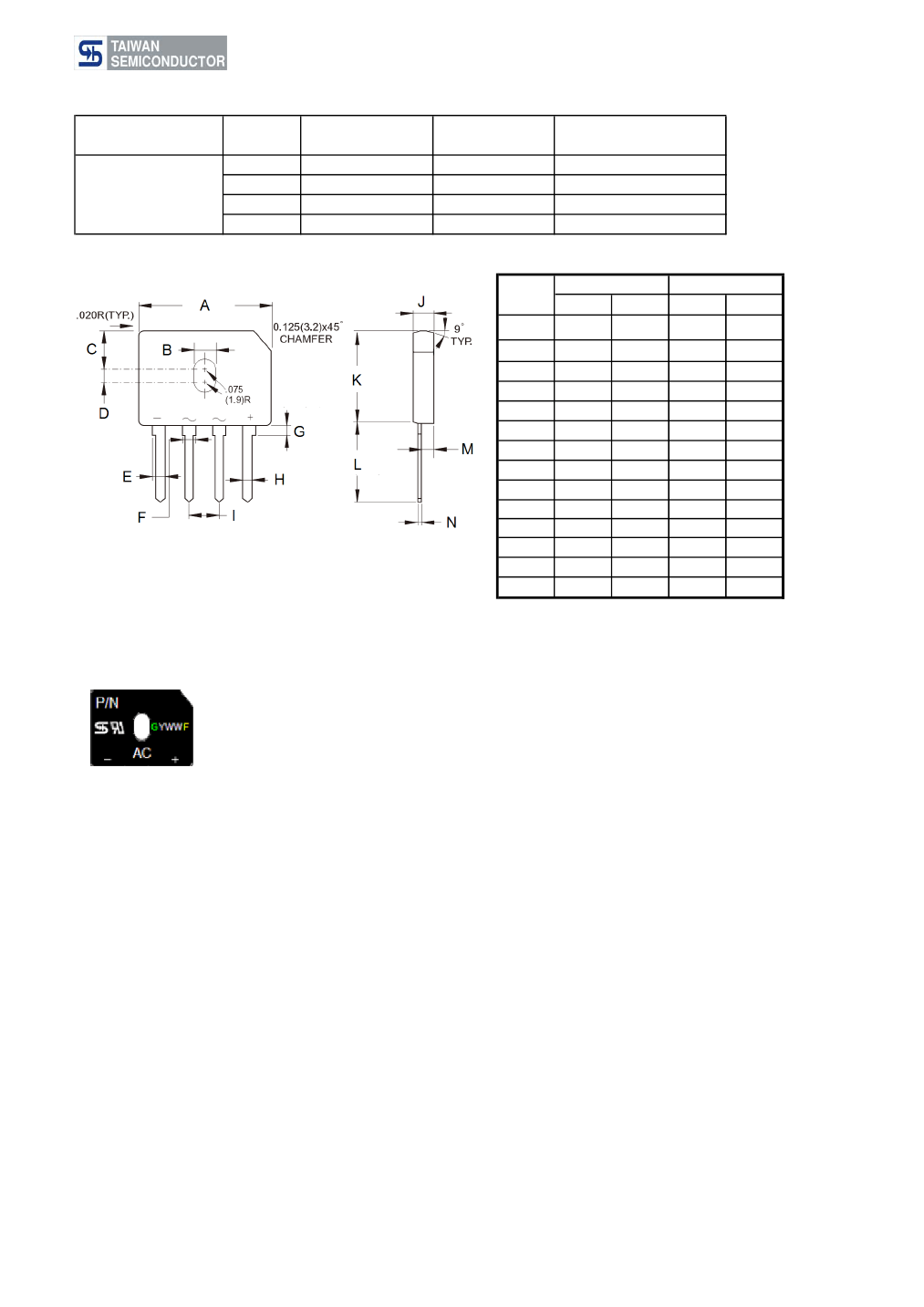

Mechanical Data
Case: Molded plastic body
Terminals: Pure tin plated, lead free, solderable
per MIL-STD-202, Method 208
Weight: 4 grams
Mounting Torque : 5 in. lb. max
Ordering Information (example)
Part No.
GBU801
Package
GBU
Packing
20 / TUBE
Packing code
C2
Packing code
(Green)
C2G
Maximum Ratings and Electrical Characteristics
Rating at 25
℃
ambient temperature unless otherwise specified.
Parameter
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave
Superimposed on Rated Load (JEDEC method)
Rating of fusing ( t<8.3ms)
Maximum Instantaneous Forward Voltage (Note 1)
@4A
@8A
Maximum DC Reverse Current
at Rated DC Block Voltage
@ T
A
=25℃
@ T
A
=125
℃
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
T
V
F
GBU
801
50
35
50
GBU
802
100
70
100
GBU
803
200
140
200
GBU
804
400
280
400
8
200
166
1.0
1.1
5
500
GBU
805
600
420
600
GBU
806
800
560
800
GBU
807
1000
700
1000
Units
V
V
V
A
A
A
2
S
V
uA
uA
I
R
Cj
R
θJA
R
θJC
T
J
T
STG
211
Typical Junction Capacitance per leg (Note 2)
Typical Thermal Resistance
Operating Temperature Range
Storage Temperature Range
Note 1 : Pulse Test with PW=300 usec, 1% Duty Cycle
94
21
2
- 55 to + 150
- 55 to + 150
O
pF
C/W
O
O
C
C
Note 2 : Measured at 1MHz and applied Reverse bias of 4.0V DC
Version:G13

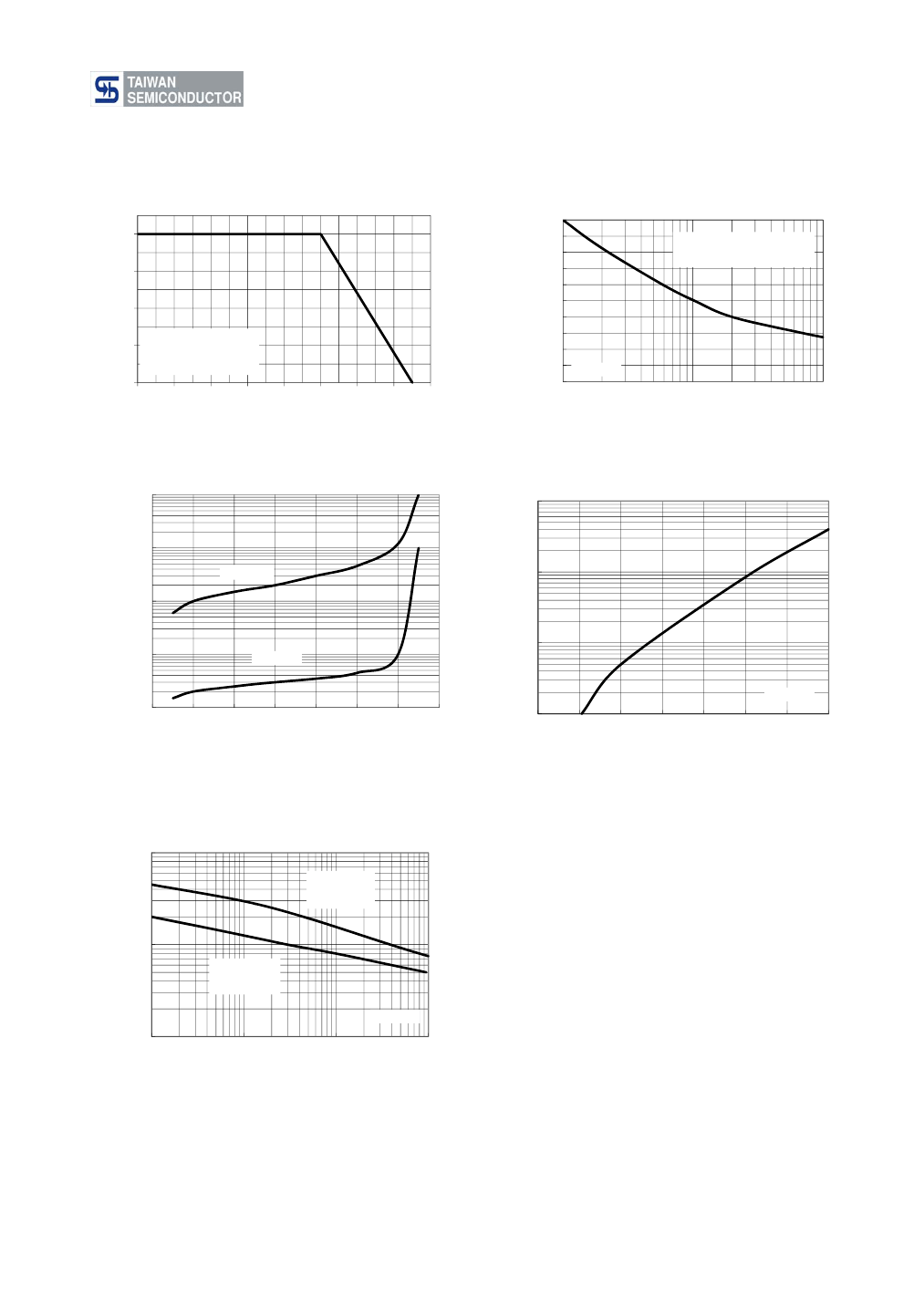

RATINGS AND CHARACTERISTICS CURVES (GBU801 THRU GBU807)
FIG.1- MAXIMUM DERATING CURVE FOR OUTPUT
CURRENT
PEAK FORWARD SURGE CURRENT (A)
200
180
160
140
120
100
80
60
40
20
0
1
TA=25℃
10
NUMBER OF CYCLES AT 60 Hz
100
8.3mS Single Half Sine Wave
(JEDEC Method)
8
AVERAGE FORWARD
A
CURRENT (A)
6
4
2
0
0
20
40
60
80
100
120
140
160
CASE TEMPERATURE (
o
C)
FIG. 2- MAXIMUM FORWARD SURGE CURRENT
PER LEG
RESISTER OR
INDUCTIVE LOAD
WITH HEATSINK
1000
INSTANTANEOUS REVERSE CURRENT (uA)
FIG. 3- TYPICAL REVERSE CHARACTERISTICS PER
LEG
INSTANTANEOUS FORWARD CURRENT (A)
100
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
TA=125℃
10
10
1
1
TA=25℃
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
TA=25℃
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
INSTANTANEOUS FORWARD VOLTAGE (V)
FIG. 5- TYPICAL JUNCTION CAPACITANCE
PER LEG
1000
JUNCTION CAPACITANCE (pF)
A
GBU801-
GBU804
100
GBU805-
GBU807
TA=25℃
10
0.1
1
10
100
REVERSE VOLTAGE (V)
