3022-09A: Description9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; Categorysemiconductor Other integrated circuit (IC); File Size166KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Compare View All

3022-09A Overview

9 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

Preview

Download Datasheet

View All

This document was generated on 04/15/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Description:

0022031091

Active

2.50mm (.098") Pitch Header, Single Row, 7.50mm (.295") Mating Pin Length, 9

Circuits

Documents:

3D Model

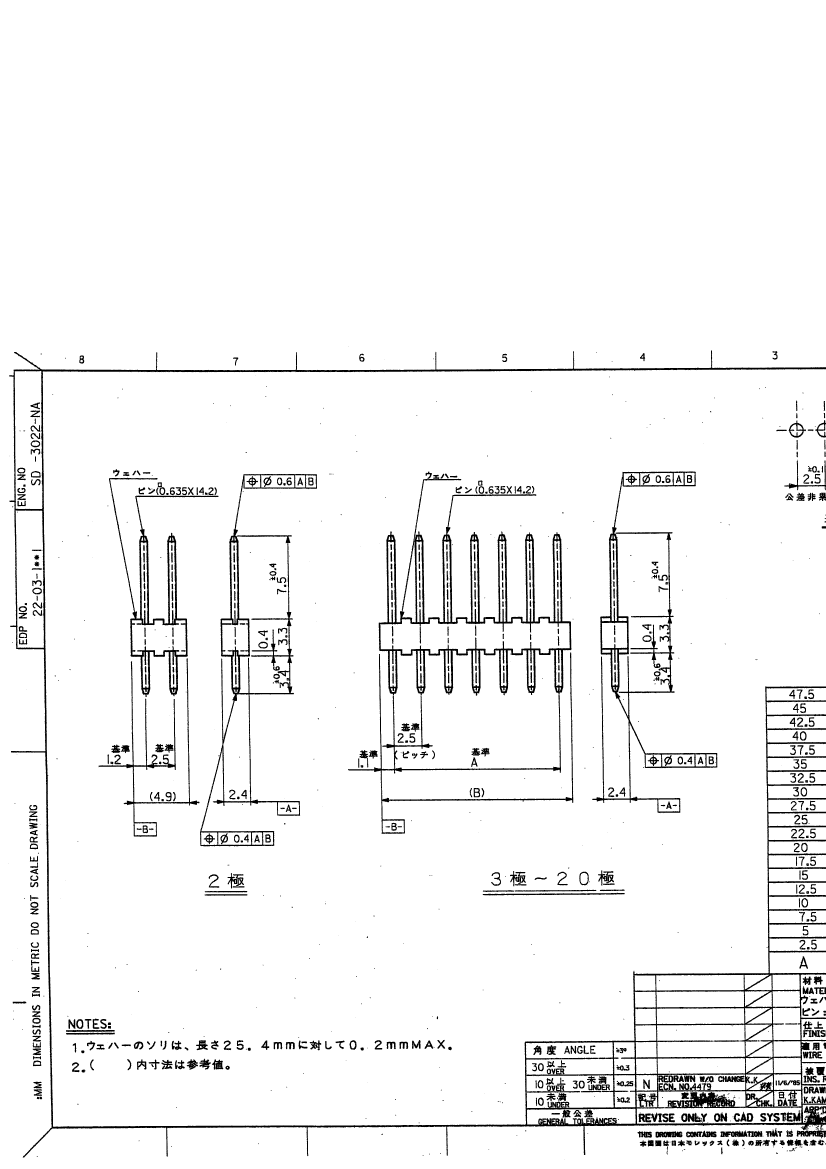

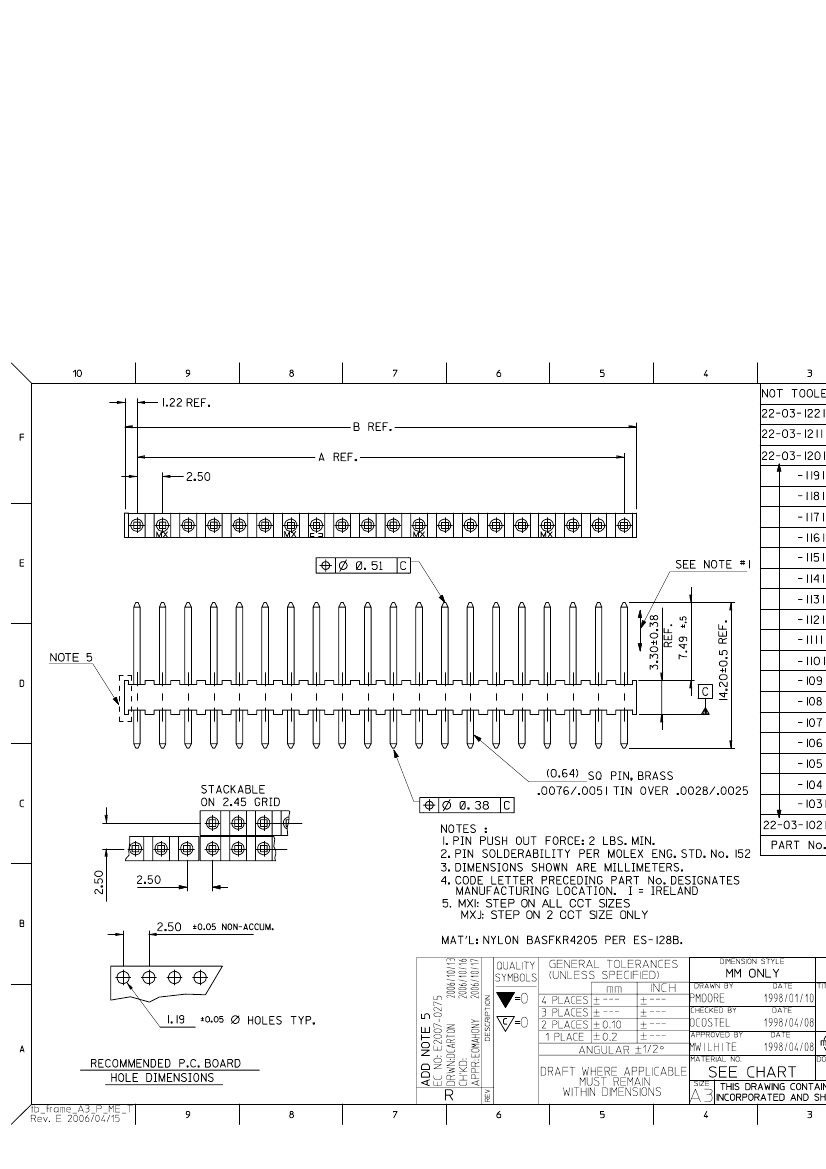

Drawing (PDF)

Product Specification PS-3022-001 (PDF)

Product Specification PS-3022-002 (PDF)

Product Specification PS-99020-0088 (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E29179

General

Product Family

Series

Application

Product Name

PCB Headers

3022

Wire-to-Board

N/A

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Natural (White)

94V-0

None

Brass

Tin

Nylon

Vertical

0.134 In

3.40 mm

None

0.062 In

1.60 mm

Bag

0.098 In

2.50 mm

200

-40°C to +105°C

Through Hole

EU RoHS

ELV and

Complia

REACH S

Not Revie

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Please vi

non-prod

3022Se

Mates

3024 ,

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V
