5229-14APB: Description14 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size127KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

5229-14APB Overview

14 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SOLDER, RECEPTACLE

5229-14APB Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA

Part Number:

Status:

Overview:

Description:

0022153143

Active

2.54mm (.100") Right Angle, Non-ZIF, Low Profile Receptacle, 14 Circuits

Agency Certification

E29179

General

Product Family

Series

Overview

Product Name

FFC/FPC Connectors

5229

ffc_fpc_throughhole

N/A

EU RoHS

ELV and

Complia

REACH S

Contains

Halogen

Status

Not Revi

Need mo

environm

Email pro

For a mu

Complian

Physical

Circuits (Loaded)

Contact Position

Entry Angle

Flammability

Mated Height (in)

Mated Height (mm)

Number of Rows

Orientation

PC Tail Length (in)

PC Tail Length (mm)

PCB Retention

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to PCB

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Bottom

90° Angle

94V-0

0.260 In

6.60 mm

Right Angle

0.142 In

3.60 mm

None

Tray

0.100 In

2.54 mm

-40°C to +105°C

Through Hole

FFC/FPC

Please vi

non-prod

5229Se

Electrical

Current - Maximum per Contact

Voltage - Maximum

0.5A, 1A

200V

Material Info

Old Part Number

5229-14APB

Reference - Drawing Numbers

Packaging Specification

Product Specification

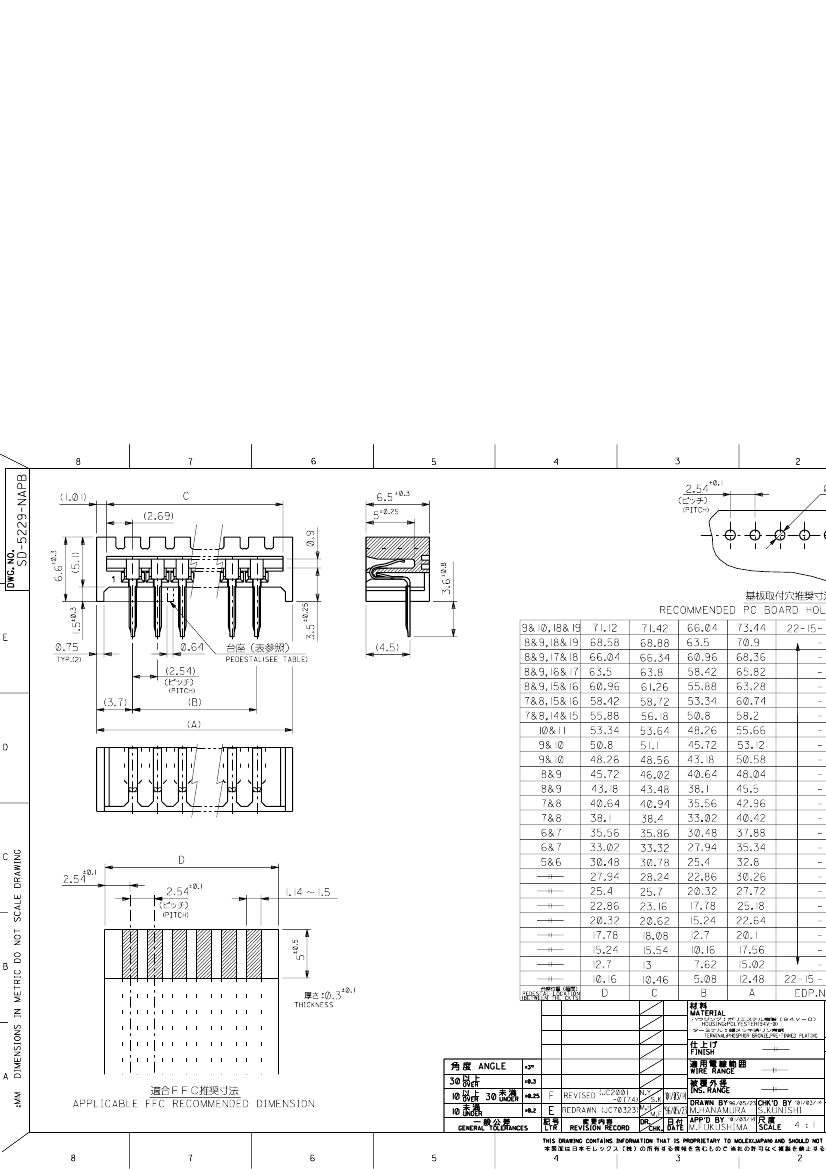

Sales Drawing

SPK-5229-001

PS-5229-003, PS-5229-004, PS-5229-005,

PS-5229-006, PS-5229-007

SD-5229-NAPB

This document was generated on 06/04/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMA
